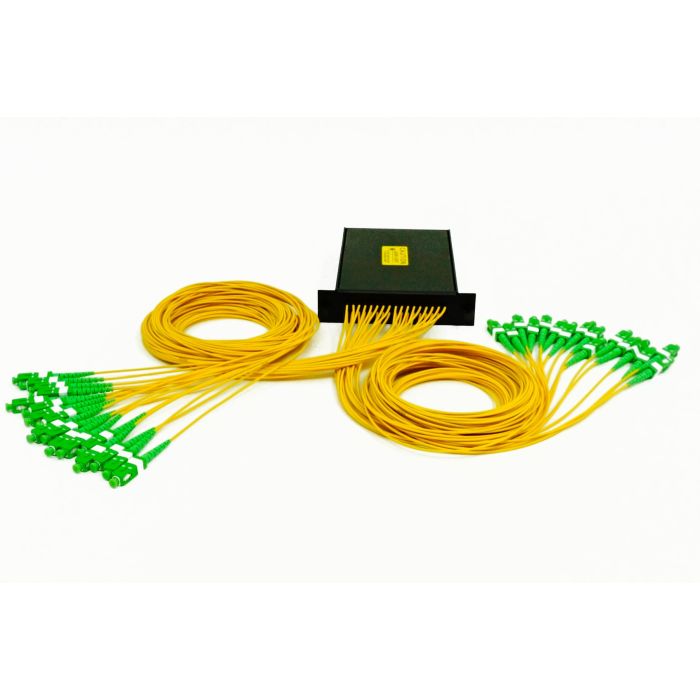

The Optical Splitter Module PLC 1x32 is a high-performance, precision-engineered component designed for efficient signal distribution in fiber optic networks. Utilizing Planar Lightwave Circuit (PLC) technology, this module provides reliable 1x32 splitting functionality with uniform power distribution across all output ports. It is constructed to be compatible with standard LGX mounting footprints, specifically designed for use in space-constrained environments.
This module features 1.6mm jacketed fiber leads with a length of 2 meters, providing ample reach for integration within fiber management systems. The unit is equipped with SC/APC connectors to ensure minimal back reflection, making it ideal for high-bandwidth FTTx, PON, and CATV applications where signal integrity is critical. The robust design is optimized for consistent performance across the 1260nm to 1650nm operating wavelength range.
Key Features
-
PLC Technology
Uses planar lightwave circuit technology for stable and uniform signal splitting across 32 ports. -
SC/APC Connectors
Factory-terminated with SC/APC connectors to minimize back reflection and protect sensitive transmission hardware. -
Standard LGX Footprint
Designed with a 0.875-inch height (1/2 LGX) to fit standard rack-mount management centers. -
Operating Wavelength Range
Supports a wide range from 1260nm to 1650nm, suitable for diverse network deployments. -
Jacketed Leads
Includes 2-meter, 1.6mm jacketed leads for protection and ease of routing within cabinets. -
Application Specific
Optimized for PON, FTTx, and CATV networks requiring precise passive optical splitting.
Applications
- FTTx Networks
- PON (Passive Optical Networks)
- CATV Systems
- Fiber Management Centers
Technical Specifications
| Specification | Value |
|---|---|
| Split Ratio | 1x32 |
| Technology | PLC (Planar Lightwave Circuit) |
| Operating Wavelength | 1260nm - 1650nm |
| Connector Type | SC/APC |
| Lead Length | 2 Meters |
| Cable Diameter | 1.6mm |
| Footprint | 1/2 LGX (0.875" H) |
Frequently Asked Questions
What is the purpose of the SC/APC connector?
The SC/APC (Angled Physical Contact) connector features an 8-degree angle on the ferrule, which significantly reduces back reflection (return loss) to prevent damage to light sources and optimize network performance.
Is this module compatible with all fiber cabinets?
It is designed for the 1/2 LGX footprint and is specifically intended for use in PON cabinets and the XL Zeus Fiber Management Center.
What wavelength range is supported?
The splitter operates across the 1260nm to 1650nm range, covering standard singlemode operating windows.
What does the 1/2 LGX footprint mean?
It refers to the physical size of the module, indicating it occupies half the height of a standard LGX slot, measuring approximately 0.875 inches in height.
Are test reports provided?
Yes, the manufacturer provides test reports for measurements taken at 1310nm and 1550nm.
