Overview

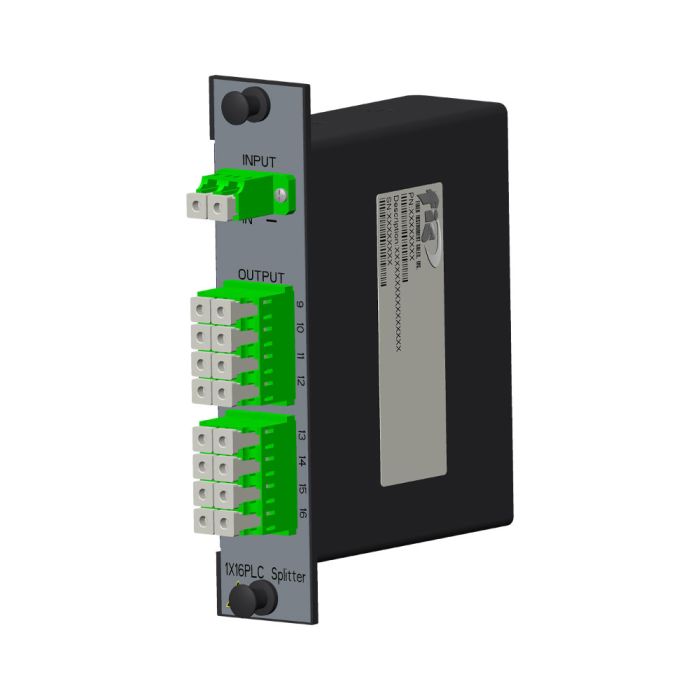

The Optical Splitter Module is a high-density Planar Lightwave Circuit (PLC) component designed for efficient signal distribution in fiber optic networks. Engineered to fit standard LGX footprints, this module allows for seamless integration into existing rack-mount or wall-mount enclosure systems.
Equipped with LC/APC connector adapters, this 1x16 splitter provides reliable performance for passive optical network (PON) architectures. Its compact design ensures easy installation in central offices, data centers, or local exchange environments, facilitating clean cable management and scalable network expansion.
Key Features
-
LGX Compatibility
Standardized footprint ensures compatibility with industry-standard LGX rack and wall mount enclosures. -
1x16 Split Ratio
Provides 16 output ports from a single input, ideal for high-density subscriber distribution. -
PLC Technology
Planar Lightwave Circuit technology provides uniform power distribution across all output ports. -
LC/APC Connectivity
Pre-loaded with LC/APC adapters for low-reflectance, high-precision fiber connections. -
Wide Wavelength Range
Supports operation across a broad spectral window from 1260nm to 1650nm. -
1RU Form Factor
Compact module design helps conserve valuable rack space in dense environments.
Applications
- Passive Optical Networks (PON)
- FTTH (Fiber to the Home) Distribution
- Data Center Fiber Interconnects
- Local Area Network (LAN) Signal Splitting
Technical Specifications
| Specification | Value |
|---|---|
| Model | 1x16 LGX Module |
| Part Number | Z1PLM1161SLLA |
| Split Ratio | 1x16 |
| Connector Type | LC/APC |
| Operating Wavelength | 1260nm - 1650nm |
| Package Style | Short LGX Footprint (1HU/0.875" high) |
Frequently Asked Questions
What is an LGX footprint?
LGX refers to a standard industry physical dimension for fiber modules, ensuring they fit interchangeably in most standard rack-mount and wall-mount enclosures.
What does 1x16 mean?
This indicates the module takes one input fiber signal and splits it into sixteen individual output fiber signals.
Is this module suitable for outdoor use?
This module is designed for standard interior enclosures. Ensure your wall or rack enclosure provides the necessary environmental protection for your specific deployment.
What does LC/APC indicate?
It indicates the module uses LC-style connectors with an Angled Physical Contact (APC) polish, which is commonly used to minimize back-reflection in sensitive fiber networks.
Can this be mounted in a standard 19-inch rack?
Yes, when installed within a compatible LGX-style rack-mount enclosure or shelf, this module can be mounted in standard 19-inch rack systems.
