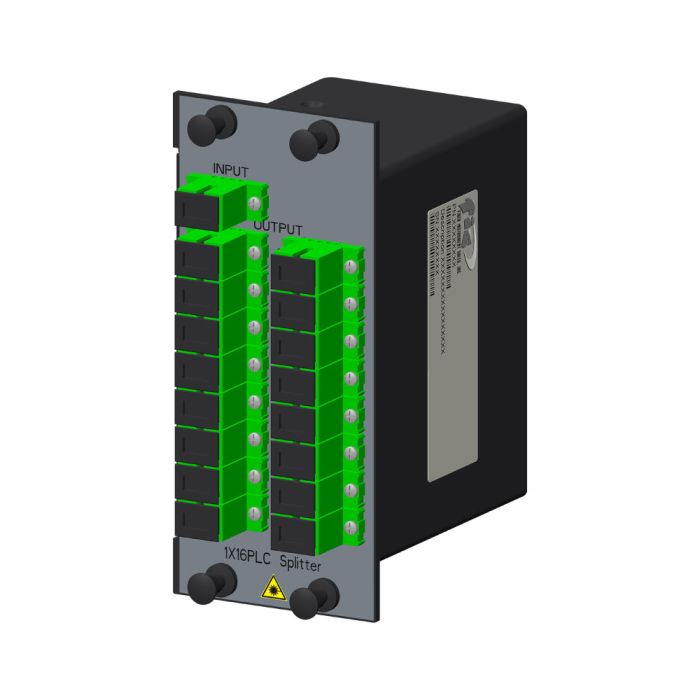

Optical Splitter Module PLC SC/APC Connector Adapters 1x16 1RU Short LGX Package

Overview

The Optical Splitter Module is a professional-grade PLC (Planar Lightwave Circuit) device designed for high-density fiber management. It provides a reliable solution for splitting optical signals in FTTH and passive optical network (PON) architectures.

This module features a compact, short LGX footprint, allowing for flexible integration into standard LGX-compatible rack mounts or wall-mount enclosures. Constructed for durability and precision, it ensures stable performance across a wide operating wavelength range, making it ideal for data center and telecommunications infrastructure environments.

Key Features

• PLC Technology
  Utilizes Planar Lightwave Circuit technology for uniform signal distribution and consistent optical performance.
• Compact LGX Form Factor
  Standardized design ensures compatibility with existing LGX rack and wall-mount enclosures, simplifying field installation.
• Short-Body Design
  Optimized footprint saves valuable rack space in high-density installations.
• SC/APC Connectivity
  Integrated SC/APC adapters provide low-reflectance, high-precision connections suitable for demanding fiber networks.
• Broad Wavelength Support
  Supports operation across the 1260nm to 1650nm range for versatile network deployment.
• High Split Ratio
  1x16 configuration allows for efficient scaling of subscriber-side connections in PON systems.

Applications

• Fiber-to-the-Home (FTTH) networks
• Passive Optical Networks (PON)
• Data center fiber management systems
• Central office and headend equipment
• Cable television (CATV) distribution

Technical Specifications

Frequently Asked Questions

What does the LGX package indicate?
The LGX package is a standard industry footprint that ensures the module can be snapped into compatible rack or wall-mount enclosures for organized fiber management.

What is the primary function of this module?
It is a passive optical splitter used to split one incoming fiber signal into sixteen outgoing signals.

Is this compatible with my existing rack?
This module uses the industry-standard LGX footprint, which is compatible with most standard LGX rack mount or wall mount enclosures.

What kind of fiber connectors does this use?
This specific model is equipped with SC/APC connector adapters.

Can this be used in outdoor environments?
This unit is designed for use within standard indoor enclosures. Consult the documentation for specific environmental operating requirements.
