Overview

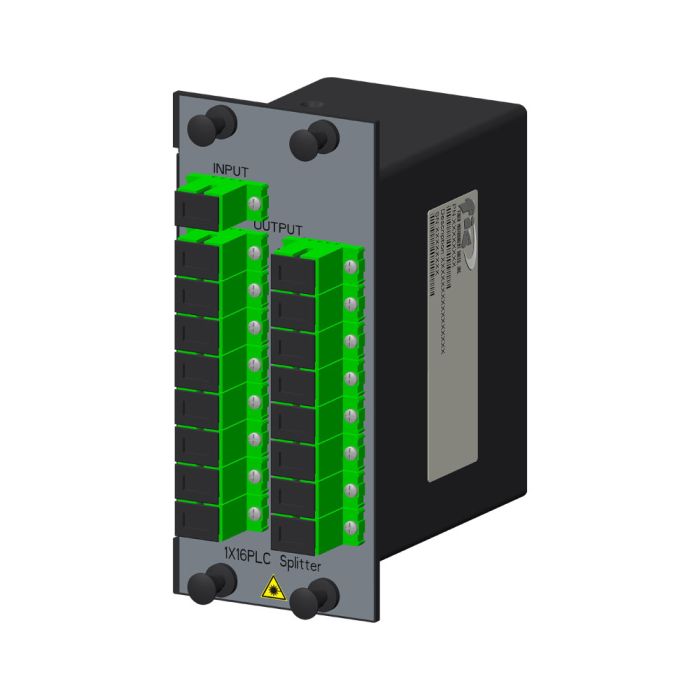

The Optical Splitter Module is a high-performance PLC (Planar Lightwave Circuit) device designed for efficient signal distribution in fiber optic networks. This module is housed in a compact 1HU short LGX footprint, making it ideal for high-density environments where rack space is at a premium.
Engineered for reliability, this splitter features SC/APC connector adapters to ensure minimal return loss and high signal integrity. It is specifically designed to fit standard LGX-compatible enclosures, facilitating quick and professional integration into data center, central office, and FTTX infrastructure.
Key Features
-
PLC Technology
Utilizes Planar Lightwave Circuit technology for uniform signal splitting across all output ports. -
1HU Compact LGX Design
Optimizes rack space utilization in high-density fiber management systems. -
SC/APC Connectivity
Features angle-polished connectors to reduce back-reflections and enhance system performance. -
Broad Operating Wavelength
Supports a wide range of wavelengths from 1260nm to 1650nm for versatile network application. -
Robust Construction
Designed for durable mounting in standard LGX-compatible distribution frames. -
Scalable Architecture
Provides a reliable, modular approach for expanding fiber distribution points.
Applications
- FTTX (Fiber to the X) Networks
- Data Center Interconnects
- PON (Passive Optical Network) Architectures
- Local Area Networks (LAN)
- Central Office Distribution
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | Z1PLM141SLSA |
| Split Ratio | 1x4 |
| Connector Type | SC/APC |
| Form Factor | 1HU (0.875" high) Short LGX |
| Operating Wavelength | 1260nm – 1650nm |
Frequently Asked Questions
What is an LGX package?
LGX refers to a standard, modular form factor used for housing fiber optic components like splitters and cassettes, ensuring compatibility with standard rack-mount panels.
Can this be used in 1RU rack mounts?
Yes, this module is compatible with 1RU or 1HU LGX mounting systems.
Does this module come pre-connectorized?
Yes, it includes integrated SC/APC connector adapters for immediate installation.
What does the 1x4 split ratio mean?
It indicates one input fiber is split into four distinct output fibers.
What wavelength range does this cover?
This device operates within the 1260nm to 1650nm range, covering standard singlemode operating windows.
