Overview

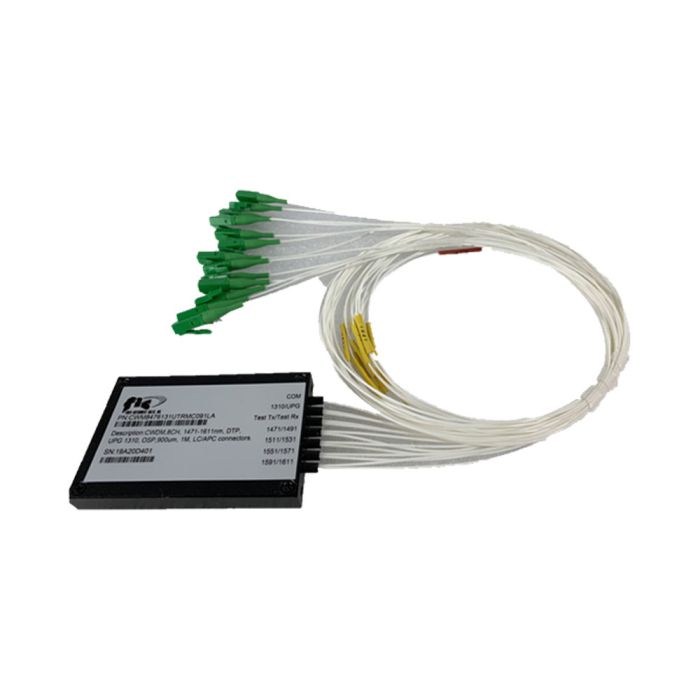

The Optical Splitter in an OSP (Outside Plant) cassette is designed to address the environmental challenges inherent in external network deployments. This component provides robust fiber protection, enabling rapid installation in hardened environments while maximizing space efficiency within field cabinets and enclosures.
Engineered for reliability, this 1x8 splitter utilizes SC/APC connectors to ensure low-reflectance performance in singlemode applications. Its compact cassette design facilitates organized fiber management, making it a suitable choice for FTTx and other outside plant distribution networks.
Key Features
-
OSP Hardened Design
Engineered with an enhanced protective housing to withstand harsh outdoor environmental conditions and facilitate quick field deployment. -
High-Density Form Factor
Optimized cassette dimensions (100mm x 80mm x 10mm) maximize available space in cabinets, pedestals, and closures. -
Singlemode Performance
Supports a broad operating wavelength range from 1260nm to 1650nm for versatile network compatibility. -
SC/APC Connectivity
Factory-terminated with SC/APC connectors to provide high return loss and minimize signal degradation. -
Integrated Fiber Management
The cassette structure allows for organized cable routing, reducing the risk of fiber micro-bends during installation. -
Scalable Configuration
Provides a reliable 1x8 split ratio, ideal for splitting optical signals in PON architectures.
Applications
- FTTx Networks
- PON (Passive Optical Network) distribution
- Outside plant cabinet installations
- Telecommunications infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | Z1PLCM18OSP20A2SA1.5 |
| Split Ratio | 1x8 |
| Connector Type | SC/APC |
| Operating Wavelength | 1260nm - 1650nm |
| Package Dimensions | 100mm L x 80mm W x 10mm H |
Frequently Asked Questions
What is an OSP package?
An OSP (Outside Plant) package refers to a housing designed to protect optical components from moisture, temperature fluctuations, and mechanical stress in outdoor environments.
Are these splitters suitable for indoor use?
While designed for outside plant cabinets, they can be utilized in indoor environments where a robust, high-protection enclosure is required.
What type of fiber does this splitter use?
This device is designed for use with singlemode fiber systems.
Can I use this with LC connectors?
This specific part number comes pre-terminated with SC/APC connectors.
What is the primary function of this product?
It is used to split a single incoming optical signal into eight separate output signals for distribution in a fiber network.
