Overview

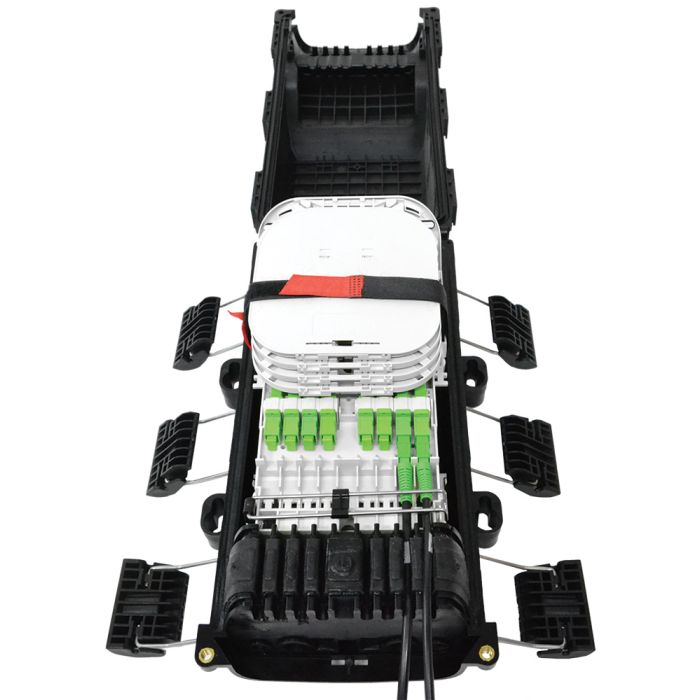

The OSP Distribution 8 Port Enclosure is a ruggedized solution engineered for FTTx deployment environments. This enclosure is designed to manage distribution and drop cable connectivity, serving as a centralized point for fiber management in outside plant applications.
The unit features a plug-and-play design that accommodates up to 8 pre-terminated drop cables and supports up to 60 core splices. Its versatile construction ensures secure cable routing and protection for essential optical connections in demanding outdoor conditions.
Key Features
-
High Capacity Splice Management
Includes five 12-fiber splice trays, supporting a total capacity of up to 60 core splices. -
Pre-Terminated Drop Ports
Equipped with 8 dedicated ports for streamlined drop cable installation and management. -
Flexible Feeder Input
Features 4 integrated feeder ports (5mm-10mm) to accommodate various cable diameters. -
Robust Enclosure Design
Engineered for FTTx outside plant environments, providing necessary protection for fiber infrastructure. -
Pre-Loaded Adapters
Comes configured with 8 SC/APC adapters for immediate deployment and reduced installation time. -
Hardware Included
Supplied with essential mounting hardware for efficient field installation.
Applications
- Fiber-to-the-x (FTTx) deployments
- Outside Plant (OSP) distribution networks
- Fiber drop cable management
- Splice and termination point integration
Package Contents
- (1) 8 Port Distribution Enclosure
- (8) SC/APC Adapters
- (5) 12-Fiber Splice Trays
- Mounting Hardware
Technical Specifications
| Specification | Value |
|---|---|
| Port Count | 8 Ports |
| Connector Type | SC/APC |
| Splice Capacity | Up to 60 Cores |
| Splice Trays | 5 x 12-Fiber |
| Feeder Ports | 4 Ports (5mm-10mm) |
| Dimensions | 13.5" (H) x 7.75" (W) x 5.0" (D) |
Frequently Asked Questions
What is the maximum splice capacity?
The enclosure supports up to 60 core splices using the included five 12-fiber trays.
Does this include adapters?
Yes, it comes pre-loaded with 8 SC/APC adapters.
What size cables can the feeder ports accommodate?
The 4 feeder ports are designed for cables with diameters between 5mm and 10mm.
Is mounting hardware included?
Yes, all necessary mounting hardware is included with the enclosure.
What is the primary application for this enclosure?
This enclosure is designed for FTTx outside plant distribution and drop cable management.
