OTDR-3501 - Optical Time Domain Reflectometer - includes VFL 1mW, 3.5" LCD TFT, internal storage memory and USB connectivity
OTDR-3501 - Optical Time Domain Reflectometer - includes VFL 1mW, 3.5" LCD TFT, internal storage memory and USB connectivity
The OTDR-3501 Optical Time Domain Reflectometer is a powerful fiber optic testing tool that includes also a Visual Fault Locator(VFL). The OTDR-3501 has a 3.5" TFT LCD display and features a USB interface that allows 24/7 measuring with a help of a PC. It also has internal memory and a TF card for extra storage on measurements that can extend measurement storage for long periods of time.

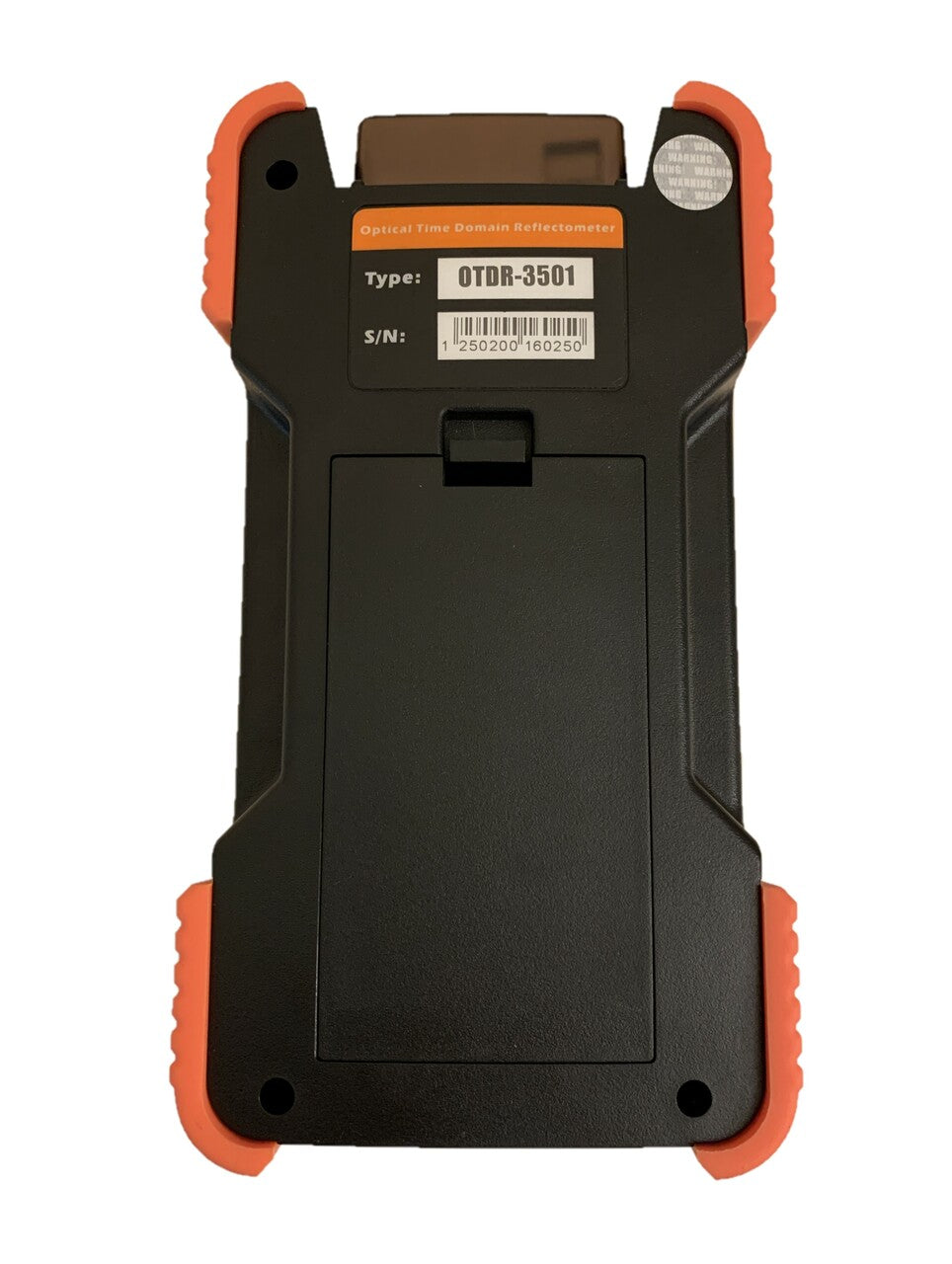

OTDR-3501 has an orange rubber protective case and the package includes a USB to PC connectivity cable. The OTDR unit has its own internal (and replaceable) Li-Po rechargeable battery. The OTDR-3501 is a complete tool that allows measuring active fibers efficiently, being an indispensable tool for any fiber professional user.
Features
- Built-in VFL functions extra to the main OTDR functions
- 3.5" color TFT LCD display
- One button test
- Facile operating interface
- USB connection for PC data retrieval and battery recharging
- Handheld portable design with rechargeable LiPo battery
Technical Specifications
| Model | OTDR-3501 |
| Wavelength | 1310nm/1550nm |
| Dynamic Range | 28/26dB |
| OTDR Connector | SC/UPC and FC/UPC or customized |
| Pulse Width | 5ns to 10 microseconds |
| Measuring Time | 5 to 180 seconds |
| Attenuation Dead Zone | 5 meters |
| Event Dead Zone | 1.5 meters |
| LCD | 3.5" TFT LCD display |
| VFL Function | 1mW |
| Storage | Internal memory and optional TF card |
| Data Interface | Micro USB 2.0 |
| Battery | 3.7V @ 2400mAh Lithium Polymer battery |
| Size | 197mm * 107mm * 67mm |
| Weight | 750g |
| Storage Temperature | -20~+60 Celsius, humidity<90% non-condensing |
| Operating Temperature | -10~+50 Celsius, humidity<90% non-condensing |
| Warranty | 2 years |
