Overview
The OWL IS-KIT-M Installer Series Auto-Wavelength Test Kit is a professional-grade testing solution designed to certify multimode fiber optic links against industry cabling standards. This kit provides technicians with the essential tools required to perform accurate loss measurements in the field, ensuring compliance with network installation requirements.
The system includes the Fiber OWL 4 optical power meter and the WaveSource MM light source. With automatic wavelength recognition, built-in loss wizards, and USB connectivity for reporting, the kit streamlines the documentation process for network operators and contractors. The equipment is designed for reliability in typical installation environments and is 10-Gig Ethernet ready.
Key Features
-
Automatic Wavelength Recognition
The power meter automatically identifies the wavelength being transmitted, reducing manual setup errors. -
Large Data Storage
Stores up to 1000 data points for efficient field testing and later analysis. -
OWL Reporter Software
Included software simplifies the management and certification of test data. -
InGaAs Photodetector
High-sensitivity detector ensures accurate measurements across varying light levels. -
Multimode Compatibility
Supports testing at 850nm and 1300nm wavelengths suitable for standard multimode cabling. -

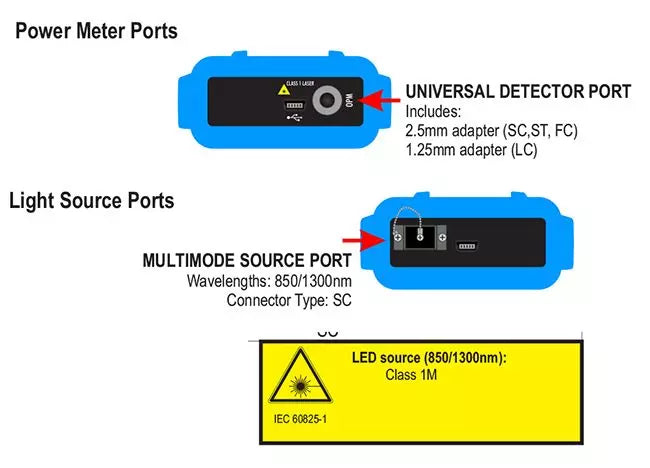

Versatile Connector Support
Includes 2.5mm and 1.25mm universal adapter ports for ST, SC, FC, LC, and MU connectivity. -
Long Battery Life
Operates for up to 100 hours on a single 9V battery for extended field usage. -
NIST Traceability
Equipment is NIST traceable to ensure compliance with quality assurance standards.
Applications
- Fiber optic network certification
- Multimode link loss testing
- 10-Gig Ethernet installation verification
- Field data collection and management

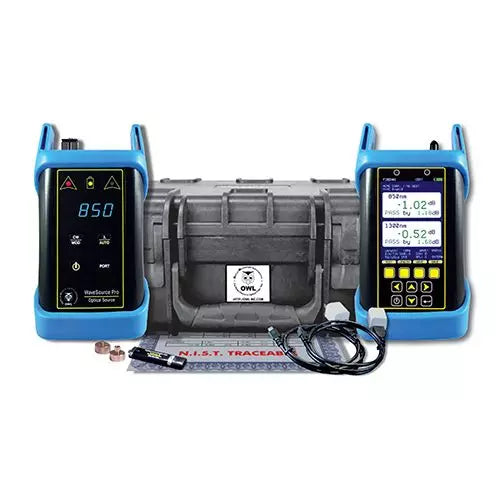

Package Contents
- Fiber OWL 4 Optical Power Meter
- WaveSource MM Light Source
- OWL Reporter Software
- Download cable
- 9V Batteries
- NIST Certificate
- Carrying case
- Protective rubber boots
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | OWL |
| Model | IS-KIT-M |
| Operating Wavelengths | 850nm, 1300nm (Source) |
| Measurement Range | +5 to -70 dBm |
| Measurement Accuracy | +/- 0.15 dB |
| Resolution | 0.01 dB |
| Connector Type | SC (Light Source) |
| Data Storage | 1000 data points |
| Battery | 9V (Included) |
Frequently Asked Questions
Is this kit NIST traceable?
Yes, the equipment included in the IS-KIT-M is NIST traceable.
Can I use this for 10-Gig Ethernet?
Yes, the kit is 10-Gig Ethernet ready.
What connectors are supported by the power meter?
The meter features a 2.5mm universal adapter for ST, SC, and FC, plus a 1.25mm adapter for LC and MU connectors.
How many test results can the meter store?
The unit can store up to 1000 individual data points.
Does it include software for reporting?
Yes, the kit includes OWL Reporter software for managing and documenting test results.
