Overview
The OWL IS-KIT-Q Installer Series is a comprehensive fiber optic test kit designed for the certification of both multimode and single mode networks. This kit provides technicians with the necessary tools to measure, analyze, and manage fiber link performance in the field, ensuring compliance with established cabling standards.
The kit features the Fiber OWL 4 (FO-4) optical power meter and the WaveSource quad light source. Engineered for durability and ease of use, the system supports automatic wavelength recognition and includes a built-in loss wizard. With the included USB interface and reporting software, users can efficiently document test results for professional network certification.
Key Features
-
Automatic Wavelength Recognition
The system detects the wavelength transmitted by the source, reducing the potential for manual testing errors. -
Fiber OWL 4 Power Meter
Includes a high-precision InGaAs photodetector for accurate power measurements across multiple wavelengths. -
10-Gig Ethernet Ready
The test set is compatible with high-speed 10GbE network certification requirements. -
Large Data Storage
Internal memory allows for the storage of up to 1000 data points for post-installation reporting. -
USB Connectivity
Features a USB interface for data transfer to a PC, simplifying documentation via the included reporting software. -
NIST Traceable
All equipment is NIST traceable to ensure measurement accuracy and compliance with professional standards. -
Portable Design
The kit includes a durable carrying case and protective rubber boots for field-ready protection.
Applications
- Multimode network certification
- Single mode network certification
- Fiber optic link troubleshooting
- Data center cabling verification

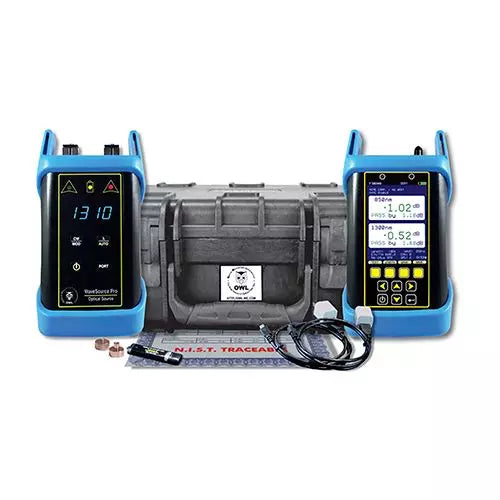

Package Contents
- Fiber OWL 4 optical power meter
- WaveSource quad light source
- OWL Reporter software
- Download cable
- 9-volt batteries
- NIST certificate of calibration
- Carrying case
- Protective rubber boots
Technical Specifications
| Specification | Value |
|---|---|
| Model | IS-KIT-Q |
| Fiber Type | Multimode / Single Mode |
| Operating Wavelengths | 850, 980, 1300, 1310, 1490, 1550, 1625 nm |
| Measurement Range | +5 to -70 dBm |
| Measurement Accuracy | +/- 0.15 dB |
| Detector Type | InGaAs |

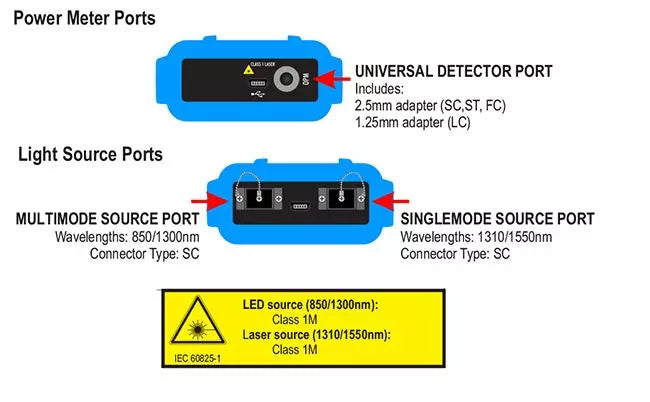

| Connector Type | SC (Power Meter includes 2.5mm and 1.25mm universal adapters) |
| Battery | 9V (up to 100 hours for Power Meter) |
Frequently Asked Questions
Is this kit NIST traceable?
Yes, the included equipment is NIST traceable for accurate calibration.
Can this kit be used for 10-Gig Ethernet?
Yes, the kit is 10-Gig Ethernet ready.
What is the storage capacity of the power meter?
The unit stores up to 1000 data points.
Does it include software?
Yes, it includes the OWL Reporter software for managing measurements.
What batteries does the kit use?
The instruments operate on standard 9V batteries.
