Overview
The OWL Silicon ZOOM 2 / Dual 850 Multimode Test Kit is designed to perform essential attenuation testing on multimode fiber optic networks. This kit provides an economical, user-friendly solution for LAN managers and installers needing to verify fiber performance and integrity.
The system consists of the ZOOM 2 (Zeroed Output Optical Meter) and a dedicated 850nm LED light source. The meter features a clear LCD display for monitoring power in dBm, dB, or uW, with a 0.01dB resolution. The hardware is configured with 2.5mm universal ports and ST connectors, making it compatible with common multimode fiber infrastructure.
Key Features
-
Broad Measurement Range
Features a power measurement range of +5 to -60 dBm to cover diverse signal levels. -
Precision Testing
Delivers an accuracy of +/- 0.15 dB for the power meter to ensure test results are reliable. -
Universal Connector Port
Equipped with a 2.5mm universal interface for ST-style connections. -
High Resolution Display
LCD screen provides a 0.01dB resolution for detailed loss characterization. -
Extended Battery Life
The power meter offers up to 250 hours of battery life to support long field sessions. -
NIST Traceable
The equipment is NIST traceable for compliance with standard testing requirements.
Applications
- Multimode fiber network attenuation testing
- LAN installation verification
- Fiber optic maintenance and troubleshooting

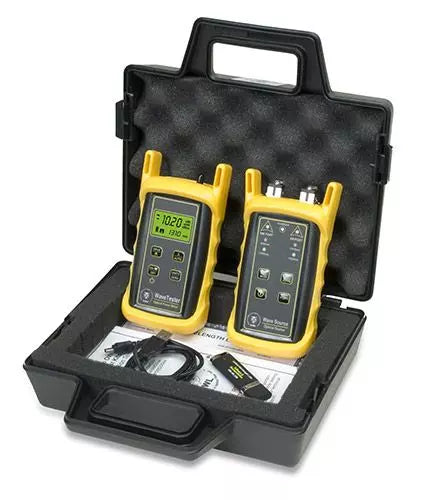

Package Contents
- Optical power meter
- 850nm light source
- Carrying case
- Protective rubber boots
- 9-volt batteries
- NIST certificate
- Product manuals
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | OWL |
| Model | KIT-Z2SD285ST |
| Connector Type | ST (2.5mm universal port) |
| Measurement Range | +5 to -60 dBm |
| Power Meter Accuracy | +/- 0.15 dB |
| Resolution | 0.01 dB |
| Light Source Wavelength | 850 nm |
| Light Source Output Power | -20 dBm |
| Power Meter Battery Life | 250 hours |
| Light Source Battery Life | 40 hours |
Frequently Asked Questions
What is the primary use for this kit?
This kit is optimized for performing attenuation testing on multimode LAN fiber optic networks.
What connectors does the unit use?
The unit is configured with a 2.5mm universal port suitable for ST connections.
Is the equipment NIST traceable?
Yes, the kit includes a NIST traceable certificate.
What is the measurement resolution?
The power meter displays readings with a 0.01dB resolution.
What batteries are required?
The units operate on standard 9-volt batteries, which are included in the kit.
