Overview
The OWL KIT-WT/WS-MDSDST WaveTester / WaveSource Quad Test Kit is a professional-grade solution designed for certifying fiber optic links in both multimode and single-mode networks. This comprehensive kit provides technicians with the necessary instruments to perform accurate optical loss measurements in a wide variety of installation environments.

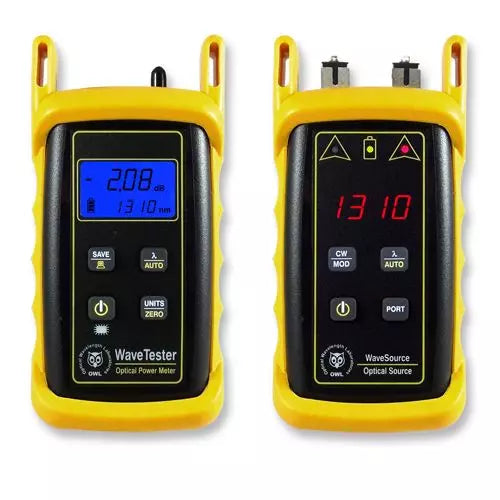

The kit features the WaveTester optical power meter and the WaveSource Quad light source. These units work in tandem to provide temperature-stabilized wavelength outputs and precise power measurements, ensuring reliable link loss certification. With the included software, technicians can easily generate reports by downloading stored data to a PC.
Key Features
-
Multimode and Single-mode Capability
Features a quad-wavelength design supporting 850/1300nm (multimode) and 1310/1550nm (single-mode) testing. -
Internal Data Storage
Stores up to 200 fiber runs and reference values, allowing for efficient field documentation. -
Temperature-Stabilized Output
The WaveSource light source utilizes temperature-stabilized wavelengths for consistent, accurate testing results. -
PC Connectivity
Includes OWL Reporter software and a download cable for seamless data transfer and professional report generation. -
Broad Measurement Range
Provides a dynamic measurement range between +5 and -60 dBm, suitable for various link types. -
High Precision
Offers 0.01 dB resolution and an accuracy of +/- 0.15 dB for rigorous link certification. -
Extended Battery Life
Capable of up to 250 hours of operation from a single 9V battery for long-term field use.
Applications
- Multimode fiber network certification
- Single-mode fiber network certification
- Optical loss measurement for fiber optic links
- Data center and telecommunications infrastructure verification

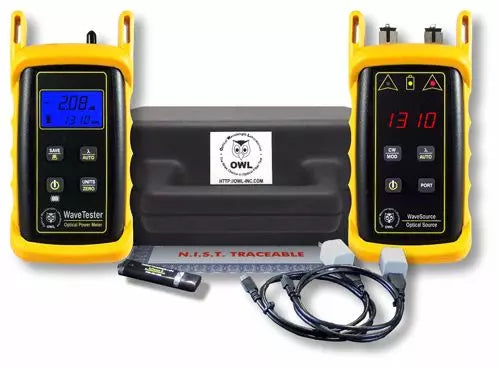

Package Contents
- Wavetester Optical Power Meter
- Wavesource Quad Light Source (ST connector configuration)
- OWL Reporter Software
- Product Manuals
- Download Cable
- 9V Batteries
- NIST Certificate
- Carrying Case
- Protective Rubber Boots
Technical Specifications
| Specification | Value |
|---|---|
| Model | KIT-WT/WS-MDSDST |
| Connector Type | ST |
| Multimode Wavelengths | 850 nm, 1300 nm |
| Single-mode Wavelengths | 1310 nm, 1550 nm |
| Measurement Range | +5 to -60 dBm |
| Resolution | 0.01 dB |
| Measurement Accuracy | +/- 0.15 dB |
| Data Storage Capacity | 200 data points |
| Battery Type | 9V |
| Battery Life (OPM) | Up to 250 hours |
| Battery Life (Light Source) | Up to 30 hours |
Frequently Asked Questions
What fiber types can this kit test?
This kit is designed for both multimode and single-mode fiber installations.
How many data points can the WaveTester store?
The WaveTester can store up to 200 data points for future retrieval and report generation.
Is the light source temperature-stabilized?
Yes, the WaveSource Quad features temperature-stabilized wavelengths to ensure accurate, reliable measurements.
Does this kit include software?
Yes, it includes the OWL Reporter software for downloading test data to a PC.
What is the power accuracy of the system?
The measurement accuracy is +/- 0.15 dB.
