Overview

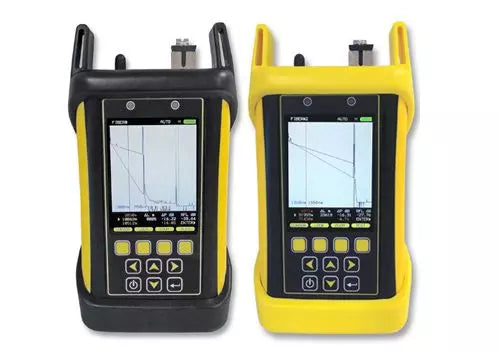

The OWL WTO2-Q OWLTrek II is a comprehensive quad-wavelength OTDR kit designed for troubleshooting and restoration tasks on both single mode and multimode optical fiber networks. This compact, pocket-sized solution combines a multimode OTDR and a single mode OTDR to provide versatile testing capabilities for data centers and campus environments.
Each unit features a 2.8" color LCD display with automatic screen rotation and integrated software for advanced data analysis. The system simplifies network diagnostics through Automatic Event Location programming, which generates detailed event tables including event type, reflectance, and loss data, along with auto-zoom functionality for precise inspection.
Built for field mobility, the kit includes a high-capacity Lithium Polymer battery supporting up to 20 hours of continuous operation. Additionally, each device integrates a 650nm Visual Fault Locator with a 2.5mm universal port to assist in rapid fiber identification and break detection.
Key Features
-
Quad-Wavelength Operation
Supports 850/1300nm (multimode) and 1310/1550nm (single mode) testing for comprehensive network versatility. -
Automatic Event Location
Automatically marks events and creates a data table, reducing manual analysis time for field technicians. -
High-Resolution Display
Equipped with a 2.8" color LCD featuring auto-screen rotation for comfortable viewing in various orientations. -
Visual Fault Locator (VFL)
Integrated 650nm VFL with a universal 2.5mm port for efficient visual break detection. -
Long Battery Life
Lithium Polymer battery provides up to 20 hours of continuous field use per charge. -
Extensive Dynamic Range
Multimode dynamic range of 23/25dB and single mode dynamic range of 25/23dB. -
Data Analysis Capability
Maps up to 64,000 data points, with traces downloadable to a PC via OWLView software. -
Dead Zone Performance
Features a 2-meter event dead zone and 7-meter attenuation dead zone for increased testing resolution.
Applications
- Troubleshooting single mode fiber networks
- Testing multimode optical fiber infrastructure
- Network restoration and maintenance
- Fiber optic installation verification
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | OWL Optical Wavelength |
| Model | WTO2-Q |
| Wavelengths | 850/1300/1310/1550nm |
| Connector Type | LC/UPC |
| Display | 2.8" Color LCD with auto-rotation |
| Multimode Range | 12 miles / 20 miles (system dependent) |
| Single Mode Range | 80 miles |
| Event Dead Zone | 2 meters |
| Attenuation Dead Zone | 7 meters |
| Battery | Lithium Polymer (up to 20 hours) |
| VFL Wavelength | 650nm |
| VFL Connector | 2.5mm Universal |
Frequently Asked Questions

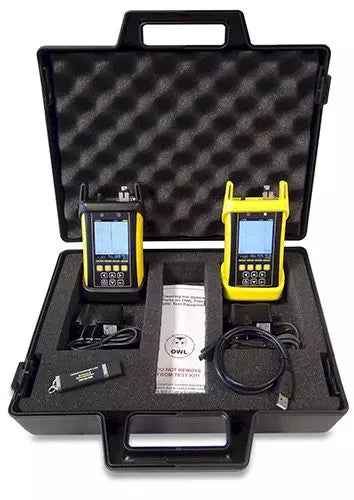

What is included in the QUAD kit?
The WTO2-Q kit includes both the multimode WTO-M83 and single mode WTO-S35 OTDR units, along with necessary accessories for quad-wavelength testing.
Can I export data from the device?
Yes, stored traces can be downloaded to a PC for further processing and analysis using the included OWLView software.
What is the typical battery life?
The device is powered by a Lithium Polymer battery that provides up to 20 hours of continuous use.
Does it support visual fiber identification?
Yes, it features an integrated 650nm Visual Fault Locator with a 2.5mm universal port.
What connector interface does this kit use?
This model is equipped with LC/UPC connectors.
