Overview

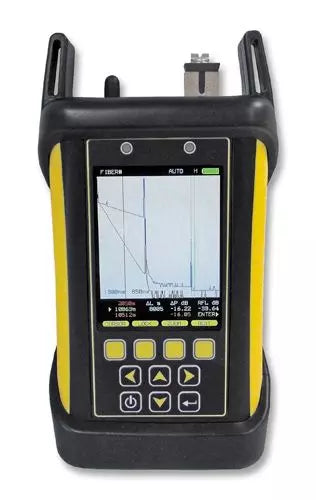

The OWL WTO2-S13 OWLTrek II is a pocket-sized, single-mode optical time-domain reflectometer (OTDR) designed for efficient troubleshooting and restoration of fiber optic networks. Operating at a 1310nm wavelength, this device provides a 25dB dynamic range and is capable of testing spans up to 80 miles, making it suitable for field technicians performing essential network maintenance.
Constructed for portability and ease of use, the unit features a high-resolution 2.8" color LCD screen that includes automatic rotation for varied viewing angles. The device integrates an automatic event locator and a Live Mode that continuously implements OTDR traces every few seconds, allowing for real-time monitoring of fiber status. It also includes an integrated Visual Fault Locator (VFL) with a 2.5mm universal port for quick identification of fiber breaks.
Key Features
-
Pocket-Sized Form Factor
Compact, portable design enables easy transport and use in tight workspaces or field locations. -
Live Mode Monitoring
Continuously performs traces every few seconds to identify and track changes in the fiber in real-time. -
Integrated VFL
Built-in 650nm Visual Fault Locator with a 2.5mm universal port allows for quick visual identification of faults. -
Automatic Event Locator
Simplifies analysis by automatically identifying and locating events along the fiber span. -
High-Resolution Display
A 2.8" color LCD screen with automatic screen rotation provides clear, convenient data visualization. -
Extended Battery Life
Equipped with a rechargeable Lithium Polymer battery providing up to 20 hours of continuous operation. -
OWLView Software
Includes PC-based analysis software to enable comprehensive review and documentation of test results.
Applications
- Troubleshooting single-mode fiber optic networks
- Restoration of fiber infrastructure
- Real-time fiber monitoring
- General link analysis
Package Contents
- OWL WTO2-S13 OWLTrek II OTDR Unit
- Rechargeable Lithium Polymer Battery
- OWLView PC Analysis Software
- User Guide
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | OWL |
| Model | WTO2-S13 |
| Part Number | 793X680 |
| Fiber Type | Single Mode |
| Output Wavelength | 1310nm |
| Connector Interface | LC/UPC |
| Dynamic Range | 25dB |
| Distance Range | Up to 80 miles |
| Event Dead Zone | 2 meters (typical) |
| Attenuation Dead Zone | 7 meters |
| Data Points | 64,000 max |
| Display | 2.8" Color LCD |
| VFL Wavelength | 650nm (2.5mm universal port) |
| Battery | Lithium Polymer (up to 20 hours) |
Frequently Asked Questions
What is the primary function of the OWLTrek II?
The device is a pocket-sized OTDR intended for basic troubleshooting, analysis, and restoration of single-mode fiber optic networks.
What connector type does this unit support?
This specific model is configured for LC/UPC connections.
Does this unit have real-time monitoring?
Yes, it features a Live Mode that continuously runs OTDR traces to monitor fiber changes in real-time.
Is the display orientation adjustable?
Yes, the unit features an automatic screen rotation function for the 2.8" LCD display.
Can I view results on a computer?
Yes, the unit comes with OWLView PC software to view and analyze test results on a computer.
