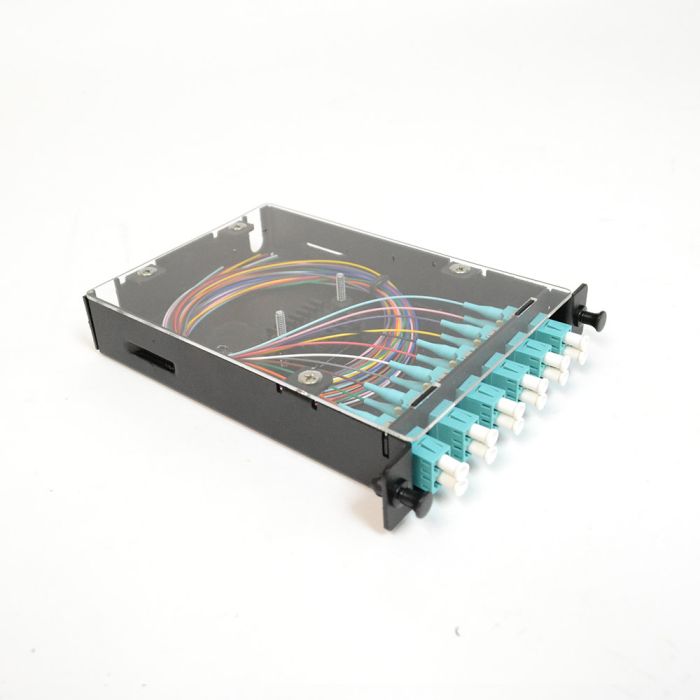

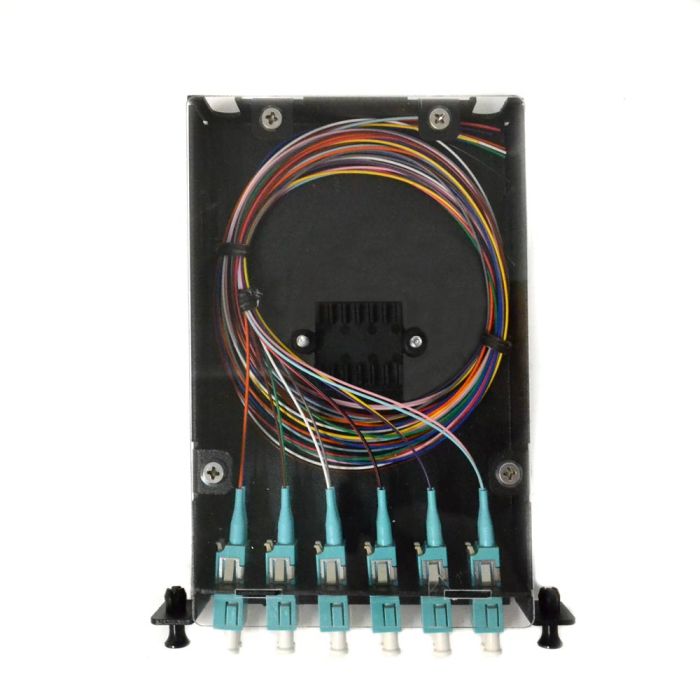

Patch & Splice Cassette Kit, Multimode OM3, LC/PC, 12 Fiber

Overview

The Patch & Splice Cassette Kit is an integrated solution designed for high-density fiber management, providing a secure and organized environment for splicing and patching. This kit is specifically optimized for multimode OM3 fiber applications, facilitating reliable signal transition between backbone cabling and distribution equipment.

Constructed with a durable 0.060-inch aluminum housing finished with an electrostatically applied powder coat, this unit is engineered for long-term use in standard networking racks and enclosures. Its LGX 118 compatible footprint ensures seamless integration into existing infrastructure, while the modular design includes removable adapter plates and splice chips to simplify maintenance and field installations.

Key Features

• Removable Adapter Plate
  Allows for flexible configuration and easy access during moves, adds, and changes.
• Removable Splice Chips
  Simplifies the fiber management process, allowing for efficient organization of spliced fibers.
• Integrated Pigtails
  Includes 1-meter pigtails to reduce preparation time during field installation.
• Splice Protection Included
  Supplied with 40mm splice sleeves to ensure secure and protected fiber joints.
• Clear Lid Design
  Provides visual inspection capabilities without requiring the removal of the housing cover.
• LGX 118 Compatibility
  Ensures standard fitment within common industry-standard rack and wall-mount enclosures.
• Durable Aluminum Construction
  Utilizes 0.060-inch aluminum material for robust structural integrity.
• Powder Coated Finish
  Electrostatic powder coating offers enhanced resistance to environmental wear and corrosion.

Applications

• Data centers
• Enterprise networks
• Central offices
• Fiber cross-connect cabinets

Package Contents

• Patch & Splice Cassette
• Removable Adapter Plate
• Splice Chips
• 1-Meter Pigtail
• 40mm Splice Sleeves

Technical Specifications

Frequently Asked Questions

Is this cassette compatible with non-LGX enclosures?
This cassette is designed for an LGX 118 footprint and is intended for use in compatible rack or wall-mount enclosures.

Does the kit include everything needed for splicing?
The kit includes the cassette, adapter plate, splice chips, pigtails, and splice sleeves; however, you will need a fusion splicer and standard fiber preparation tools to complete the termination.

Can I use this for singlemode fiber?
This specific model is configured for multimode OM3 fiber. Versions for singlemode are available separately.

What is the maximum fiber capacity?
This cassette configuration supports 12 fibers.

Is the lid removable?
The kit features a clear lid for easy viewing and access to the interior for maintenance.
