Overview

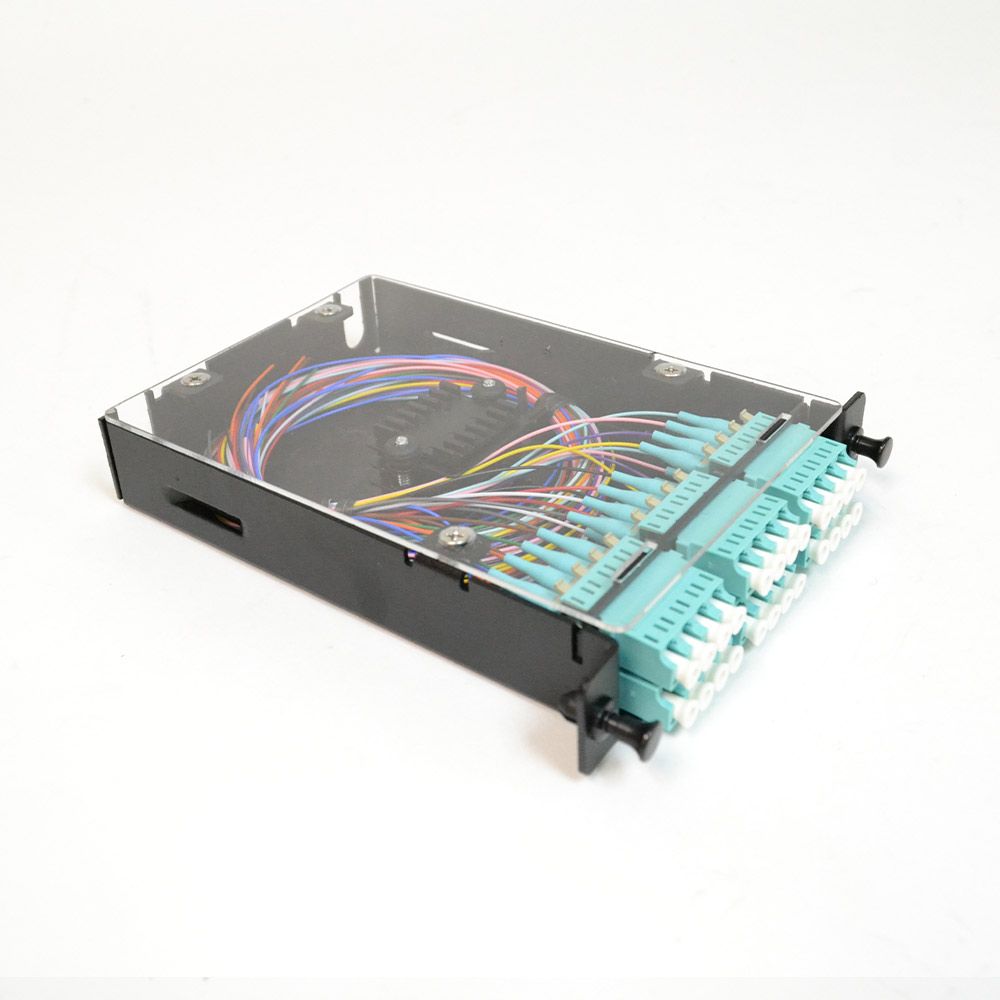

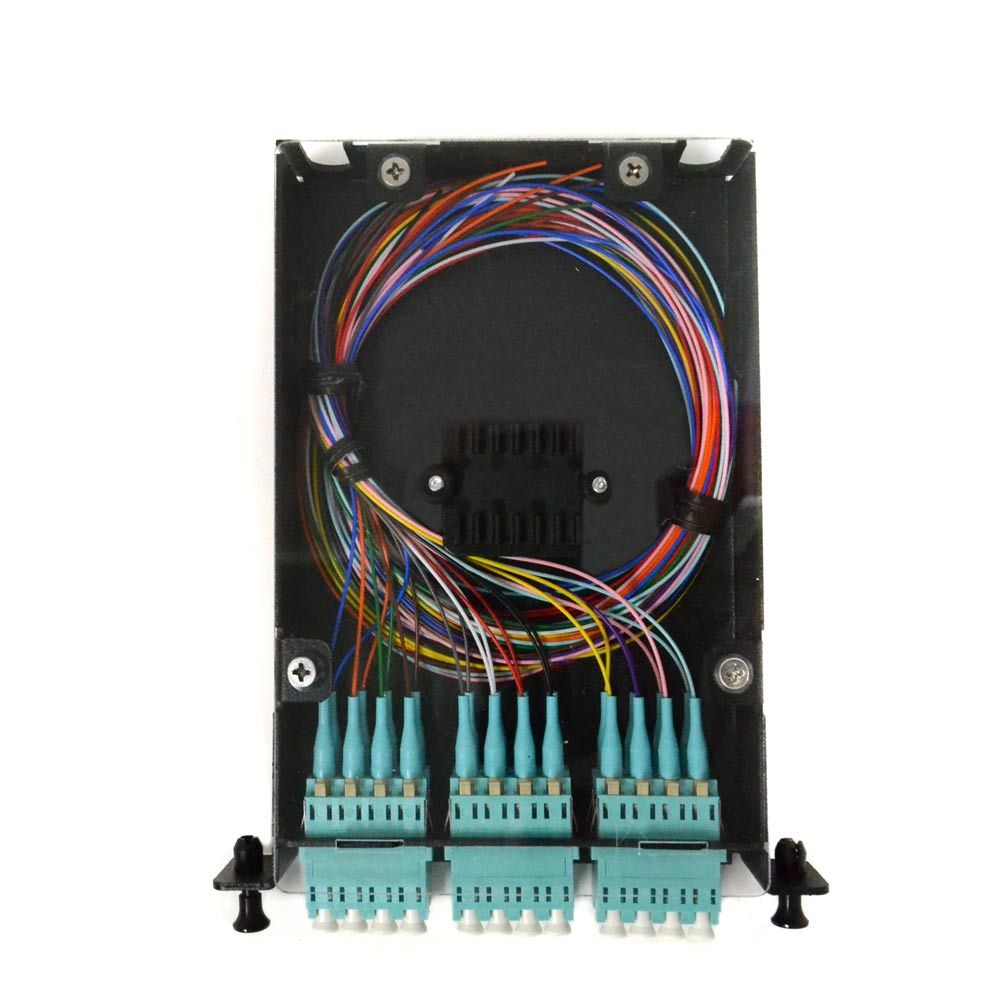

The Patch & Splice Cassette Kit is an integrated fiber management solution designed for efficient termination and protection of optical fibers. This kit supports up to 24 LC fiber connections, providing a consolidated platform for patching and splicing in high-density environments. Its compact, industry-standard footprint allows for seamless integration into existing rack-mount or wall-mount enclosure systems.
Constructed from durable .060" aluminum with an electrostatically applied powder-coat finish, this cassette is built for long-term use in demanding network environments. The design includes a clear lid for visual inspection of fiber routing and a removable adapter panel and splice chips to facilitate rapid installation and maintenance. The kit is supplied with necessary pigtails and splice sleeves, offering a complete set of components for immediate deployment.
Key Features
-
Removable Adapter Plate
Allows for flexible configuration and easy access during installation. -
Removable Splice Chips
Simplifies the fiber splicing process and improves organization within the cassette. -
Included 1-Meter Pigtail
Provides pre-terminated convenience to reduce on-site labor requirements. -
Included 40mm Splice Sleeves
Ensures professional-grade protection for fusion-spliced fibers. -
Clear Lid Design
Enables quick, non-intrusive status checks of internal fiber connections. -
LGX 118 Footprint
Ensures compatibility with industry-standard enclosures for easy retrofitting.
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Type | Multimode OM3 |
| Connector Type | LC/PC |
| Fiber Count | 24 |
| Dimensions | 5.10" W x 6" D x 1.03" H |
| Housing Material | .060" Aluminum |
| Coating | Electrostatically Applied Powder Coat (Black) |
| Compatibility | LGX 118 Footprint |
Frequently Asked Questions
What is the fiber capacity of this cassette?
This cassette kit is designed to accept up to 24 LC fibers.
Are the splice sleeves included?
Yes, 40mm splice sleeves are included in the kit.
Is the adapter plate removable?
Yes, the unit features a removable adapter plate for easier configuration.
What kind of coating does the housing have?
The housing is protected by an electrostatically applied powder coat.
What is the footprint standard for this kit?
This unit follows the industry-standard LGX 118 footprint.
