Overview

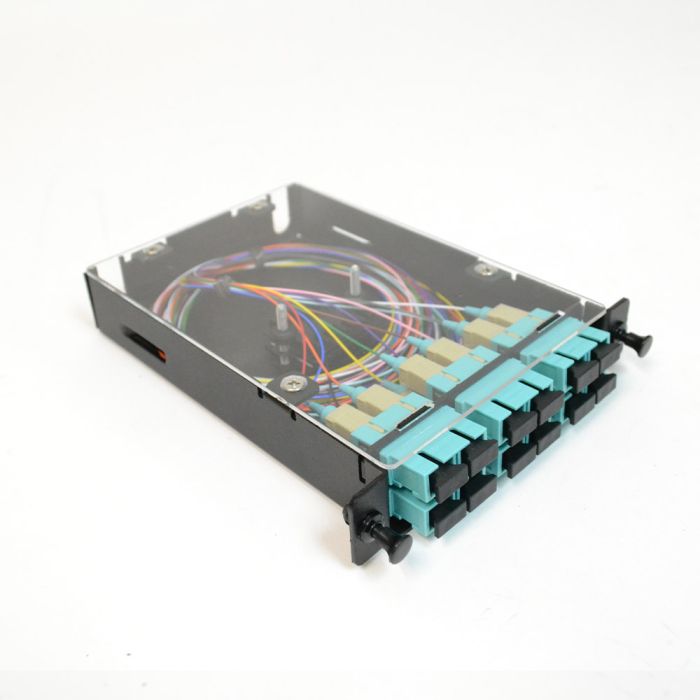

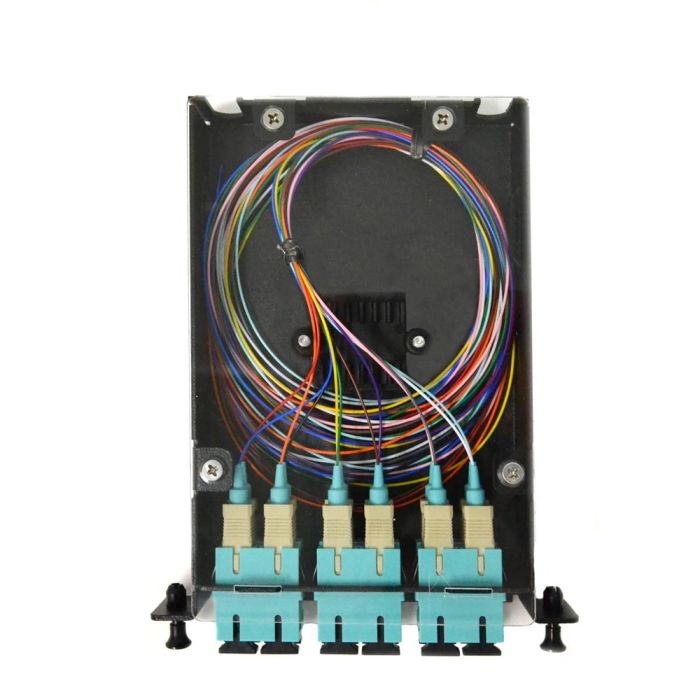

The Patch & Splice Cassette Kit is an integrated solution designed for high-density fiber management, providing a secure environment for patching and splicing in a single, compact unit. This kit is specifically configured for 12-fiber multimode OM3 applications using SC/PC connectivity, ensuring efficient signal routing and protection for fiber networks.
Constructed from .060" aluminum with a durable, electrostatically applied powder coat finish, the cassette is built for longevity in data center and telecommunications environments. It features an LGX 118 compatible footprint, allowing for seamless integration into standard rack-mount or wall-mount enclosure systems. The clear lid allows for easy visual inspection of internal connections and fiber management.
Key Features
-
Removable Adapter Plate
Allows for modular configuration and easier access during installation and maintenance. -
Removable Splice Chips
Facilitates efficient fiber splicing by allowing the user to work with the chips outside of the main housing. -
1 Meter Pigtail Included
Reduces field preparation time by providing pre-terminated fiber ready for immediate splicing. -
40mm Splice Sleeves Included
Ensures professional, protected, and stable fiber fusion points. -
LGX 118 Footprint
Maintains compatibility with industry-standard enclosures for versatile deployment. -
Aluminum Housing
Provides a lightweight yet robust structure for physical protection of delicate fiber components. -
Clear Lid
Allows for quick visual verification without the need to open the enclosure and risk fiber disturbance.
Applications
- Data center fiber distribution
- Telecommunications network cross-connects
- Enterprise LAN/WAN fiber management
- Central office fiber termination
Package Contents
- Patch & Splice Cassette Housing
- Removable Adapter Plate
- Splice Chips
- 1 Meter Pigtail Assembly
- 40mm Splice Sleeves
Technical Specifications
| Specification | Value |
|---|---|
| Model | F1PSCKSCOM312 |
| Fiber Count | 12 |
| Fiber Type | Multimode OM3 |
| Connector Type | SC/PC |
| Footprint | LGX 118 |
| Dimensions (W x D x H) | 5.10" x 6" x 1.03" |
| Material | .060" Aluminum |
| Finish | Electro Statically Applied Powder Coat (Black) |
Frequently Asked Questions
Is the adapter plate replaceable?
Yes, the unit features a removable adapter plate to support flexible configurations.
What is the enclosure made of?
The cassette is constructed from .060" aluminum with a powder-coated finish for durability.
Are splicing supplies included?
Yes, the kit includes the necessary splice chips, pigtails, and 40mm fusion splice sleeves.
Will this fit in a standard LGX rack?
The cassette is designed with an LGX 118 compatible footprint, making it suitable for standard LGX-compliant enclosures.
What is the maximum fiber capacity?
This specific kit is configured for 12 fibers, though the cassette series can accommodate up to 24 fibers in certain LC configurations.
