Overview

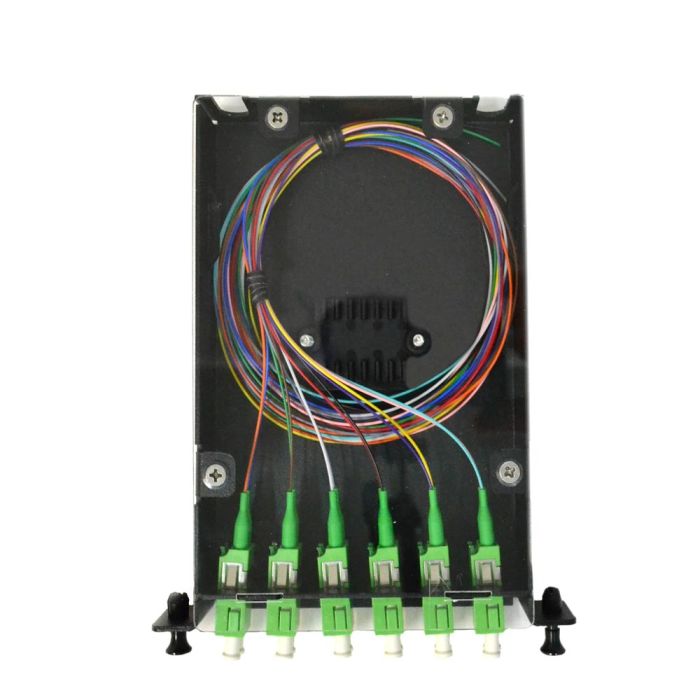

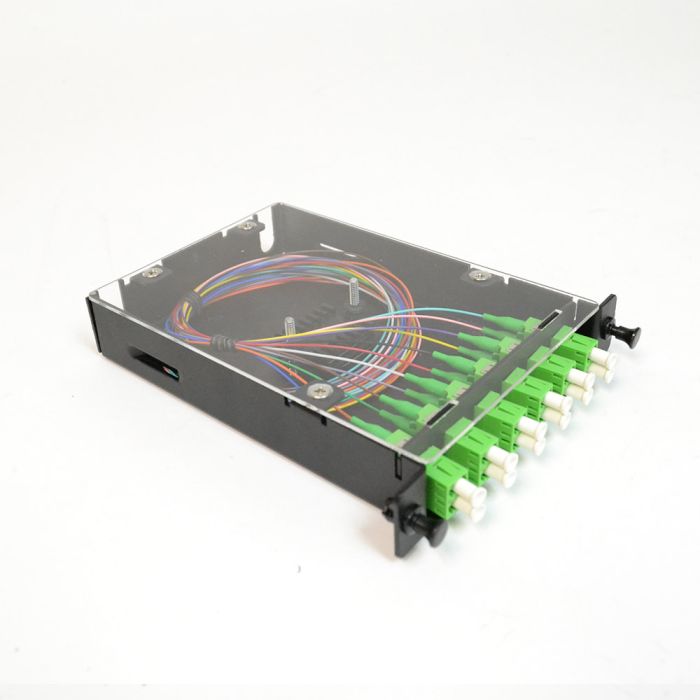

The Patch & Splice Cassette Kit is a modular solution designed to facilitate secure fiber optic cable termination and splicing within a compact, organized footprint. Featuring an LGX 118 standard interface, this cassette is engineered for easy integration into existing rack or wall-mount enclosure systems.
Constructed from durable .060" aluminum with a protective electrostatically applied powder coat, this kit is suitable for data center and telecommunications environments. It includes essential components for termination, including a removable adapter panel and splice chips, supporting 12-fiber connectivity in a singlmode LC/APC configuration.
Key Features
-
Removable Adapter Plate
Allows for simplified installation and maintenance of fiber connectors. -
Removable Splice Chips
Provides organized management of fusion splices for improved technician access. -
12-Fiber Capacity
Supports high-density connectivity requirements within a single LGX module. -
LC/APC Connectivity
Features factory-aligned LC/APC interfaces for low-reflectance, high-performance signal transmission. -
Aluminum Construction
Utilizes .060" thick material for structural durability and equipment protection. -
LGX 118 Compatible
Ensures standard footprint compatibility with industry-standard enclosures.
Applications
- Data centers
- Telecommunications networks
- Enterprise network distribution
- Fiber-to-the-X (FTTX) installations
Package Contents
- Patch & Splice Cassette
- 1 Meter Pigtail
- 40mm Fusion Splice Sleeves
- Removable Adapter Plate
- Removable Splice Chips
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Connector Type | LC/APC |
| Mode | Singlemode |
| Dimensions | 5.10" W x 6" D x 1.03" H |
| Housing Material | .060" Aluminum |
| Coating | Electro Statically Applied Powder Coat |
| Form Factor | LGX 118 |
Frequently Asked Questions
What type of fiber does this cassette support?
This specific kit is configured for singlemode fiber.
Does this kit include the necessary splicing components?
Yes, it includes a 1-meter pigtail and 40mm splice sleeves.
Is the adapter plate removable?
Yes, the unit features a removable adapter panel to facilitate easier work during installation.
What is the enclosure footprint of this unit?
This cassette uses the industry-standard LGX 118 footprint.
What material is used for the cassette housing?
The housing is constructed from .060" thick aluminum with a powder-coated finish.
