Overview

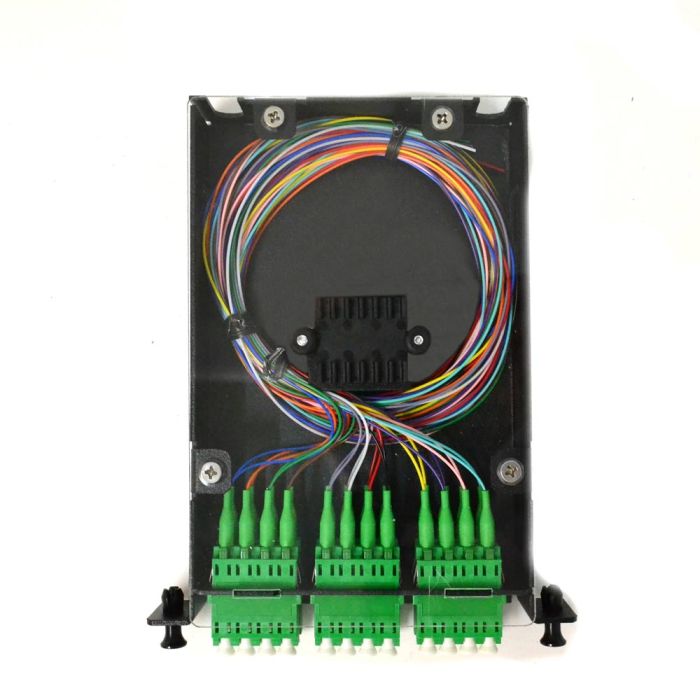

The Patch & Splice Cassette Kit is a comprehensive solution designed for organized fiber management in high-density environments. This unit serves the primary purpose of housing, protecting, and managing fiber splices and terminations within a standard rack infrastructure.
Engineered with a modular design, the kit features a removable adapter plate and internal splice chips to facilitate efficient cable routing and termination. Constructed from durable .060" aluminum and finished with an electrostatic powder coat, it is intended for use in indoor rack-mount applications. The kit includes the necessary components for a clean, professional install including pigtails and splice sleeves.
Key Features
-
Modular Design
Features a removable adapter plate and splice chips to simplify installation and maintenance procedures. -
High Density
Supports up to 24 LC fiber terminations, maximizing port density in limited rack space. -
Robust Construction
Built from .060" aluminum with a durable electrostatic powder coat finish for long-term hardware protection. -
Standardized Footprint
Designed with an LGX 118 compatible footprint for seamless integration with existing network enclosures. -

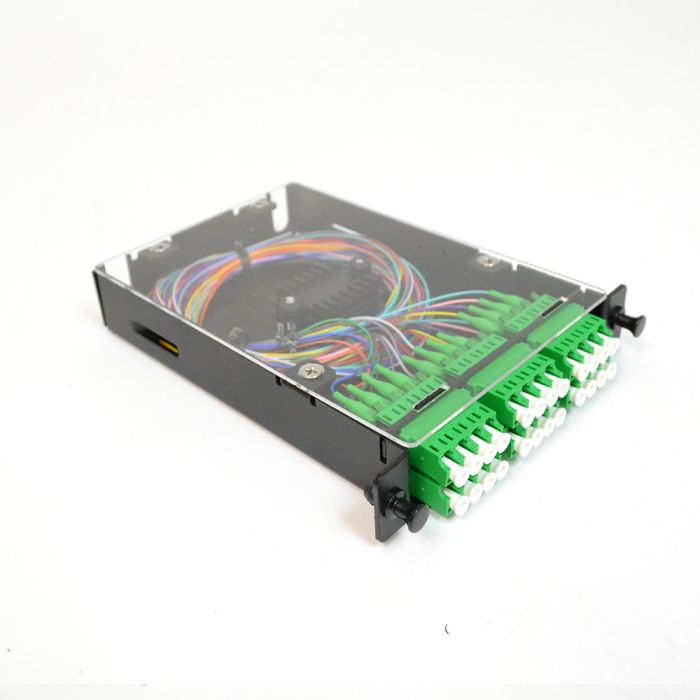

Clear Cover
Includes a transparent lid for quick visual inspection of internal fiber management and splice trays. -
Complete Kit
Bundled with 1-meter pigtails and 40mm splice sleeves, reducing the need for sourcing individual components.
Applications
- Data center cross-connects
- Telecommunications room fiber distribution
- Enterprise network backbone management
- FTTX installations
Package Contents
- Patch & Splice Cassette housing
- Removable adapter plate
- Splice chips
- 1-meter pigtail set
- 40mm splice sleeves
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Capacity | 24 Fiber |
| Fiber Type | Singlemode |
| Connector Type | LC/APC |
| Footprint | LGX 118 |
| Dimensions | 5.10" W x 6" D x 1.03" H |
| Housing Material | .060" Aluminum |
| Coating | Electrostatic Powder Coat |
Frequently Asked Questions
Is this cassette compatible with standard LGX racks?
Yes, it is designed with an LGX 118 compatible footprint.
What type of adapter plate is included?
The kit comes with a removable adapter plate for LC/APC fiber configurations.
Are the splice sleeves included?
Yes, 40mm splice sleeves are included in the kit.
What is the maximum fiber count?
This specific kit supports up to 24 LC fibers.
Is the lid removable?
The cassette features a clear lid for inspection; consult the installation manual for full mechanical details.
