Overview

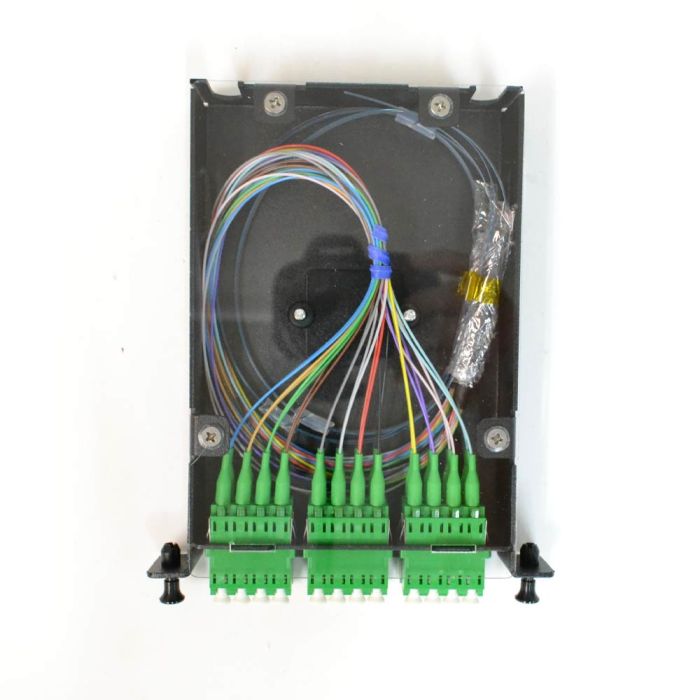

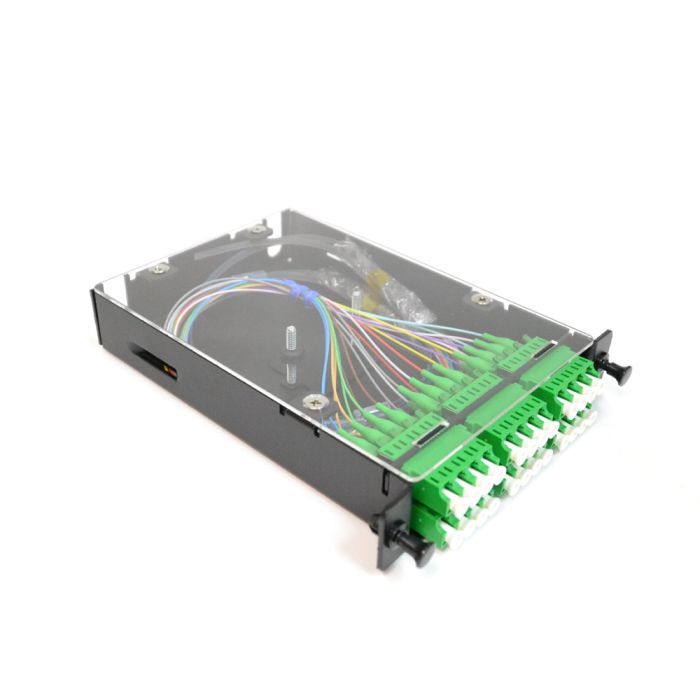

The Patch & Splice Cassette Kit provides an efficient, integrated solution for managing fiber terminations and splices within high-density network environments. Designed for singlemode applications, this unit combines patching and splicing functionality in a modular format to optimize space and organization in rack-mounted enclosures.
This kit features 24-fiber ribbon pigtails with LC/APC connectors, ensuring low-reflectance performance necessary for sensitive optical networks. The cassette is engineered to facilitate clean, secure cable management, protecting delicate fiber splices while providing organized access for network maintenance and connectivity.
Key Features
-
Integrated Design
Combines patching and splicing in a single cassette, reducing the physical footprint required in server racks. -
High Density
Supports 24 fibers in a compact form factor, maximizing rack space utilization. -
Ribbon Fiber Ready
Optimized for ribbon fiber pigtails, allowing for rapid, high-count splicing processes. -
LC/APC Connectivity
Features factory-terminated LC/APC connectors for low reflectance and consistent optical performance. -
Fiber Protection
Dedicated internal routing provides strain relief and protection for fusion splices against accidental damage. -
Easy Maintenance
Modular design allows for simple installation and convenient access for future network moves, adds, or changes.
Applications
- Data center cross-connects
- Central office head-ends
- Enterprise fiber distribution networks
- FTTX cabinet terminations
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F1PSCKLCAPC24R |
| Fiber Count | 24 |
| Fiber Type | Singlemode |
| Connector Type | LC/APC |
| Configuration | Ribbon |
Frequently Asked Questions
What type of fiber does this cassette support?
This cassette is designed for singlemode fiber applications.
How many fibers can this unit accommodate?
This kit is configured for 24-fiber capacity.
Does this include the pigtails?
Yes, the kit includes 24-fiber ribbon pigtails with pre-terminated LC/APC connectors.
Is this compatible with standard fiber enclosures?
Yes, it is designed for use within standard fiber optic rack-mount or wall-mount enclosures.
What is the purpose of the APC polish?
The Angled Physical Contact (APC) polish is used to minimize back-reflection, which is critical for high-speed singlemode networks.
