Overview

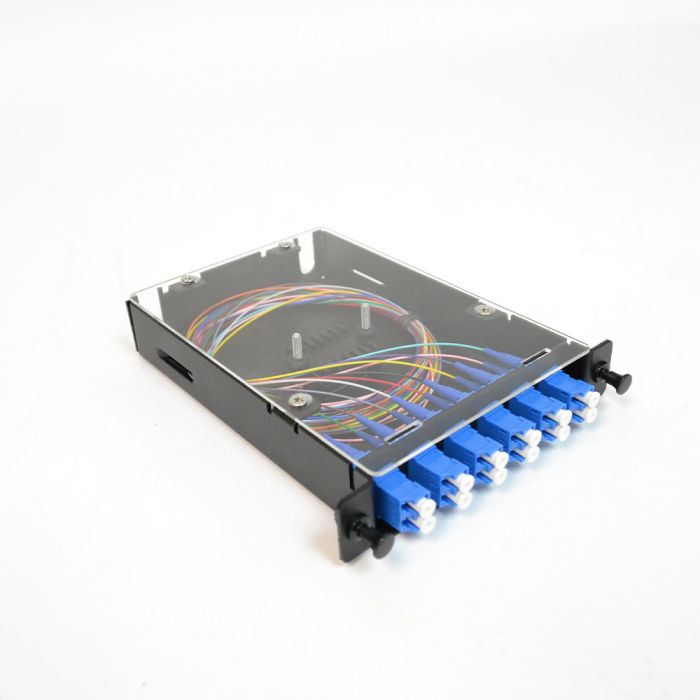

The Patch & Splice Cassette Kit provides a compact, organized solution for managing fiber terminations and fusion splices in rack-mount environments. Designed with an LGX 118 footprint, this kit serves as an integrated patch and splice point, streamlining fiber deployments in data centers and telecommunication facilities.

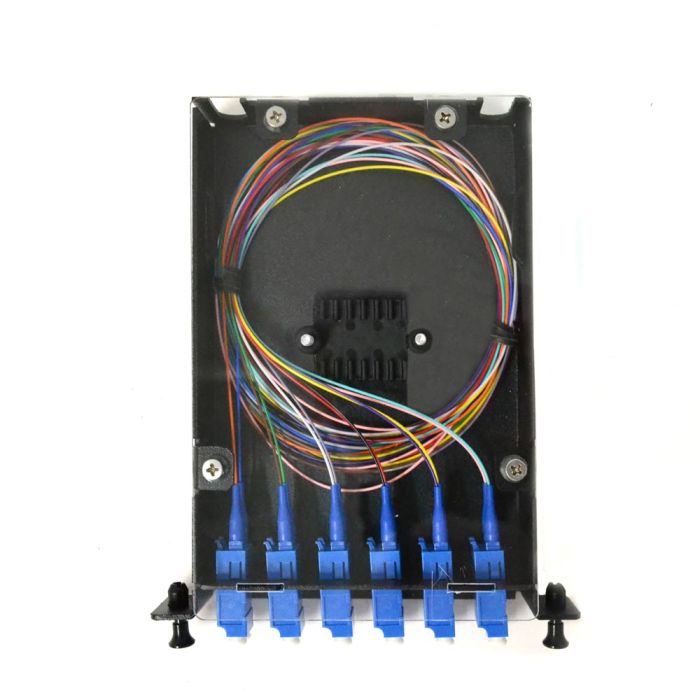

The unit features a durable .060" aluminum housing protected by an electrostatically applied black powder coat. Its design includes a clear lid for easy visual inspection, removable adapter plates, and removable splice chips, providing technicians with the flexibility required for efficient installations and maintenance.
Key Features
-
LGX 118 Footprint
Ensures broad compatibility with standard rack-mount enclosure systems. -
Removable Adapter Plate
Allows for easy reconfiguration of port counts and connector types. -
Removable Splice Chips
Simplifies the fusion splicing process by allowing the tray to be removed from the cassette. -
Clear Lid
Provides instant visibility to internal fiber routing and status without opening the unit. -
Aluminum Construction
Utilizes .060" aluminum for a lightweight yet robust chassis. -
Powder Coated Finish
Electro-statically applied coating ensures long-term durability and resistance to wear.
Applications
- Data Center Fiber Management
- Telecommunication Distribution Frames
- Enterprise LAN/WAN Networks
- Rack-mount Enclosure Integration
Package Contents
- Patch & Splice Cassette
- 12-Fiber Pigtail (1 meter)
- 40mm Fusion Splice Sleeves
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 Fiber |
| Connector/Polish | LC/UPC |
| Fiber Mode | Singlemode |
| Footprint | LGX 118 |
| Dimensions | 5.10" W x 6" D x 1.03" H |
| Material | .060" Aluminum |
| Finish | Electro-statically applied black powder coat |
Frequently Asked Questions
Is the adapter plate removable?
Yes, the cassette features a removable adapter plate to facilitate easier installation and maintenance.
What type of splice sleeves are included?
The kit includes 40mm fusion splice sleeves.
Are pigtails included in the package?
Yes, a 1-meter pigtail is included with each kit.
What is the physical footprint of the cassette?
This cassette utilizes the standard LGX 118 footprint.
Can this be used for multimode fiber?
This specific SKU is for singlemode; however, the product family supports SC and LC configurations in both singlemode and multimode.
