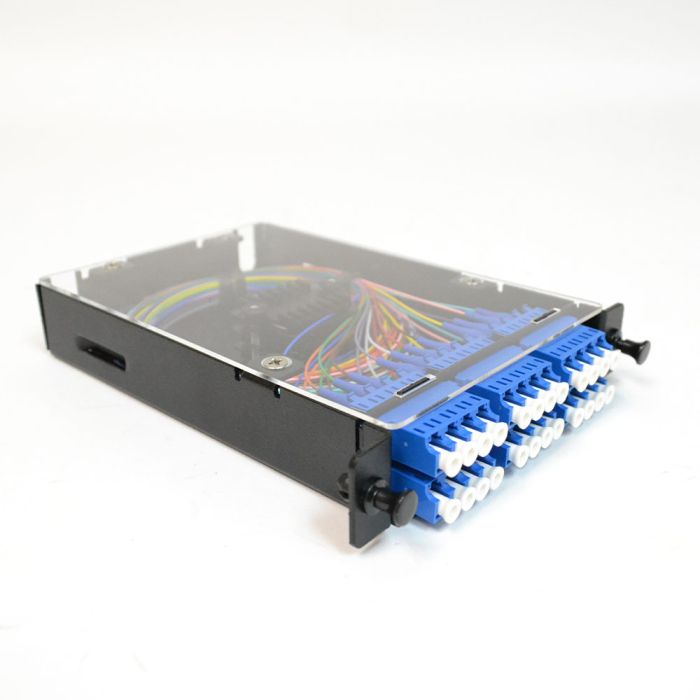

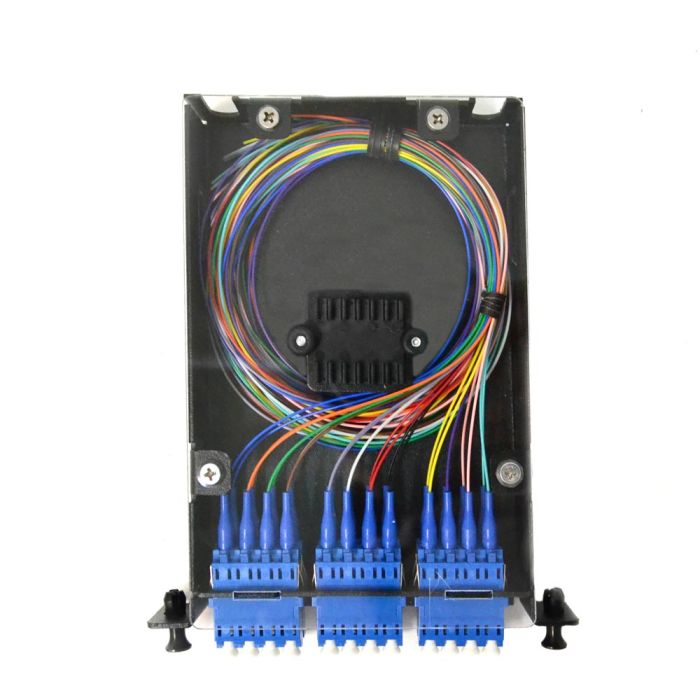

Patch & Splice Cassette Kit, Singlemode, LC/UPC, 24 Fiber

Overview

The Patch & Splice Cassette Kit provides an efficient, integrated solution for fiber management, designed to accommodate up to 24 fibers in a single, compact unit. This kit is specifically engineered for high-density environments, utilizing an LGX 118-compatible footprint that allows for seamless integration into existing rack-mount or wall-mount enclosure systems.

Constructed from durable .060" aluminum with an electrostatically applied powder coat finish in black, this cassette ensures long-term protection for delicate fiber connections. The design features a clear lid for easy visual inspection, a removable adapter plate for simple connector changes, and removable splice chips to streamline the splicing process, making it an ideal choice for data center operators and technicians requiring a reliable, modular patch-and-splice solution.

Key Features

• High-Density Capacity
  Supports up to 24 LC fiber connections, optimizing space in high-density rack configurations.
• Removable Adapter Plate
  Allows for quick, tool-less reconfiguration or maintenance of the bulkhead.
• Integrated Splice Management
  Includes removable splice chips to facilitate organized and efficient fiber fusion splicing.
• Included Pigtails
  Comes with pre-installed 1-meter pigtails to reduce field termination time.
• Splice Protection
  Includes 40mm fusion splice sleeves to ensure robust, protected connections.
• LGX Compatibility
  Standard 118 footprint ensures compatibility with a wide range of industry-standard enclosures.
• Clear Inspection Lid
  Provides clear visibility into the internal fiber routing without the need to remove the cover.
• Rugged Construction
  Manufactured from .060" aluminum for structural integrity in industrial environments.

Applications

• Data Center fiber distribution
• Enterprise network telecommunications rooms
• Fiber management in rack-mount enclosures
• Local Area Network (LAN) infrastructure

Technical Specifications

Frequently Asked Questions

Is this cassette compatible with standard LGX enclosures?
Yes, it utilizes the standard LGX 118 footprint for compatibility.

Does it include splice sleeves?
Yes, the kit includes 40mm fusion splice sleeves.

Can I remove the adapter plate?
Yes, the cassette features a removable adapter plate for easier maintenance.

What material is the enclosure made of?
It is constructed from .060" aluminum with a powder coat finish.

Are pigtails included?
Yes, 1-meter pigtails are included with the kit.
