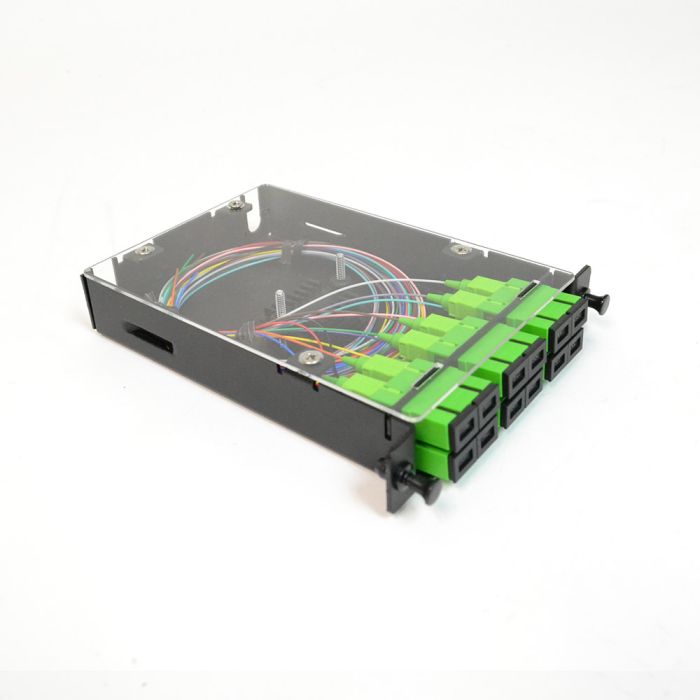

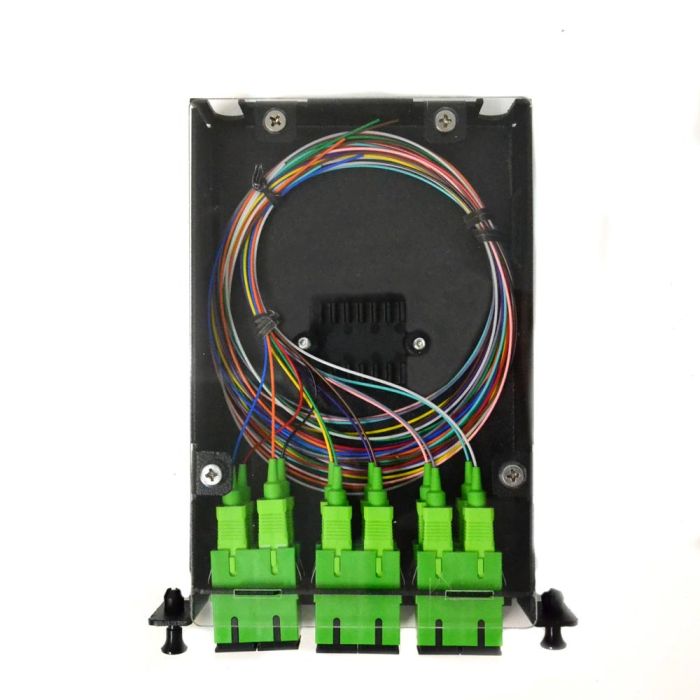

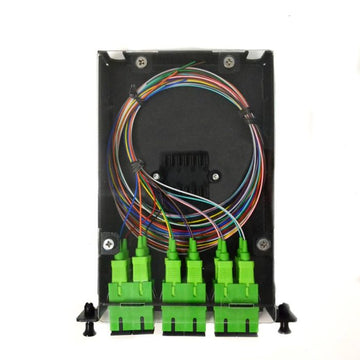

Patch & Splice Cassette Kit, Singlemode, SC/APC, 12 Fiber

Overview

The Patch & Splice Cassette Kit is an integrated fiber management solution designed for organized cable termination and splicing in rack or wall-mount environments. It provides a modular platform for transitioning outside plant or backbone cabling to manageable patch cords, ensuring signal integrity in dense networking configurations.

Constructed from durable .060" aluminum with a protective powder coat, the cassette is compatible with the industry-standard LGX 118 footprint. The system features a clear lid for visual inspection and includes essential components for immediate deployment, including removable adapter plates and splice chips, making it suitable for data centers, telecommunications facilities, and enterprise network environments.

Key Features

• Removable Adapter Plate
  Allows for easy reconfiguration of connector types and maintenance without replacing the entire cassette.
• Removable Splice Chips
  Simplifies the fiber management process by providing a modular workspace for secure fiber splicing.
• Included Pigtail
  Comes with a 1-meter pigtail, reducing the need for additional component sourcing for standard terminations.
• Splice Protection Included
  Includes 40mm splice sleeves to protect fusion-spliced fibers from environmental damage.
• Clear Lid Design
  Enables quick visual inspection of fiber routing and connections without opening the unit.
• LGX Compatibility
  Designed with an industry-standard LGX 118 footprint for seamless integration into existing enclosures.

Applications

• Data centers
• Telecommunications networks
• Enterprise premise wiring
• Fiber cross-connects

Package Contents

• Patch & Splice Cassette
• Removable Adapter Plate
• Splice Chips
• 1-meter Pigtail
• 40mm Splice Sleeves

Technical Specifications

Frequently Asked Questions

What is the fiber capacity of this cassette?
This model supports up to 12 fibers for SC configurations, or up to 24 fibers for LC configurations.

Is the adapter plate removable?
Yes, the unit features a removable adapter plate for easier access and configuration.

What kind of coating is used on the cassette?
The housing is finished with an electrostatically applied powder coat.

Does this kit include splice sleeves?
Yes, the kit includes 40mm splice sleeves.

Is the unit compatible with standard LGX enclosures?
Yes, the cassette is designed with an LGX 118 compatible footprint.

Downloads

• Product PDF
