Overview

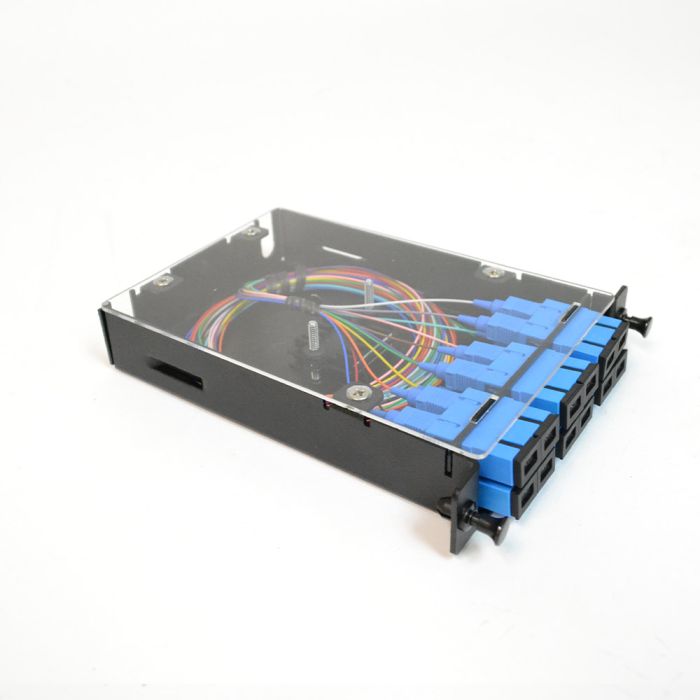

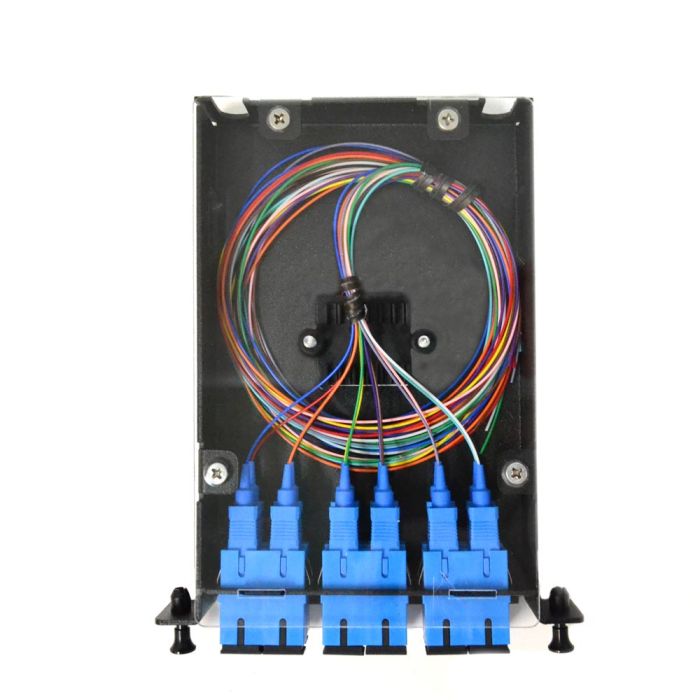

The Patch & Splice Cassette Kit is a modular solution designed for organized fiber management in high-density environments. This kit serves as an efficient integration point for terminating and protecting fiber optic connections within an enclosure, specifically engineered to maintain precise bend radii and secure splicing.
Constructed from durable .060" aluminum with an electrostatically applied powder coat finish, this unit is built for long-term reliability in data centers and telecommunication facilities. The kit simplifies fiber installation and maintenance by providing a compact, versatile mounting platform compatible with the industry-standard LGX 118 footprint.
Key Features
-
Removable Adapter Plate
Allows for modular configuration changes and simplified cleaning or maintenance. -
Removable Splice Chips
Enables convenient access for technicians during the fiber fusion splicing process. -
Pre-Configured Components
Includes 1 meter pigtails and 40mm fusion splice sleeves to reduce field assembly time. -
Clear Lid Protection
Provides physical protection for fibers while allowing for visual inspection of the connections. -
Standard LGX Footprint
Ensures broad compatibility with existing rack mount and wall mount enclosures. -
Durable Aluminum Construction
Provides a lightweight yet robust chassis with an electrostatically applied powder coating for corrosion resistance.
Applications
- Data Center Fiber Interconnects
- Telecommunications Central Offices
- Enterprise LAN/WAN Networks
- Premises Fiber Distribution
Package Contents
- 1 x Patch & Splice Cassette
- Removable Adapter Plate
- Removable Splice Chips
- 1 Meter Pigtails
- 40mm Splice Sleeves
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 Fiber |
| Fiber Type | Singlemode |
| Connector Type | SC/UPC |
| Footprint | LGX 118 |
| Material | .060" Aluminum |
| Finish | Electro Statically Applied Powder Coat |
| Dimensions | 5.10" W x 6" D x 1.03" H |
| Pigtail Length | 1 Meter |
| Splice Sleeve Size | 40mm |
Frequently Asked Questions
Does this cassette support LC fibers?
The cassette is designed to support up to 12 SC or 24 LC fibers.
What is the dimensions of this unit?
The unit measures 5.10" W x 6" D x 1.03" H.
Are splice sleeves included?
Yes, 40mm fusion splice sleeves are included in the kit.
Is this compatible with LGX enclosures?
Yes, this cassette utilizes the standard LGX 118 footprint.
What material is used for the housing?
The housing is constructed from .060" aluminum with a protective powder coat finish.
