Overview

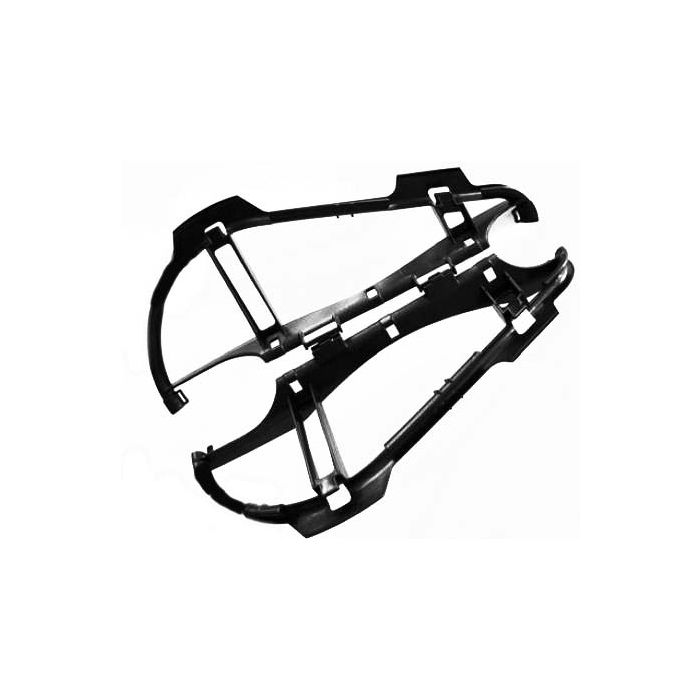

The FIBERLIGN Center-Lock Aerial Slack (CLAS) Storage System is designed to provide efficient in-span storage for ADSS fiber optic cables. By utilizing a unique center-lock hinge design, this system allows for organized slack management directly on the cable, supporting both cable-only and butt-splice configurations.
Constructed for durability in outdoor environments, the CLAS system features heavy-duty, UV-resistant strap fasteners. This tool-less design eliminates the need for metal mounting hardware, ensuring safety and compatibility with all dielectric cable materials. The 20-inch unit is engineered to accommodate a wide range of cable diameters up to 1 inch (25 mm).
Key Features
-
Center-Lock Hinge Design
Features a hinged structure that allows for easy folding and separation, promoting efficient storage and handling. -
Tool-Less Installation
Straps cinch quickly to the main cable, significantly reducing installation time and eliminating the need for specialized tools. -
Non-Metallic Fasteners
Utilizes heavy-duty, UV-resistant straps instead of metal fasteners to ensure safety and prevent damage to dielectric cable jackets. -
Versatile Compatibility
Designed to be compatible with both ADSS and lashed cable applications, providing flexibility for various OSP deployments. -
Abrasion Protection
Includes integrated abrasion protection guides as a standard component to prevent wear on the stored cable. -
Durable Construction
Built to withstand outdoor environmental conditions, ensuring long-term performance and cable integrity.
Applications
- In-span aerial fiber optic cable storage
- ADSS (All-Dielectric Self-Supporting) cable management
- Butt-splice slack storage applications
- Lashed cable aerial infrastructure
Package Contents
- 1 Pair (2 Units) 20" CLAS Storage System
- Integrated Cable Ties
- Abrasion Protection Guides
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Preformed Line Products (PLP) |
| Part Number | 710012375A |
| System Type | Center-Lock Aerial Slack (CLAS) Storage |
| Size | 20 inches |
| Max Cable Diameter | 1 inch (25 mm) |
| Fastener Type | UV-Resistant Non-Metallic Straps |
| Compatibility | ADSS and Lashed Applications |
Frequently Asked Questions
Is this storage system safe for ADSS cable?
Yes, the CLAS system uses non-metallic, dielectric materials and straps, making it perfectly safe for use with all-dielectric self-supporting cables.
Does the system require special tools to install?
No, the CLAS system is designed for tool-less installation. The integrated straps cinch quickly to the cable.
Can I use this for butt-splice storage?
Yes, the system is designed to accommodate both cable-only and butt-splice storage requirements.
What is the maximum cable diameter this unit supports?
The 20-inch CLAS unit supports cables up to 1 inch (25 mm) in diameter.
Is the mounting hardware included?
The system does not require traditional mounting hardware. It includes all necessary cable ties and integrated straps for installation.
