Overview

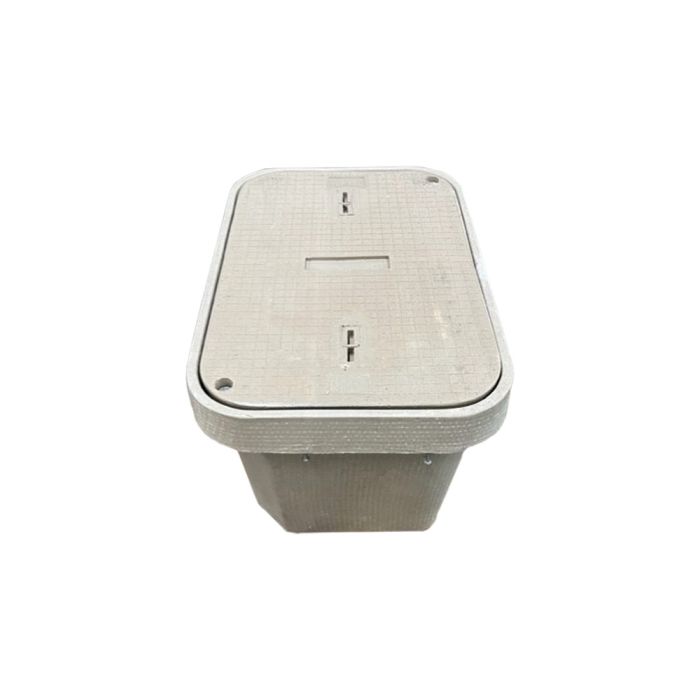

This polymer concrete handhole and vault system is designed to provide secure, durable access for underground fiber optic and utility infrastructure. Engineered for robustness, the enclosure ensures long-term protection for critical network components buried in the outside plant environment.
The unit features a Tier 22 load-rated cover, making it suitable for areas subject to occasional non-deliberate vehicular traffic. Constructed from high-strength polymer concrete, the vault offers superior resistance to environmental factors compared to traditional materials, ensuring consistent performance over time.
Key Features
-
Tier 22 Load Rating
Engineered to withstand heavy loads, providing structural integrity in areas with occasional vehicular traffic. -
Polymer Concrete Construction
Offers enhanced durability and resistance to environmental degradation, extending the service life of the enclosure. -
Standard Dimensions
Features a 24" x 36" x 24" footprint, compatible with standard underground utility installation requirements. -
Integrated Cover
Includes a matching cover designed for secure fit and accessibility during maintenance or installation. -
High Dimensional Accuracy
Manufactured with a tolerance of +/- 1/8", ensuring consistent sizing for rapid field deployment. -
Gray Finish
Neutral color blends with surrounding infrastructure for a professional, unobtrusive aesthetic.
Technical Specifications
| Specification | Value |
|---|---|
| Dimensions | 24" x 36" x 24" |
| Material | Polymer Concrete |
| Load Rating | Tier 22 |
| Weight | 280 lbs |
| Dimensional Tolerance | +/- 1/8" |
| Color | Gray |
Frequently Asked Questions
What does the Tier 22 rating indicate?
It signifies the structural load capacity of the cover, suitable for locations where occasional non-deliberate vehicular traffic may occur.
What material is used for the vault and cover?
Both the body and the cover are manufactured from high-durability polymer concrete.
What are the outside dimensions of this unit?
The unit measures 24 inches wide by 36 inches long by 24 inches deep.
Is the cover included with the vault?
Yes, the product is supplied as a complete assembly including the vault body and the rated cover.
What is the weight of this enclosure?
The assembly has a total weight of approximately 280 lbs.
