Overview

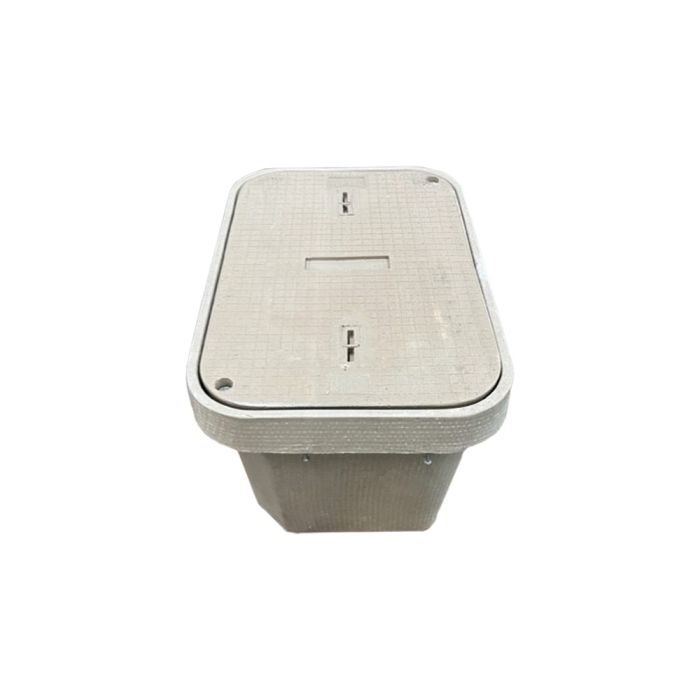

The Polymer Concrete Handhole and Vault is designed for robust underground protection of fiber optic infrastructure. Constructed from high-strength polymer concrete, this enclosure provides a durable, weather-resistant solution for housing sensitive splice points, slack storage, and networking equipment in outdoor plant environments.
This unit is engineered to meet Tier 22 load requirements, ensuring structural integrity for areas subject to occasional non-deliberate vehicular traffic. Its 30" x 48" x 36" dimensions offer ample internal volume for cable management and splicing equipment, while the included cover provides secure, reinforced access.
Key Features
-
Tier 22 Load Rating
Designed to withstand heavy loads, ensuring protection against occasional vehicular traffic. -
Polymer Concrete Construction
Provides excellent durability and resistance to environmental degradation and moisture. -
Large Internal Dimensions
30" x 48" x 36" workspace allows for efficient organization of fiber cables and closures. -
Heavy-Duty Cover
Included matching cover ensures a secure fit and structural load distribution across the top of the vault. -
Precise Manufacturing
Built with a tolerance of +/- 1/8" for consistent installation and interface with ground surfaces. -
Gray Color Finish
Neutral aesthetic designed to blend into various outdoor utility environments.
Applications
- Underground fiber optic cable housing
- Telecom splice point protection
- Network slack storage
- Outdoor utility infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | Z1-APC304836PCT22 |
| Dimensions | 30" x 48" x 36" |
| Material | Polymer Concrete |
| Load Rating | Tier 22 |
| Weight | 640 lbs |
| Tolerance | +/- 1/8" |
| Color | Gray |
Frequently Asked Questions
What is the load rating for this vault?
This vault is rated for Tier 22, meaning it is suitable for areas with occasional, non-deliberate vehicular traffic.
What material is used in this handhole?
It is constructed from high-strength, durable polymer concrete.
Are the lid and vault included?
Yes, this part number includes both the polymer concrete handhole vault and the matching cover.
What are the internal dimensions?
The exterior dimensions are 30" x 48" x 36".
What is the total weight of the unit?
The assembly weighs approximately 640 lbs.
