Overview

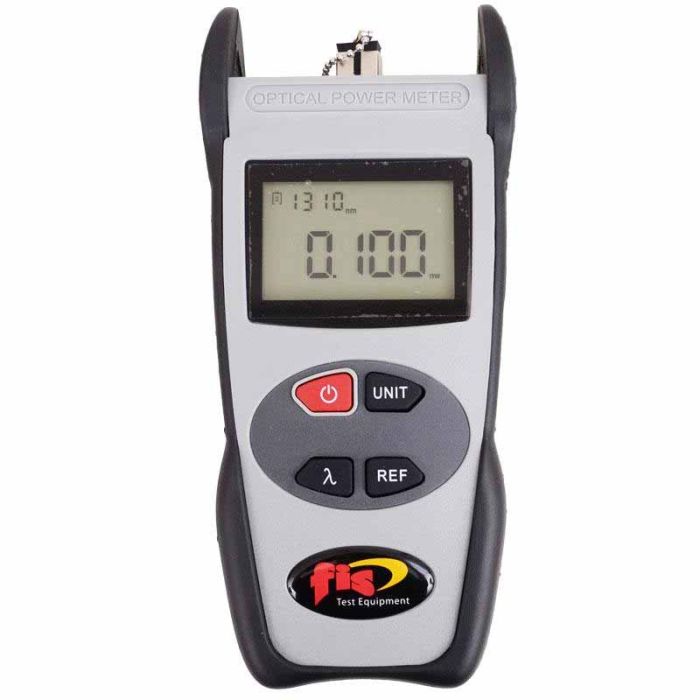

The E-Series Power Meter is a high-performance, compact testing device engineered to meet the demanding requirements of fiber optic field testing. Designed for both absolute power measurement and relative link loss measurement in decibels (dB), this meter provides the precision necessary for accurate network installation and maintenance.
The device features a user-friendly interface with an integrated backlight for visibility in low-light environments. It includes an integrated 1mW Visual Fault Locator (VFL) on a secondary port, enabling technicians to perform rapid continuity checks and fault location. The unit is housed in a durable design and comes complete with interchangeable adapter caps for 2.5mm and 1.25mm ferrule compatibility.
Key Features
-
High Precision Resolution
Features 0.01dB resolution to ensure accurate loss measurements during critical fiber testing. -
Reference Storage
Allows for zero set reference storage at each wavelength for consistent performance across multiple test scenarios. -
Integrated 1mW VFL
Built-in visual fault locator provides an efficient tool for quick continuity testing and identification of breaks. -
Battery Efficiency
Offers up to 40 hours of battery life with a low-battery indicator to prevent downtime in the field. -
Auto-Shutoff Function
Includes a 10-minute auto-shutoff feature to preserve battery power when the device is not in use. -
Backlit Interface
High-contrast backlit display allows for easy reading in dark server rooms or outdoor conditions.
Applications
- Absolute optical power measurement
- Relative link loss testing
- Continuity testing
- Fiber fault identification
- Network troubleshooting
Package Contents
- Power Meter E-Series Unit
- 2.5mm Adapter
- 1.25mm Adapter
- Protective Carrying Case
- 3 x AA Alkaline Batteries
Technical Specifications
| Specification | Value |
|---|---|
| Resolution | 0.01dB |
| VFL Output Power | 1mW |
| Battery Life | 40 Hours |
| Auto Shut Off | 10 Minutes |
| Power Supply | 3 x AA Alkaline Batteries |
Frequently Asked Questions
Does this unit support relative power measurements?
Yes, it supports both absolute power measurement and relative measurement of link loss in dB.
Are the adapters included for different connector types?
Yes, the unit comes with both 2.5mm and 1.25mm adapters.
How long will the batteries last?
The device provides approximately 40 hours of operation on a single set of 3 AA batteries.
Is a carrying case included?
Yes, a protective carrying case is included in the package.
Does the device have a low battery indicator?
Yes, the unit features a battery level indicator on the display.
