Overview

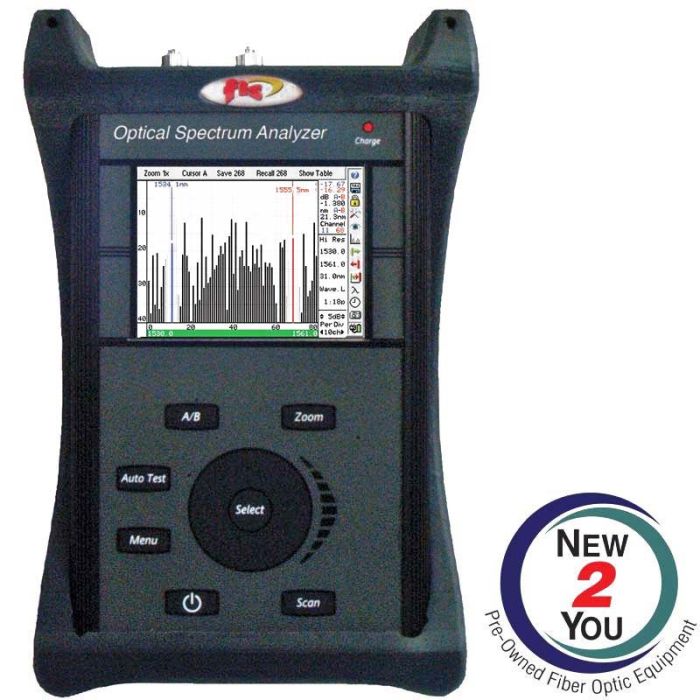

The Pre-Owned C-Band Optical Spectrum Analyzer (OSA) is a high-performance, portable testing instrument engineered for the analysis of DWDM and CWDM fiber optic systems. Designed for field technicians and network operators, this unit provides rapid, detailed spectral data to ensure network integrity and performance in demanding telecommunications environments.
This handheld analyzer features a high-speed acquisition time of less than one second, allowing for real-time monitoring and efficient troubleshooting. With an intuitive interface, it provides clear visualizations of spectral data through both bar graph and table displays on a 4-inch color screen, making it suitable for both installation and maintenance workflows.
Key Features
-
High-Speed Scanning
Achieves scan times of less than one second for real-time analysis and rapid signal detection. -
Universal Channel Spacing
Supports 50 or 100 GHz DWDM and 20nm CWDM channel spacing for broad system compatibility. -
Integrated Help Mode
Simplifies operation with built-in guidance, reducing the learning curve for technicians. -
Data Management
Internal memory storage for up to 1,000 tests, with Windows-compatible software included for reporting. -
Advanced Signal Analysis
Includes Power Tilt for DWDM channel equalization and Gain Tilt for adjusting EDFA gain flatness. -
Ruggedized Construction
Features a durable case with an impact-resistant boot, built for challenging field conditions. -
Video Scope Support
Integrated support for video inspection scopes to verify fiber end-face condition.
Applications
- DWDM system analysis and troubleshooting
- CWDM system spectral monitoring
- EDFA gain flatness verification
- Field deployment and maintenance of optical networks
- Channel equalization for optical communication links
Technical Specifications
| Specification | Value |
|---|---|
| Scan Time | <1 second |
| Display | 4" Color Display |
| DWDM Spacing | 50 GHz or 100 GHz |
| CWDM Spacing | 20nm |
| Test Memory | Up to 1,000 tests |
| Compatibility | Windows-compatible reporting software included |
Frequently Asked Questions
What does the pre-owned status entail?
Some pre-owned equipment may require updated calibration or maintenance to ensure it meets factory specifications. Additional lead time may apply for these services.
Does this unit support EDFA tuning?
Yes, the unit provides Gain Tilt features to adjust EDFA gain flatness.
Can I export data from this analyzer?
Yes, the unit stores up to 1,000 tests and includes software compatible with Windows to facilitate easy reporting.
Is this device suitable for outdoor field use?
Yes, it is designed for portability and comes in a rugged case with an impact-resistant boot for field durability.
Does this OSA support fiber inspection?
Yes, the device offers video scope capability for inspecting fiber connector end-faces.
