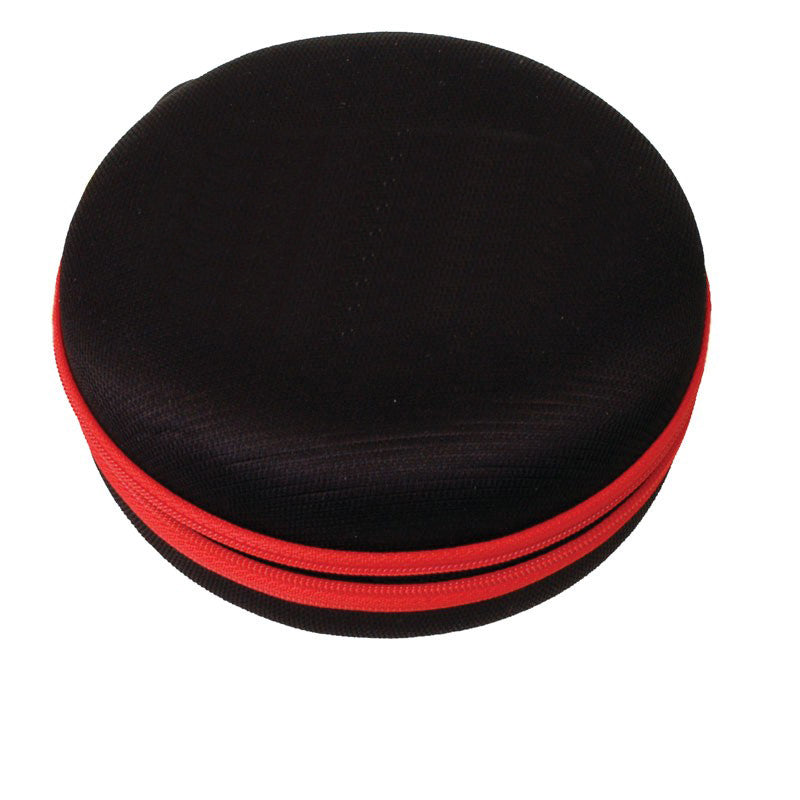

Pulse Box #1 Single Mode OS2 100 Meters SC/UPC to FC/UPC (Launch Cable)
Pulse Box #1 Single Mode OS2 100 meters SC/UPC to FC/UPC
- Singlemode 9/125µm 100 Meters
- SC/UPC to FC/UPC
SPECIFICATIONS
Singlemode UPC Cords
Connector Styles ST, SC, FC, LC
Fiber Length (user defined): 100 meters
Length Tolerance: +10% - 0
Insertion Loss: 0.1dB (typical), 0.3dB (max)
Back Reflection: -50dB
Operating Temperature: -20 to +70 degrees Celsius
Dimensions: 5” x 2.5”
Singlemode PC Cords
Connector Styles: ST, SC, FC, LC
Fiber Length (user defined): 100 meters
Length Tolerance: +10% - 0
Insertion Loss: 0.2dB (typical), 0.3dB (max)
Back Reflection: -40dB
Operating Temperature: -20 to +70 degrees Celsius
Dimensions: 5” x 2.5”
Singlemode APC Cords
Connector Styles: SC, LC, FC
Fiber Length (user defined): 100 meters
Length Tolerance: +10% - 0
Insertion Loss: 0.1dB (typical), 0.3dB (max)
Back Reflection: -65dB
Operating Temperature: -20 to +70 degrees Celsius
Dimensions: 5” x 2.5”
Multimode PC Cords
Connector Styles: ST, SC, FC, LC
Fiber Length (user defined): 100 meters
Length Tolerance: +10% - 0
Insertion Loss: 0.25dB (typical), 0.5dB (max)
Back Reflection: -25dB
Operating Temperature: -20 to +70 degrees Celsius
Dimensions: 5” x 2.5”
