Overview

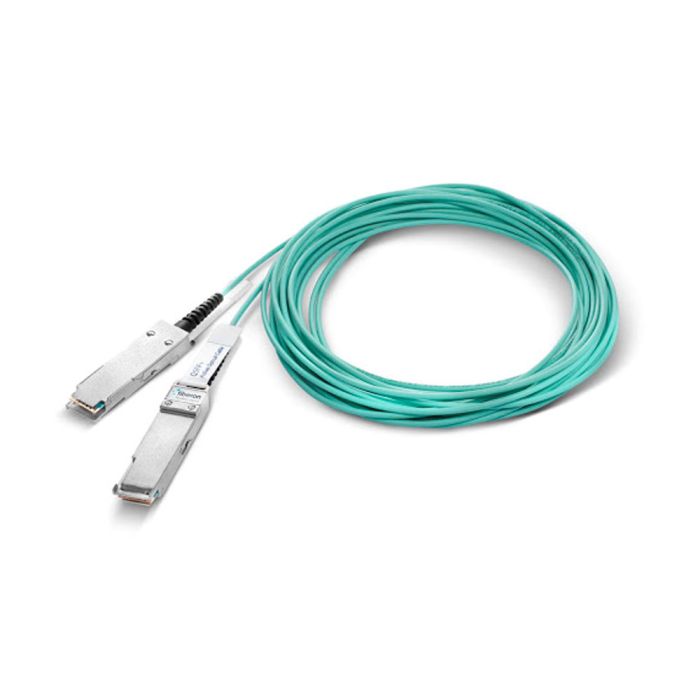

The QSFP28 Active Optical Cable (AOC) is a high-performance interconnect solution designed for 100G Ethernet applications. This cable integrates laser and receiver components to provide a complete optical solution for high-speed data transmission in data center environments. By utilizing OM3 multimode fiber, it provides a stable and efficient link between QSFP28 ports.
This active optical cable is engineered for short-reach applications, specifically supporting 100GBASE-SR4 standards. Its integrated design removes the need for separate transceiver modules and patch cords, simplifying installation and reducing the potential for connection points that can degrade signal integrity in high-density rack environments.
Key Features
-
100G Data Rate
Supports high-speed 100GBASE-SR4 throughput for demanding network traffic. -
Integrated AOC Design
Combines optics and cable into one unit for easier deployment and simplified cable management. -
MSA Compatible
Adheres to Multi-Source Agreement standards to ensure interoperability with standard QSFP28 hardware. -
OM3 Fiber Medium
Optimized for 100G short-reach optical communication performance. -
10 Meter Length
Provides sufficient reach for interconnecting equipment within rack rows or adjacent cabinets.
Applications
- 100G Ethernet switches and routers
- Data center inter-rack connections
- High-performance computing (HPC) clusters
- Storage Area Networks (SAN)
Technical Specifications
| Specification | Value |
|---|---|
| Cable Type | Active Optical Cable (AOC) |
| Fiber Type | OM3 Multimode |
| Connector A | QSFP28 |
| Connector B | QSFP28 |
| Data Rate | 100G |
| Standard | 100GBASE-SR4 / MSA Compliant |
| Length | 10 Meters |
Frequently Asked Questions
What is an Active Optical Cable?
An AOC is a cable assembly that uses electrical-to-optical conversion on the cable ends to improve speed and distance performance compared to pure copper cables.
Is this cable compatible with non-proprietary switches?
Yes, this cable is MSA (Multi-Source Agreement) compliant, which allows it to function in equipment that adheres to standard QSFP28 interface specifications.
Can I use this for 40G applications?
This cable is specifically configured for 100GBASE-SR4; verify your switch port capabilities if you intend to use it for lower-speed legacy applications.
Does this cable require cleaning?
While AOCs are factory-sealed, it is good practice to inspect and clean the connector ends if they are disconnected and reconnected, following standard fiber optic cleaning procedures.
What does the 10m length include?
The 10m length refers to the total reach of the assembly from connector end to connector end.
