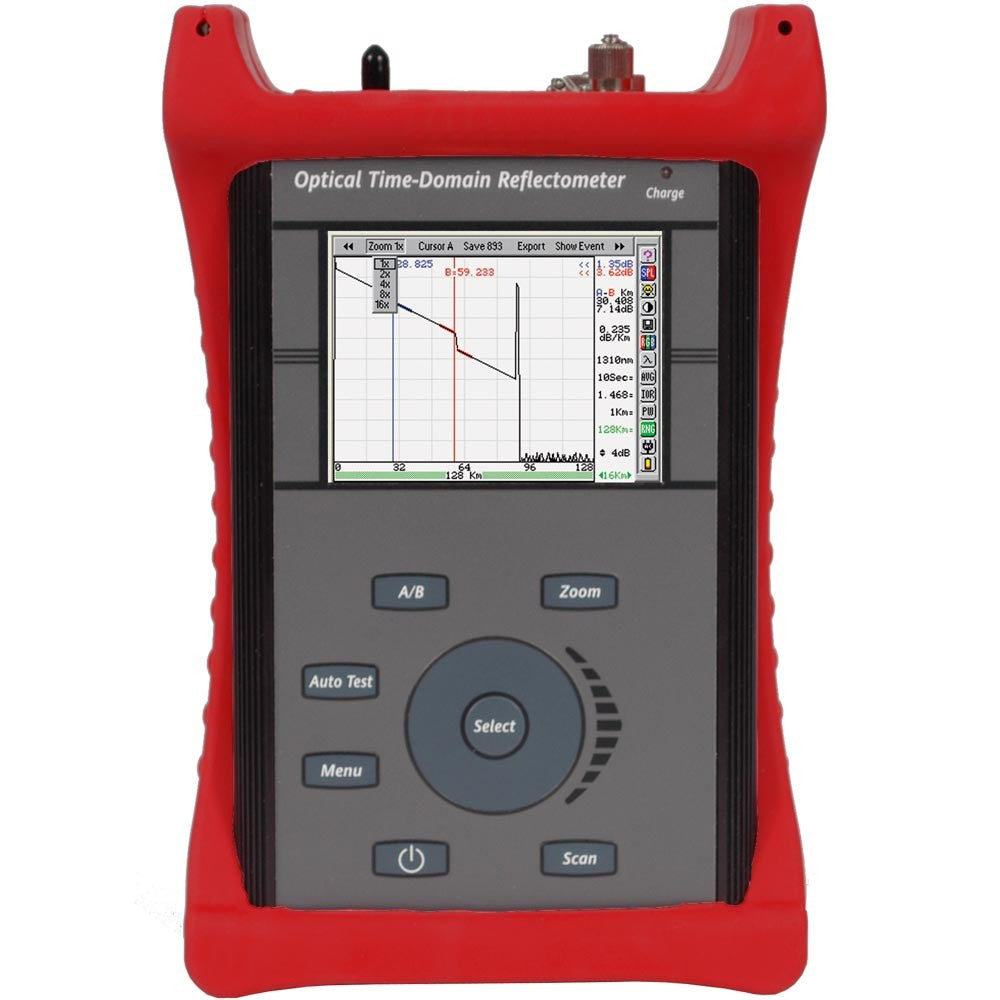

The Advanced Mini Quad Wave OTDR incorporates all the features that are truly needed in hand-held OTDRs,  speed, dynamic range, easy to read color display, rugged package, short dead Zone, light weight, ease of use. All of these features are offered at an affordable price and they are what make the Advanced Mini Quad Wave OTDR ideal for everyday use in the field on a wide variety of networks. This OTDR can be operated by the novice while at the same time be appreciated by the seasoned user.

Testing is made simple and fast with the press of the Auto Test button. Examine the trace using the straight forward zoom feature, A/B cursor selection button and touch-wheel. Zero in on events fast with the powerful Event Selection feature or with the event analysis table.

The Advanced Mini OTDR's abundant dynamic Range and a <1 meter dead zone, makes it ideal for links up to 160km as well as being perfect for short LAN links within the facility. Weighing in at just 2.0 pounds with a hardened enclosure this OTDR is ideal for all conditions.

Trace analysis and reporting is fast and easy with a Pass/Fail feature, onboard event table or the supplied Telcordia SR4731 compatible software with multi-trace capability. The OTDR has on board storage of 500 traces with the ability to download traces directly to your computer via USB cable or use a USB Flash Drive.

Use the optional power meter and light source capabilities to accomplish loss test measurements. When paired with a companion power meter or light source the units have auto-wavelength and auto-test capabilities.

• 8, 10 or 12 Wavelengths In One OTDR
• 36 dB Dynamic Range
• Auto Center/Auto Pass/Fail Video Scope Available
• PM, LS and VFL Option
• Fib-R-Map Comprehensive Event Analysis
• Trace Comparison with Trace Overlay
• Interactive Event Table with Pass/Fail
• 8 Hour Battery Life
• Report Generation Software Included
