Overview

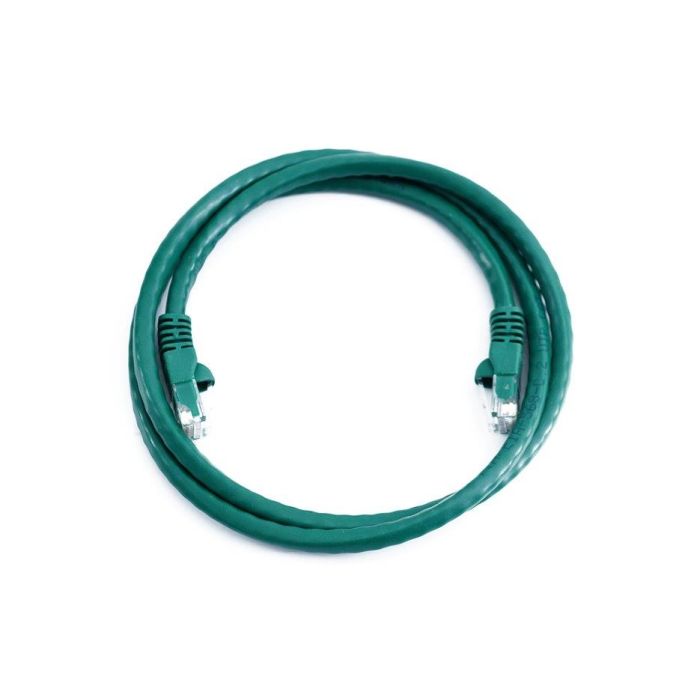

The Quest Cat 5e patch cord is designed for high-performance network connectivity in professional data environments. Featuring 4-pair stranded unshielded construction, this 50-foot assembly is engineered to provide stable data transmission while meeting or exceeding industry standards for Cat 5e performance.
Equipped with pre-terminated 8-position RJ45 plugs and integrated snagless boots, this cable facilitates easy installation in high-density rack spaces while protecting the connector latch from breakage. With a non-plenum (CMR) fire safety rating, it is suitable for vertical riser applications within commercial and enterprise buildings.
Key Features
-
Cat 5e Performance
Meets or exceeds TIA/EIA standards to ensure reliable high-speed data transfer. -
Snagless Boots
Protects the RJ45 locking tab to prevent accidental snagging and breakage during installation or moves. -
24 AWG Conductors
Standard copper gauge for optimal signal integrity in patch applications. -
4-Pair Stranded Construction
Provides the necessary flexibility for patch panels and equipment connections without compromising performance. -
Universal Wiring
Configured for T568A/T568B compatibility to support standard networking architectures. -
CMR Rated
Non-plenum (Riser) rating for safer installation in vertical cable runs through floors.
Applications
- Local Area Networks (LAN)
- Patch panel to switch connections
- Workstation to wall outlet connectivity
- Data center equipment patching
- Commercial riser cabling
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | CT608050GN |
| Cable Type | Cat 5e Patch Cord |
| Length | 50 ft |
| Connector Type | RJ45 (8-Position) |
| Conductor Gauge | 24 AWG |
| Stranding | Stranded |
| Wiring Scheme | Universal (T568A/T568B) |
| Jacket Rating | CMR (Non-Plenum) |
| Color | Green |
| Boot Style | Snagless |
Frequently Asked Questions
Is this cable suitable for use in air handling plenums?
No, this cable is CMR rated (Non-Plenum/Riser) and should not be used in HVAC plenum spaces.
Can this cable be used for Gigabit Ethernet?
Yes, Category 5e cabling is officially rated for 1000BASE-T (Gigabit) Ethernet applications.
Does the cable support both T568A and T568B wiring?
Yes, the cable is wired for universal compatibility with both T568A and T568B standards.
What does the snagless boot feature provide?
The snagless boot is designed to protect the RJ45 connector clip from breaking when pulled through dense cabling or bundles.
Is the cable shielded?
No, this is an unshielded (UTP) patch cord.
