Overview

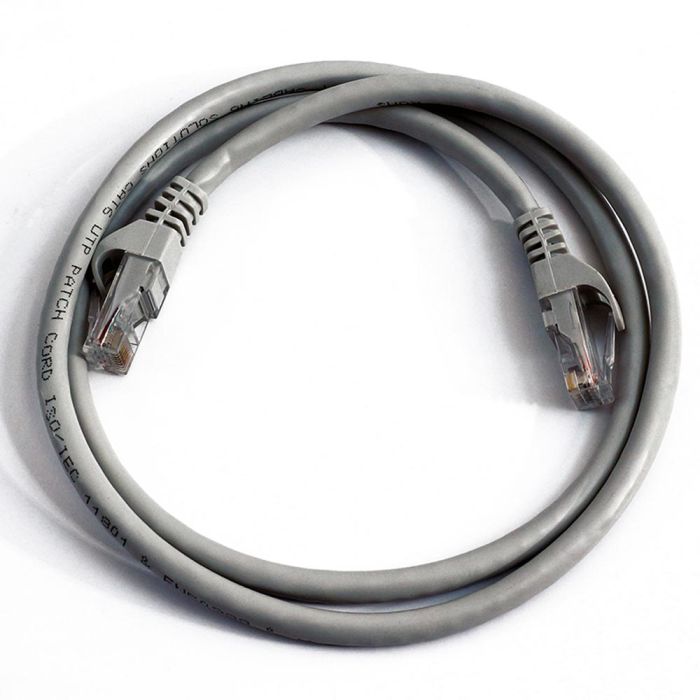

The Quest Cat 5e Patchcord is designed for reliable high-speed data transmission in local area network (LAN) environments. This 4-pair unshielded twisted pair (UTP) cable assembly is engineered to meet or exceed industry Cat 5e performance standards, ensuring consistent signal integrity for network applications.
Constructed with 24 AWG stranded conductors, this cable provides the necessary flexibility for patch panel management and equipment connectivity. Each assembly features factory-terminated 8-position RJ45 plugs protected by snagless boots, which simplify routing and prevent damage to the locking tab during installation in high-density rack environments. The cable is CMR (Non-Plenum) rated for general purpose indoor installations.
Key Features
-
24 AWG Conductors
Features 4-pair stranded copper wiring to ensure optimal flexibility and transmission performance. -
Universal Wiring
Wired to T568A/T568B standards for compatibility with various network configurations. -
Snagless Boot Design
Protects the RJ45 locking tab from breakage during moves, adds, and changes. -
Pre-Terminated RJ45
Eliminates the need for field termination, saving labor time and reducing installation errors. -
Cat 5e Performance
Designed to meet or exceed established Cat 5e performance criteria for dependable data transfer. -
CMR Rating
Non-Plenum (Riser) rated cable suitable for general indoor building deployments.
Applications
- Data center equipment connectivity
- LAN workstation patching
- VoIP phone system connections
- Network switch and router interlinks
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | CT608004GY |
| Cable Length | 4 ft |
| Fiber Type / Category | Cat 5e |
| Conductor Gauge | 24 AWG |
| Conductor Type | Stranded |
| Pair Count | 4 Pair |
| Shielding | Unshielded (UTP) |
| Connector Type | 8 Position RJ45 |
| Wiring Standard | T568A/T568B |
| Jacket Rating | Non-Plenum (CMR) |
| Color | Gray |
Frequently Asked Questions
Is this cable plenum rated?
No, this cable is CMR (Riser) rated and is intended for general indoor use, not for plenum air spaces.
Does this patchcord support both T568A and T568B wiring?
Yes, the cable is manufactured to support universal wiring, making it compatible with both T568A and T568B standards.
What does the snagless boot provide?
The boot covers the RJ45 connector locking tab to prevent it from catching on other cables or breaking during installation.
What is the conductor size?
This cable uses 24 AWG stranded copper conductors.
Is this a shielded cable?
No, this is an unshielded (UTP) patchcord.
