Overview

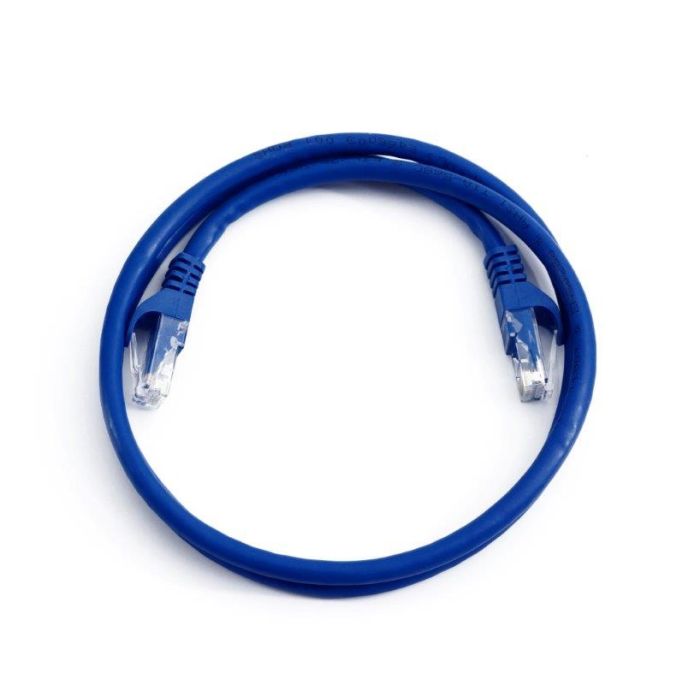

The Quest Cat 5e patch cord is designed for reliable high-speed data transmission in local area networks. Featuring a 4-pair stranded unshielded construction with 24 AWG conductors, this cable provides the flexibility required for patch panel connectivity and workstation routing.
Each cord comes pre-terminated with 8-position RJ45 plugs and includes snagless boots to protect the connector latch during installation. Rated for non-plenum (CMR) applications, these cables are suitable for general-purpose building wiring, supporting both T568A and T568B universal wiring configurations.
Key Features
-
24 AWG Conductors
Features stranded 4-pair unshielded cabling for consistent signal integrity and ease of management. -
Snagless Boots
Protects the RJ45 locking tab from breaking, ensuring a secure connection during frequent moves or changes. -
Universal Wiring
Compliant with both T568A and T568B standards for versatile deployment in existing network infrastructure. -
Non-Plenum (CMR) Rating
Designed for use in general-purpose horizontal cabling applications within commercial environments. -
Factory Pre-Terminated
Equipped with 8-position RJ45 plugs to reduce installation time and ensure consistent termination quality. -
Standard Performance
Engineered to meet or exceed Cat 5e performance requirements for reliable network data speeds.
Applications
- Data center equipment connectivity
- Network workstation patching
- VoIP phone systems
- General local area network (LAN) infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Quest |
| Part Number | CT608075BU |
| Cable Type | Cat 5e Patch Cord |
| Cable Length | 75ft |
| Conductor Gauge | 24 AWG |
| Pair Count | 4-Pair |
| Connector Type | 8 Position RJ45 |
| Jacket Rating | CMR (Non-Plenum) |
| Wiring Standard | T568A / T568B |
| Color | Blue |
Frequently Asked Questions
Is this cable plenum rated?
No, this is a CMR (Non-Plenum) rated cable intended for general-purpose applications.
Does this cable support T568B wiring?
Yes, it supports both T568A and T568B universal wiring standards.
What is the conductor size?
This cable uses 24 AWG stranded copper conductors.
Are the boots included?
Yes, this patch cord includes pre-installed snagless boots to protect the connector latch.
What type of connectors are used?
The cable is terminated with standard 8-position RJ45 plugs.
