Overview

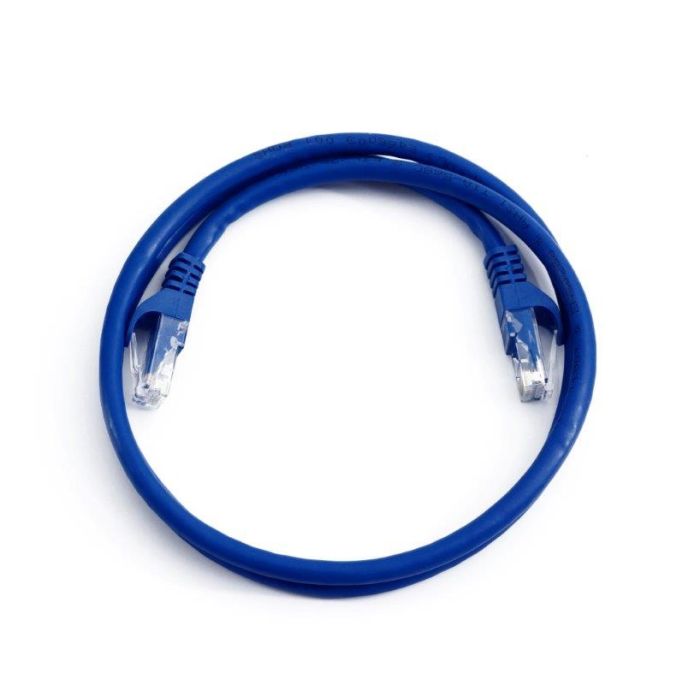

The Quest Cat5E Patch Cord is a pre-terminated network cable designed for high-speed data transmission in local area networks (LANs). This 2ft cable is engineered for reliable connectivity in data centers, office environments, and home network installations.
Constructed with 4-pair stranded copper conductors, this cable features a 24 AWG wire gauge and is encased in a durable non-plenum (CMR) rated jacket. The integrated snagless boots provide enhanced protection for the RJ45 connectors during installation, preventing damage to the locking tab and ensuring a long-lasting, secure connection.
Key Features
-
Snagless Boots
Designed to protect the RJ45 connector locking tab, simplifying cable routing in dense patch panels. -
24 AWG Stranded Conductors
Ensures flexibility and durability for repeated handling in patch environments. -
Universal Wiring
Compliant with T568A and T568B wiring standards for broad compatibility with existing network infrastructure. -
Cat 5e Performance
Engineered to meet or exceed industry standards for Cat 5e data transmission speeds. -
Non-Plenum (CMR) Rating
Suitable for installation in vertical riser pathways within buildings. -
Factory Terminated
Pre-installed 8-position RJ45 plugs ensure consistent electrical performance and save field termination time.
Applications
- Ethernet networking
- Patch panel connections
- Workstation to wall outlet connectivity
- VoIP phone systems
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Quest |
| Part Number | CT608002BU |
| Cable Type | Cat 5e |
| Cable Length | 2 ft |
| Color | Blue |
| Conductor Gauge | 24 AWG |
| Conductor Material | Stranded copper |
| Fiber Count | 4-pair |
| Connector Type | 8-position RJ45 |
| Rating | Non-Plenum (CMR) |
| Wiring Standard | Universal (T568A/T568B) |
Frequently Asked Questions
Are these cables shielded?
No, these are unshielded twisted pair (UTP) cables.
Can I use this cable for Gigabit Ethernet?
Yes, Cat 5e is rated for Gigabit Ethernet performance.
Does the cable come with boots?
Yes, it features snagless boots on both ends.
Is this cable plenum rated?
No, it is CMR (Riser) rated, which is intended for general building use and vertical risers, not air handling plenums.
What wiring pattern do these use?
They support universal wiring, compatible with both T568A and T568B pinouts.
