Overview

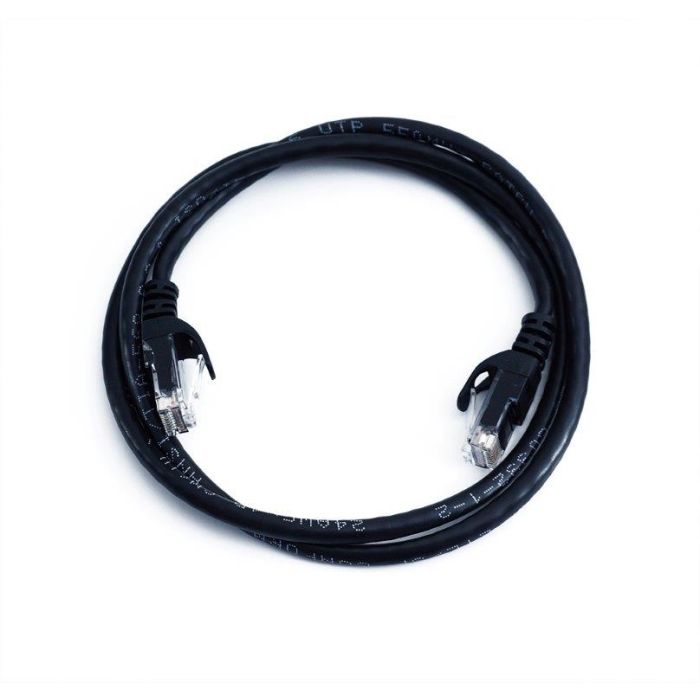

The Quest Cat5e Snagproof Patch Cord is a high-performance network cable designed for reliable data transmission in Ethernet environments. These 20ft jumpers feature a 4-pair stranded unshielded construction with 24 AWG conductors, providing the flexibility and durability required for patch panel connections and workstation links.
Designed for professional networking applications, these cables are Non-Plenum (CMR) rated, making them suitable for vertical riser pathways between floors. The snagless boot design protects the RJ45 connector tabs during installation and removal, preventing breakages and ensuring long-term connectivity in busy data centers or office settings.
Key Features
-
Snagless Boot Design
Prevents the RJ45 connector tab from snagging during cable routing for easier installs. -
Category 5e Performance
Engineered to meet or exceed current industry standards for high-speed data networking. -
4-Pair Stranded Construction
Uses 24 AWG conductors for excellent flexibility and signal integrity in short-run applications. -
Universal Wiring Compatibility
Supports both T568A and T568B wiring configurations for versatile deployment. -
Non-Plenum (CMR) Rating
Meets commercial building requirements for vertical riser installations. -
Pre-Terminated
Factory-terminated with 8-position RJ45 plugs to ensure consistent, reliable performance out of the box.
Applications
- Data center equipment patching
- Workstation to wall outlet connections
- Local Area Network (LAN) infrastructure
- VoIP and network device deployments
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Quest |
| Part Number | CT608020BK |
| Cable Type | Cat5e |
| Cable Length | 20ft |
| Conductor Gauge | 24 AWG |
| Construction | 4-pair stranded, unshielded |
| Connectors | 8-position RJ45 plug |
| Rating | Non-Plenum (CMR) |
| Wiring Standard | Universal (T568A/T568B) |
Frequently Asked Questions
Is this cable plenum rated?
No, this is a Non-Plenum (CMR) rated cable intended for vertical riser pathways.
Can I use this for T568B wiring?
Yes, the cable supports universal wiring including both T568A and T568B standards.
Does it include snagless boots?
Yes, it features snagless boots to protect the RJ45 tabs.
What is the conductor size?
This cable uses 24 AWG stranded conductors.
How many pairs are inside the cable?
This is a 4-pair unshielded twisted pair cable.
