Overview

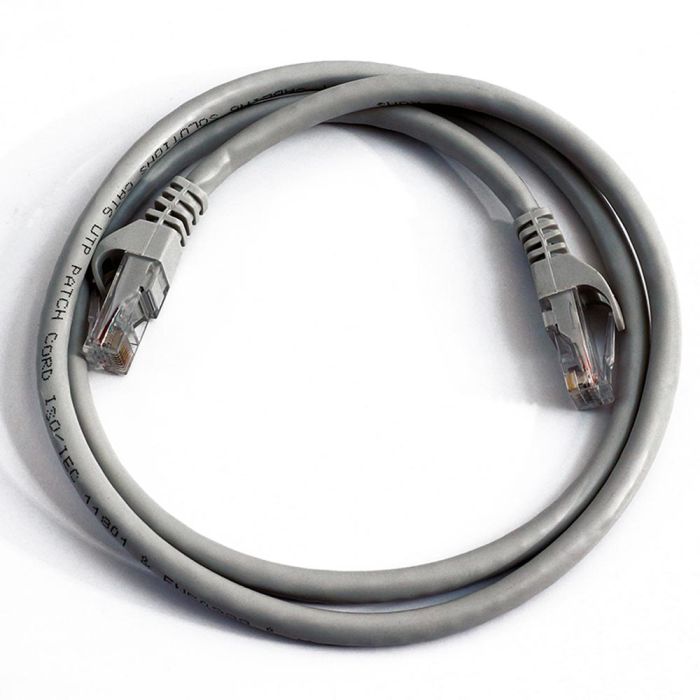

The Quest Cat5e Snagproof Patch Cord is a high-performance network cable designed for reliable data transmission in professional local area network (LAN) environments. This 20ft cable features a 4-pair stranded unshielded construction with 24 AWG conductors, providing the flexibility needed for patch panel and workstation connections.
Engineered for durability and ease of use, this patch cord is equipped with snagless boots that protect the release tab on the RJ45 connector during installation or removal in high-density rack environments. It is rated for Non-Plenum (CMR) applications, making it suitable for general-purpose indoor installation where riser-rated cabling is required.
Key Features
-
Snagless Boot Design
Features integrated snagless connectors to prevent tab breakage, ensuring a long-lasting secure connection during frequent equipment moves. -
Category 5e Performance
Meets or exceeds TIA/EIA Cat 5e industry standards, supporting reliable data rates for standard network applications. -
Universal Wiring
Wired to T568A/T568B standards for seamless compatibility with standard networking hardware. -
24 AWG Stranded Conductors
Utilizes flexible stranded copper wiring, designed to withstand the bending and movement associated with patch cord use. -
Unshielded Construction
Standard 4-pair UTP construction offers effective performance for typical office and data center environments. -
Non-Plenum (CMR) Rated
Jacket material meets safety standards for vertical tray and riser installation in commercial buildings.
Applications
- Workstation connectivity
- Patch panel to switch interconnects
- VoIP phone deployments
- General purpose LAN infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | CT608020GY |
| Cable Type | Cat5e |
| Cable Length | 20ft |
| Conductor Gauge | 24 AWG |
| Conductor Type | Stranded |
| Pair Count | 4-pair |
| Shielding | Unshielded |
| Connector A | RJ45 |
| Connector B | RJ45 |
| Wiring Standard | T568A / T568B |
| Rating | Non-Plenum (CMR) |
Frequently Asked Questions
Does this cable support Gigabit Ethernet?
Yes, Category 5e cabling is designed to support up to 1000BASE-T (Gigabit) Ethernet speeds at the specified channel lengths.
What does the snagless boot feature do?
The snagless boot covers the plastic retention clip on the RJ45 connector, preventing it from catching on other cables or equipment and breaking during installation or removal.
Is this cable shielded (STP) or unshielded (UTP)?
This is an unshielded (UTP) cable, which is standard for most office and general data networking applications.
Can I use this for plenum ceiling spaces?
No, this cable is CMR (Riser) rated. It should not be used in environmental air-handling spaces (plenum spaces) which require a CMP rating.
What is the conductor gauge?
This patch cord uses 24 AWG stranded conductors.
