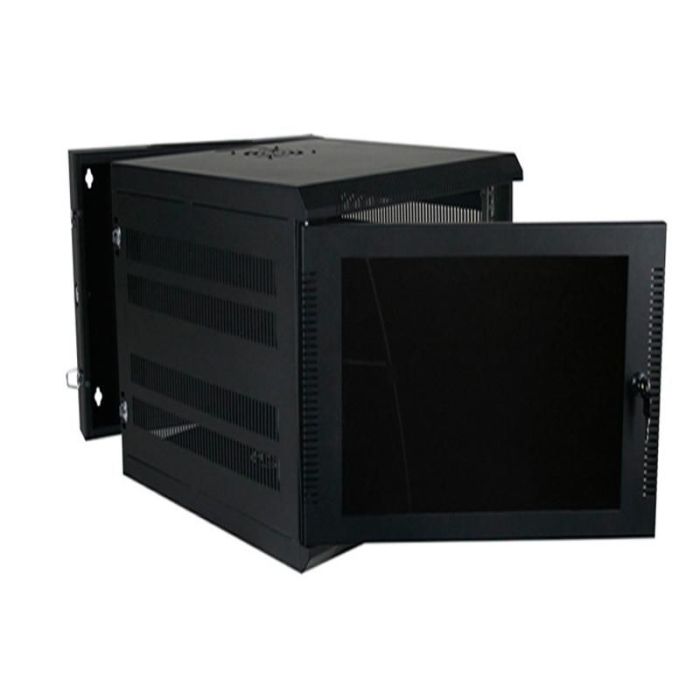

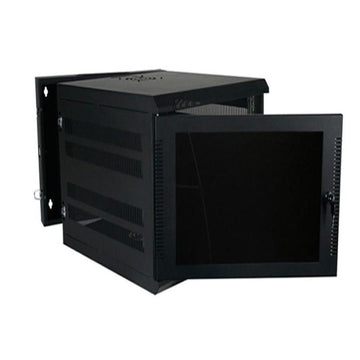

Quest Wall Mount Enclosure EZ Assembly 7RU 19" Mounting Black

Overview

The Quest EZ Assembly 600 Series Wall Mount Enclosure provides a secure and organized 7RU mounting environment for standard 19-inch rack-mount networking equipment. Designed for ease of installation, this unit ships in a knockdown box, simplifying logistics and storage for contractors and data center operators.

Constructed from robust 18-gauge steel with a durable black finish, the enclosure is built to maintain equipment integrity in varied environments. It includes vented fixed side panels and pre-installed 110VAC 80CFM cooling fans to manage heat dissipation effectively. The design features a lockable, field-reversible front door that can be configured for left or right-side opening, offering flexible access to internal components.

Key Features

• 7RU Capacity
  Provides seven rack units of space for housing patch panels, switches, and other standard 19-inch equipment.
• EZ Assembly Design
  Ships in a knockdown format to reduce shipping footprint and simplify transportation to installation sites.
• Field-Reversible Door
  Lockable front door can be set to open from the left or right, allowing for installation in tight spaces.
• Integrated Cooling
  Includes pre-installed 110VAC 80CFM cooling fans to ensure consistent airflow and equipment temperature regulation.
• Vented Side Panels
  Fixed vented side panels allow for passive heat ventilation throughout the enclosure.
• Adjustable Mounting Rails
  Features adjustable cage nut rails for flexible component depth positioning.
• Construction
  Manufactured from 18-gauge steel for long-term durability in industrial settings.

Applications

• Data Closets
• Small Business Network Installations
• Industrial Equipment Enclosures
• Telecommunications Infrastructure

Technical Specifications

Frequently Asked Questions

Is the front door reversible?
Yes, the lockable front door is field-reversible to allow for left or right-side opening.

Does this enclosure come pre-assembled?
No, it is an EZ Assembly model that ships in a knockdown box for field assembly.

What is the cooling capacity?
The unit comes with pre-installed 110VAC 80CFM cooling fans.

Are cage nuts included?
Yes, the unit includes adjustable cage nut rails and cage nuts with #12-24 mounting screws.

What is the material construction?
The enclosure is constructed from 18-gauge steel with a black finish.

Downloads

• Product PDF
