Overview

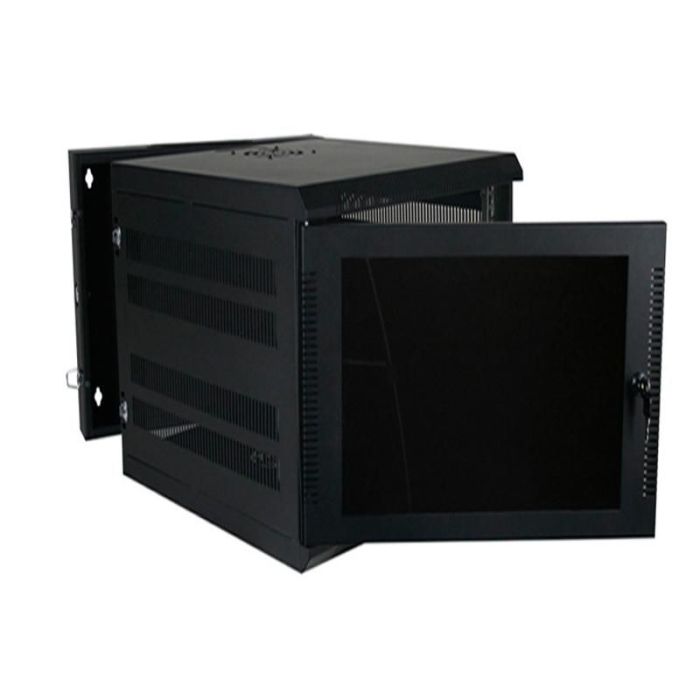

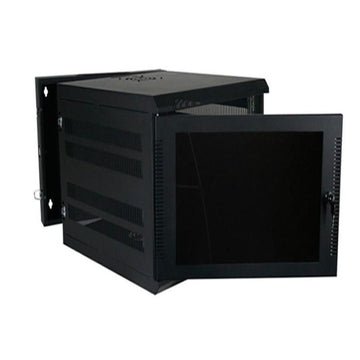

The Quest EZ Assembly 600 Series is a 9RU wall-mount enclosure designed for organized and secure housing of 19-inch rack-mount equipment. This enclosure features a sturdy 18-gauge steel construction finished in black, providing a robust solution for networking and data infrastructure in telecommunication rooms or office environments.
The enclosure is engineered for efficient airflow, incorporating vented fixed side panels and pre-installed 110VAC 80CFM cooling fans to maintain optimal operating temperatures for sensitive electronics. Its EZ assembly design allows for easy setup, and the unit ships in a knockdown box to minimize storage space and shipping complexity.
Key Features
-
9RU Rack Space
Provides vertical mounting space for standard 19-inch rack-mount equipment. -
EZ Assembly Design
Ships in a knockdown box to reduce shipping footprint and streamline on-site assembly. -
Integrated Cooling
Includes pre-installed 110VAC 80CFM cooling fans to improve equipment longevity through thermal management. -
Lockable Front Door
Features a locking mechanism for secure equipment access, with field-reversible hinges for left or right-side opening. -
Vented Side Panels
Fixed side panels feature integrated vents to promote continuous air circulation. -
Adjustable Mounting Rails
Includes cage nut rails that allow for flexible depth positioning of equipment. -
Numbered Rack Units
Vertical rails are marked with RU spacing index to simplify component placement and documentation.
Applications
- Data Centers
- Telecommunication Closets
- Edge Networking Deployments
- Server Rooms
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Quest |
| Rack Units | 9RU |
| Mounting Standard | 19-inch |
| Dimensions | 18"H x 20.5"W x 20"D |
| Material | 18 Gauge Steel |
| Color | Black |
| Cooling | 110VAC 80CFM Cooling Fans (Pre-installed) |
| Door Configuration | Lockable, Field Reversible |
| Mounting Hardware | #12-24 Mounting Screws and Cage Nuts Included |
Frequently Asked Questions
Is the front door reversible?
Yes, the front door can be field-reversed for either left or right-side opening to accommodate tight installation spaces.
Does this enclosure include cooling fans?
Yes, it comes with pre-installed 110VAC 80CFM cooling fans to assist with thermal management.
What is the gauge of the steel?
The enclosure is manufactured using 18-gauge steel.
Does it come fully assembled?
No, it ships in a knockdown box to facilitate efficient logistics and ease of transport.
What mounting hardware is provided?
The enclosure includes adjustable cage nut rails, cage nuts, and standard #12-24 mounting screws.
