Overview

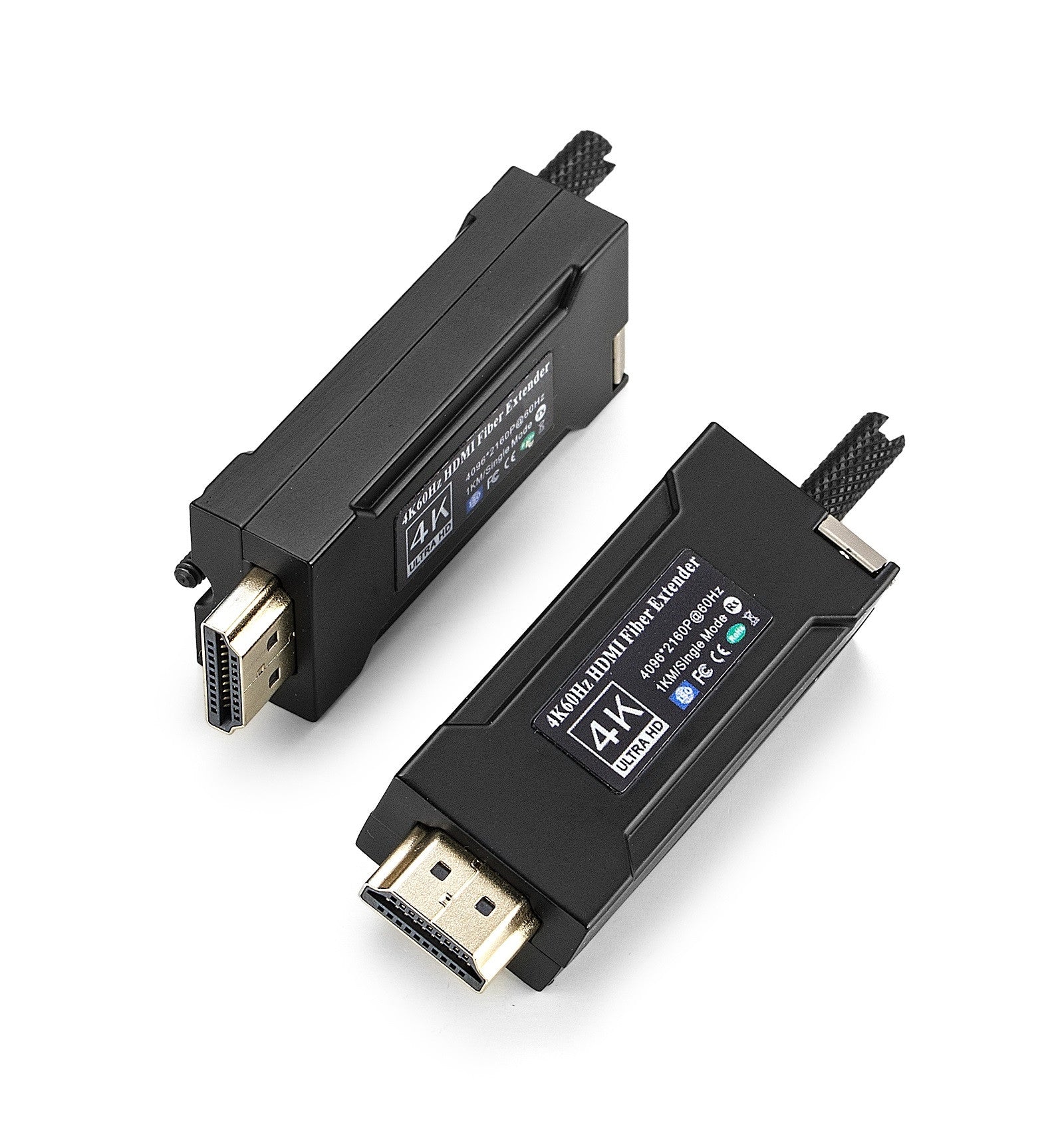

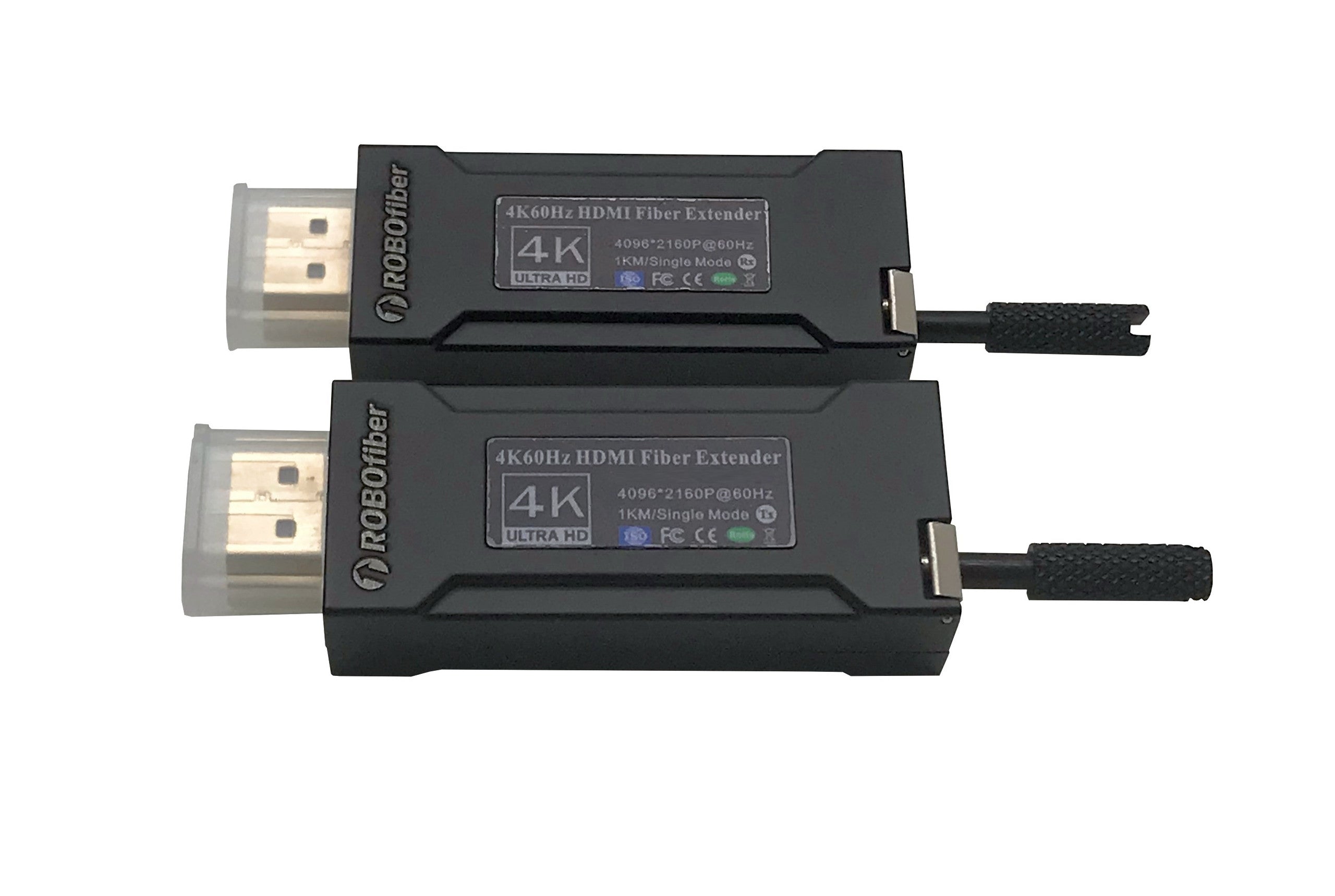

The ROBOfiber RB-4K60-MINI is a comprehensive set including both a transmitter and receiver unit designed for the long-distance extension of HDMI 2.0 (Ultra HD) signals via fiber optic cabling. Utilizing an advanced 10G data rate conversion chip, this system supports 4K resolution at 60Hz. The units feature an integrated single LC/UPC optical port, allowing for seamless transmission across single-mode fiber up to 10km or multi-mode fiber up to 300m. The set supports essential signal protocols including HDCP and EDID, and offers full compatibility with 7.1 channel PCM surround sound and DVI signals.

Key Features

• 4K@60Hz Resolution Support: Transmits high-definition uncompressed video at 60Hz, ensuring smooth motion and high-fidelity visuals for Ultra HD displays.
• Extended Fiber Reach: Operates over a single strand of fiber, providing a transmission distance of up to 10km on single-mode fiber or 300m on multi-mode fiber for flexible installation range.
• Hardened Industrial Design: Features a metal chassis built for extreme environments, with an operating temperature range of -20 to +70°C for consistent performance in challenging conditions.
• Plug and Play Functionality: Requires no internal settings or software configuration, allowing for rapid deployment and immediate operation upon connection.

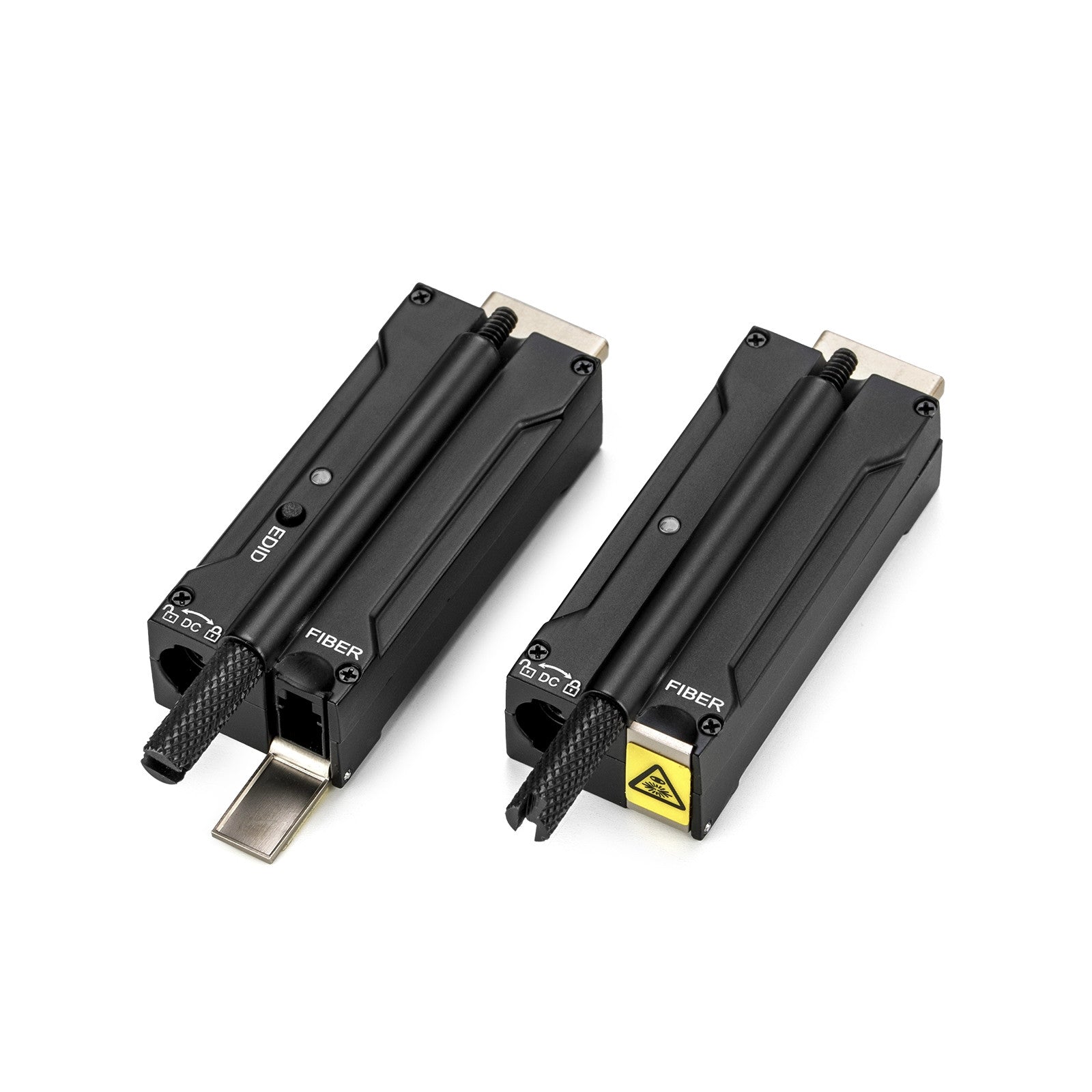

• Integrated Optical Connectivity: Equipped with a built-in LC/UPC connector and self-shutting dust protection to ensure a secure fiber link and maintain signal integrity.

Technical Specifications

RB-4K60-MINI PDF spec sheet 1
RB-4K60-MINI PDF spec sheet 2
