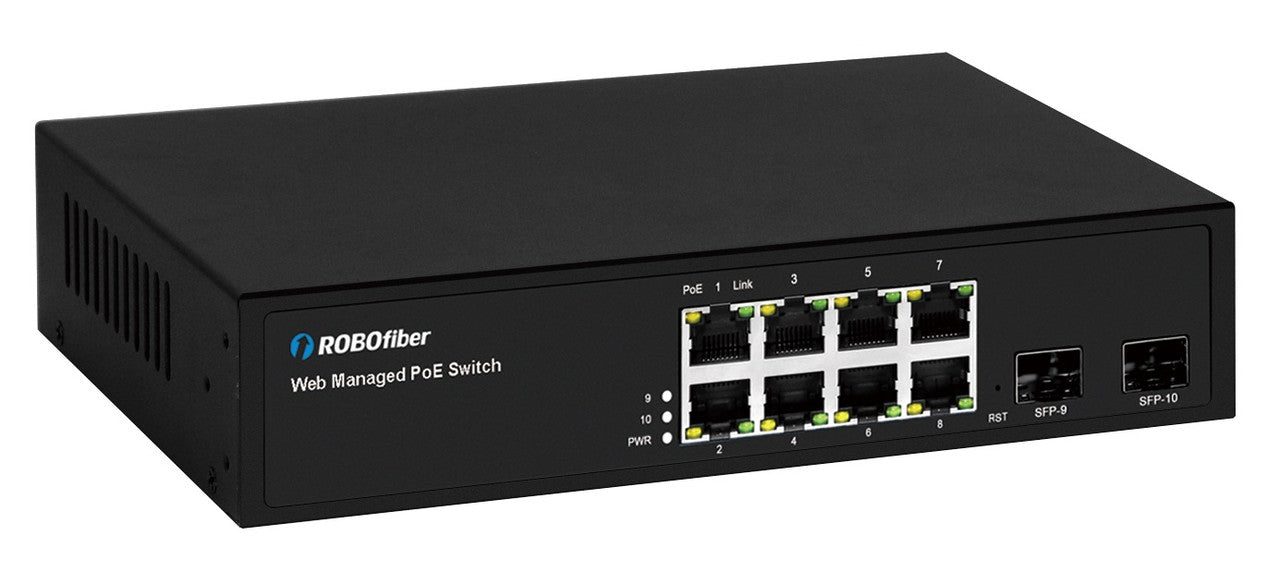

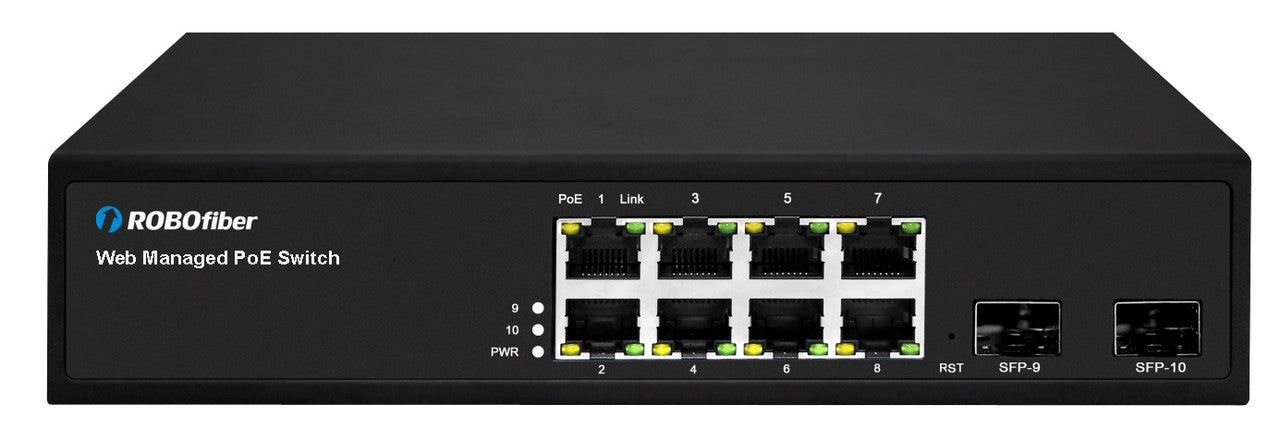

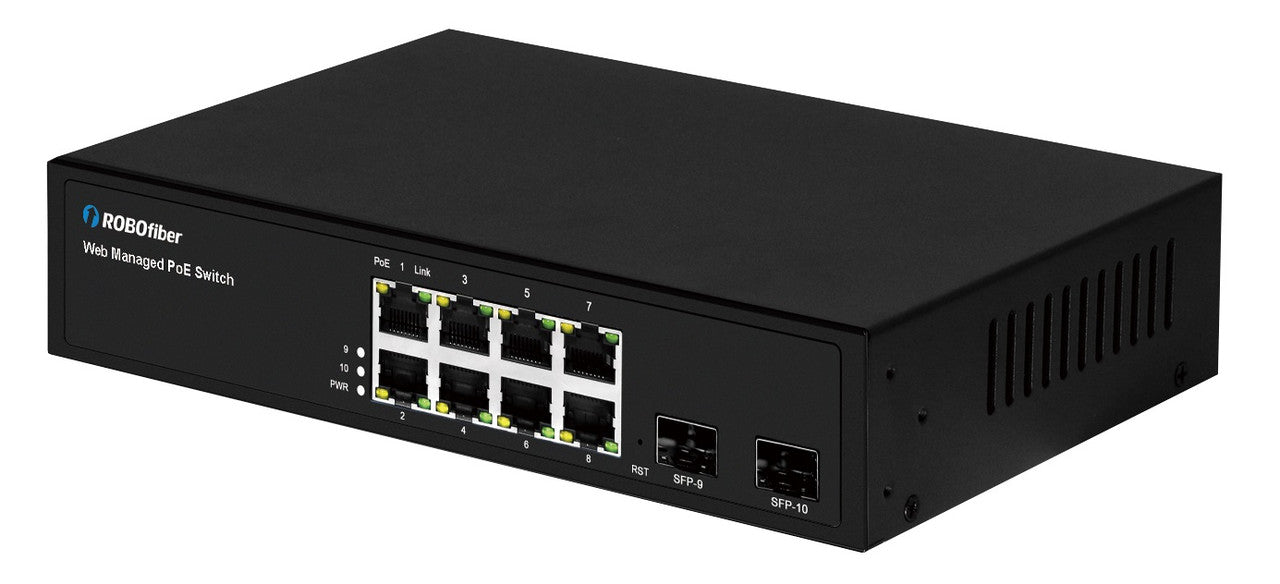

RB-802L-PSE Gigabit Ethernet 8+2 Gigabit ports high power web managed POE switch (125W budget)
The RB-802L-PSE is a high-performance Layer 2 Smart Ethernet Switch featuring 8 Gigabit Ethernet (10/100/1000Base-Tx) ports and 2 SFP (100/1000Base-X) fiber uplink slots.
This web-managed switch is designed for commercial and security applications, offering a compact metal desktop form factor with the option for 19-inch rack mounting. It features an intuitive web-based GUI for easy configuration of demanding network settings.
Equipped with advanced Power over Ethernet (PoE) capabilities, the switch automatically detects and powers IEEE 802.3af/at-compliant devices. Port 1 supports the IEEE 802.3bt standard, delivering up to 90W of power, while ports 2 through 8 provide up to 30W each.
With a total power budget of 125W, this switch is an ideal solution for deploying WiFi access points, IP cameras, or IP phones through a single cable, eliminating the need for local power outlets.
Additional management features include VLAN support, Quality of Service (QoS), and specialized PoE PD device reset options. The device also includes 4kV surge protection on all TP ports for enhanced system reliability.
Download Product Spec Sheets:
| Specification | Details |
|---|---|
| UPC | 811704017948 |
| Interface Type | Gigabit Ethernet, Fast Ethernet |
| Management | Web-managed (Layer 2) |
| Tx Distance | 100m (Copper) |

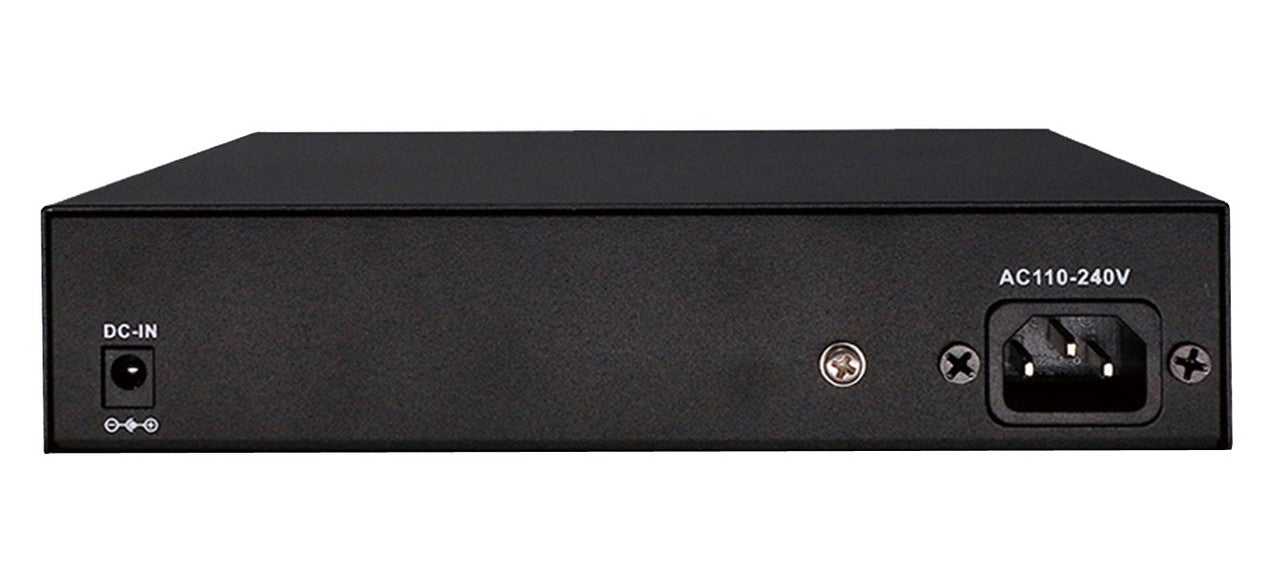

| Power Type | AC Power Cord (Included) |
| Connectors | RJ45 (Ethernet), SFP (Fiber) |
| PoE Output | Port 1: 90W (802.3bt); Ports 2-8: 30W (802.3at); 125W Total Budget |
| Switch Type | Layer 2 Smart Switch |
| Surge Protection | 4kV on TP ports |
| Features | 9K Jumbo frame support, VLAN, QoS, 19" rack mountable (optional) |
