Overview

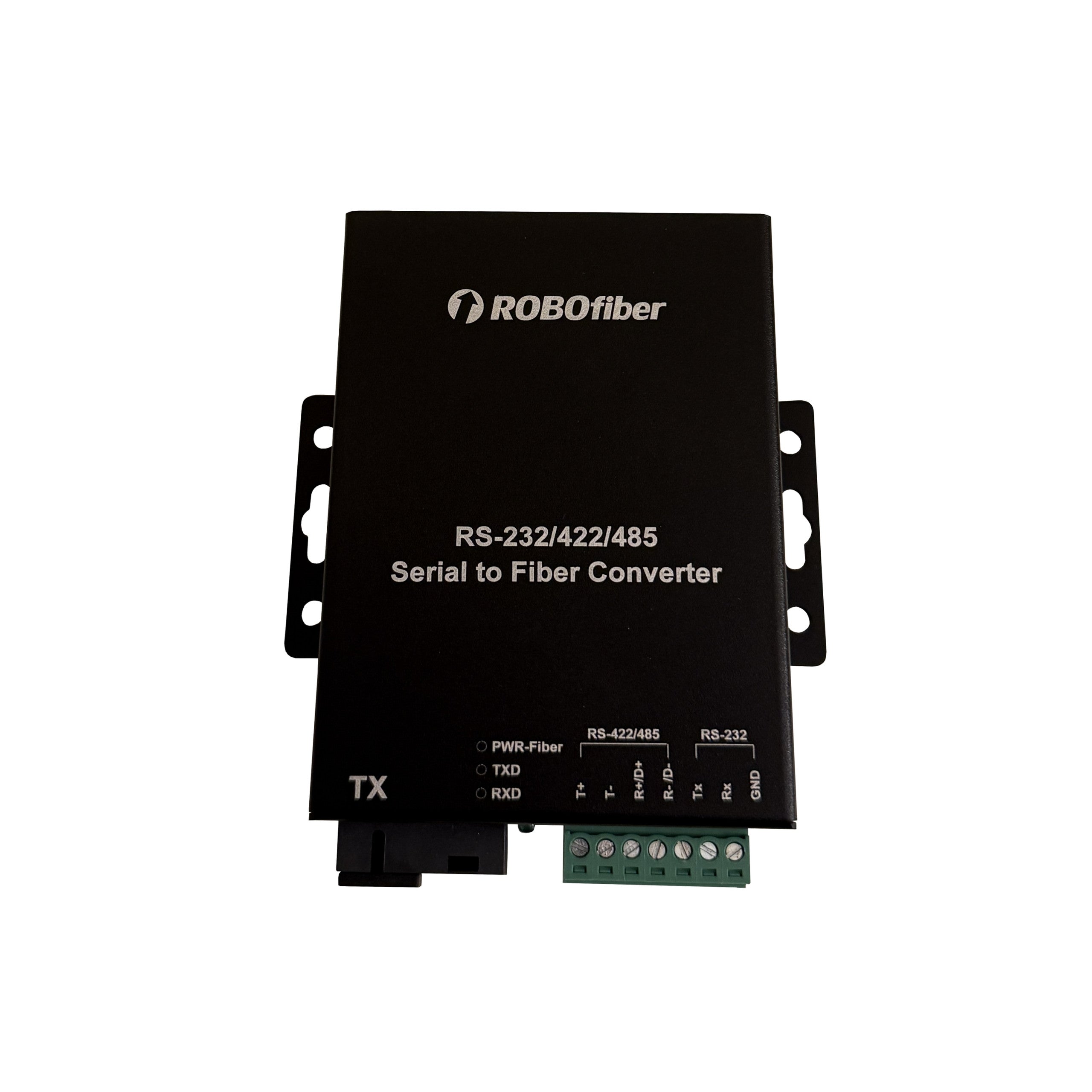

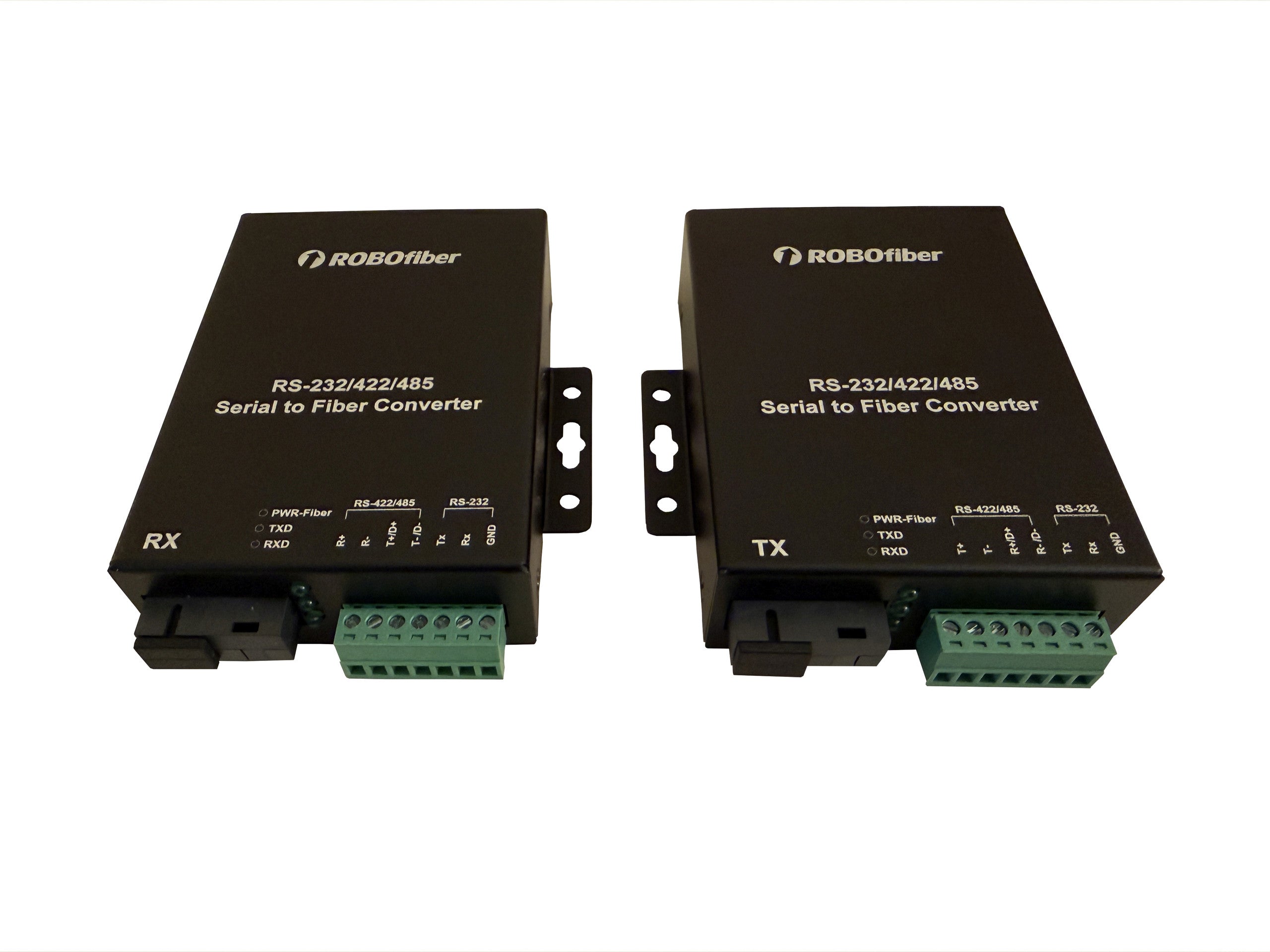

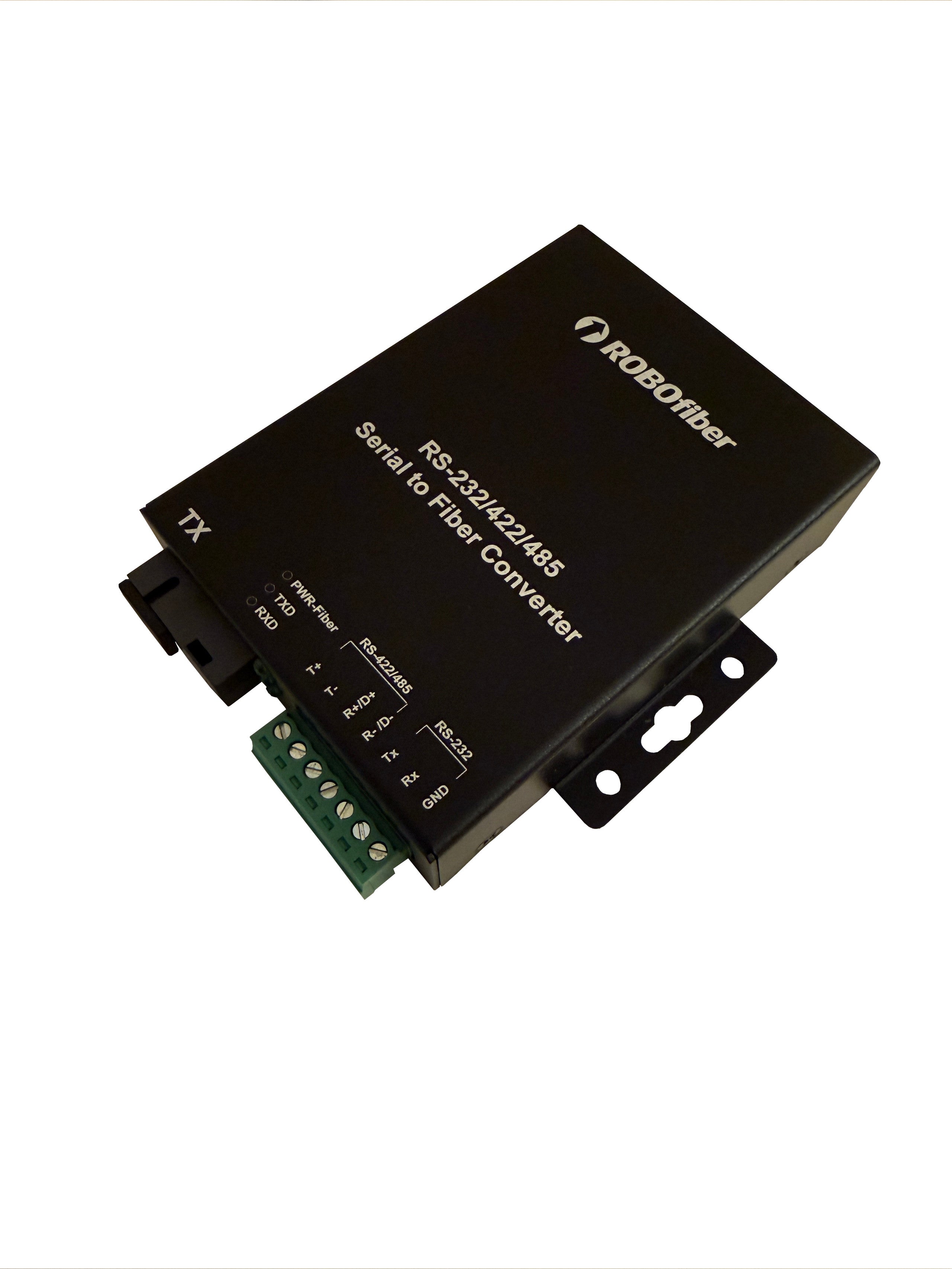

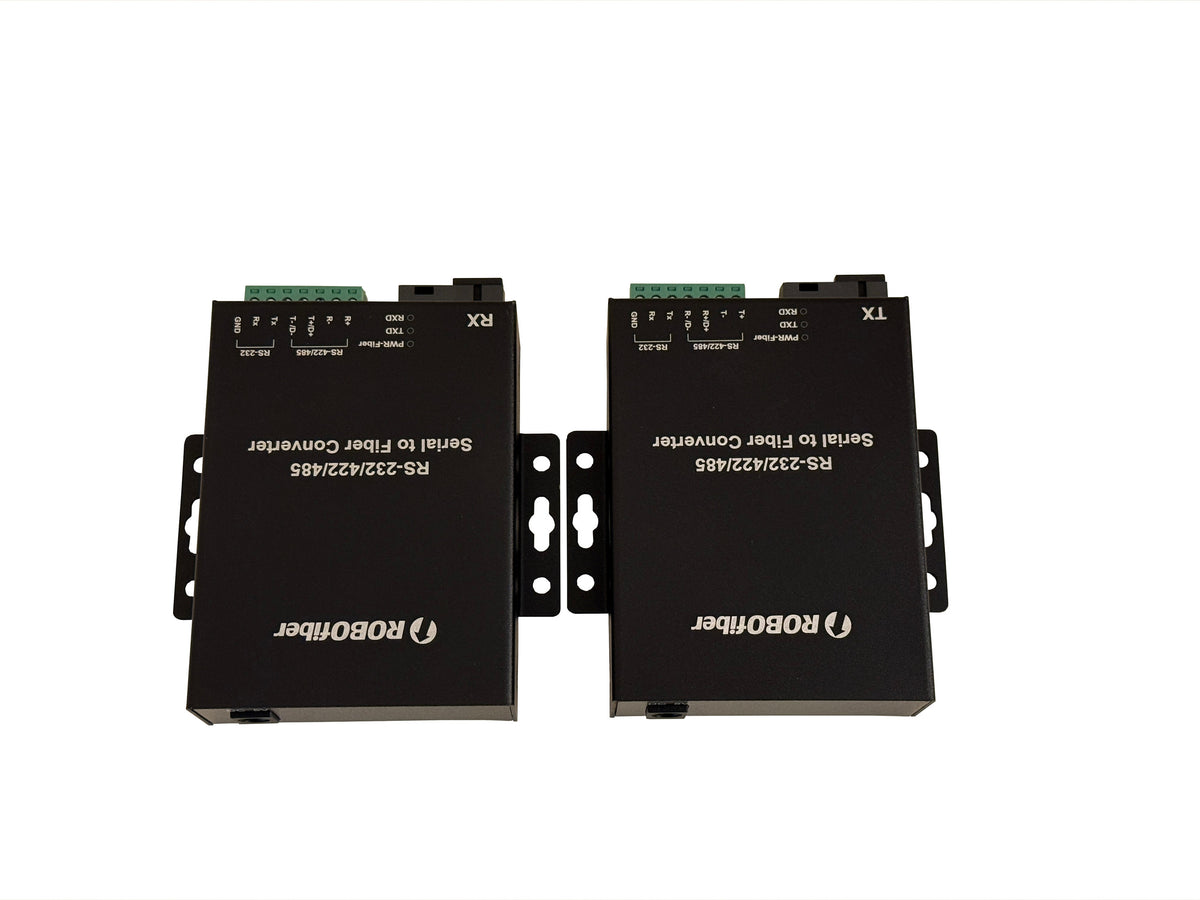

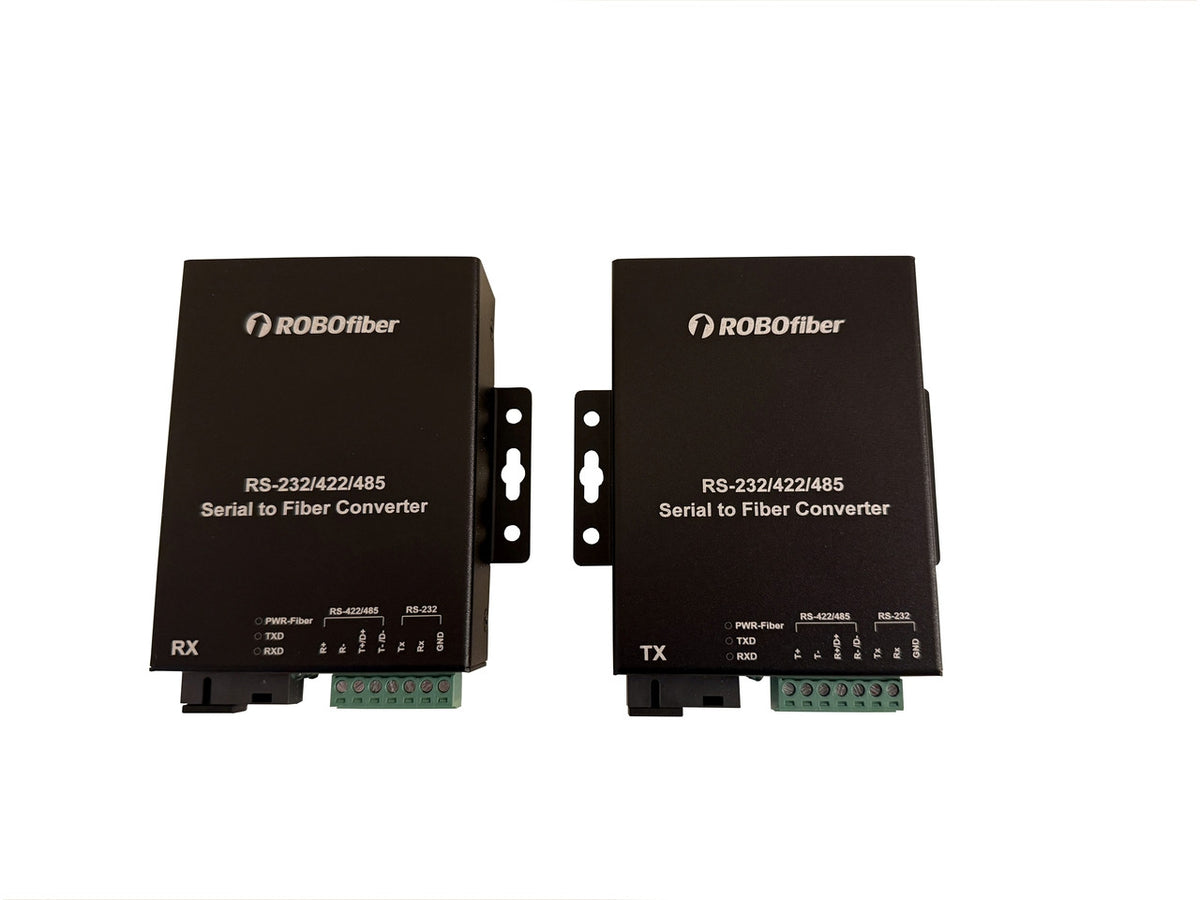

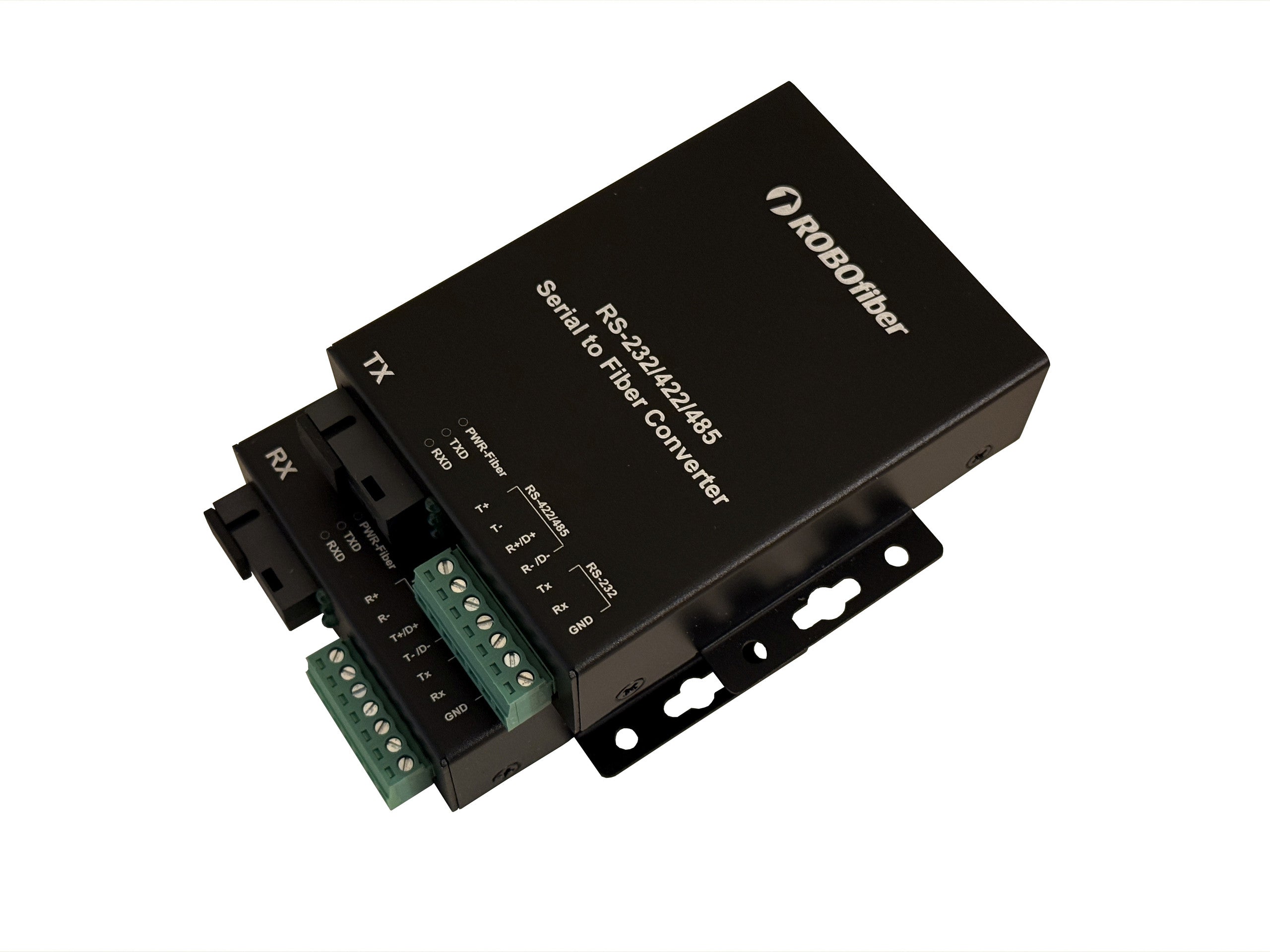

The RB-SERIAL is a professional-grade set of two fiber media converters designed to extend asynchronous serial interfaces over a single strand of fiber optic cabling. This set supports both RS-232 and RS-485/422 interfaces, allowing them to operate simultaneously and independently over either multi-mode or single-mode fiber.
Built for industrial durability, these converters feature a fan-less aluminum alloy housing and are designed to provide reliable data transmission in harsh environments. They are ideal for applications requiring long-distance serial communication while maintaining immunity to electromagnetic interference (EMI) and electrical surges.
Downloads
Key Features
-
Simultaneous Dual-Interface Support
Supports independent transmission of one RS-232 and one RS-485/422 interface over a single fiber strand, reducing cabling requirements. -
Extended Transmission Distance
Capable of distances up to 20km over single-mode fiber or up to 1km over multi-mode fiber, providing flexible deployment options. -
Industrial Hardened Design
Rated for operating temperatures between -20°C and 70°C, ensuring stability in non-climate-controlled environments. -
Surge and Electrostatic Protection
Features built-in 1500W surge protection and 15KV electrostatic discharge (ESD) protection to prevent equipment damage. -
High-Speed Serial Communication
Supports baud rates up to 256 Kbps, accommodating various industrial control and data collection devices. -
Simple Installation
Plug-and-play operation with automatic signal detection, requiring no manual configuration or specialized software.
Applications
- PC and Workstation serial extension
- PTZ camera control systems
- Digital power meter monitoring
- Industrial PLC communication
- HMI (Human Machine Interface) connectivity
- Sensor data collection
Package Contents
- 2 x RB-SERIAL Fiber Media Converter Units
- 2 x AC to 5V DC Power Adapters
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | ROBOfiber |
| Part Number | RB-SERIAL |
| Optical Connector | Simplex SC |
| Wavelengths | 1310/1550nm |

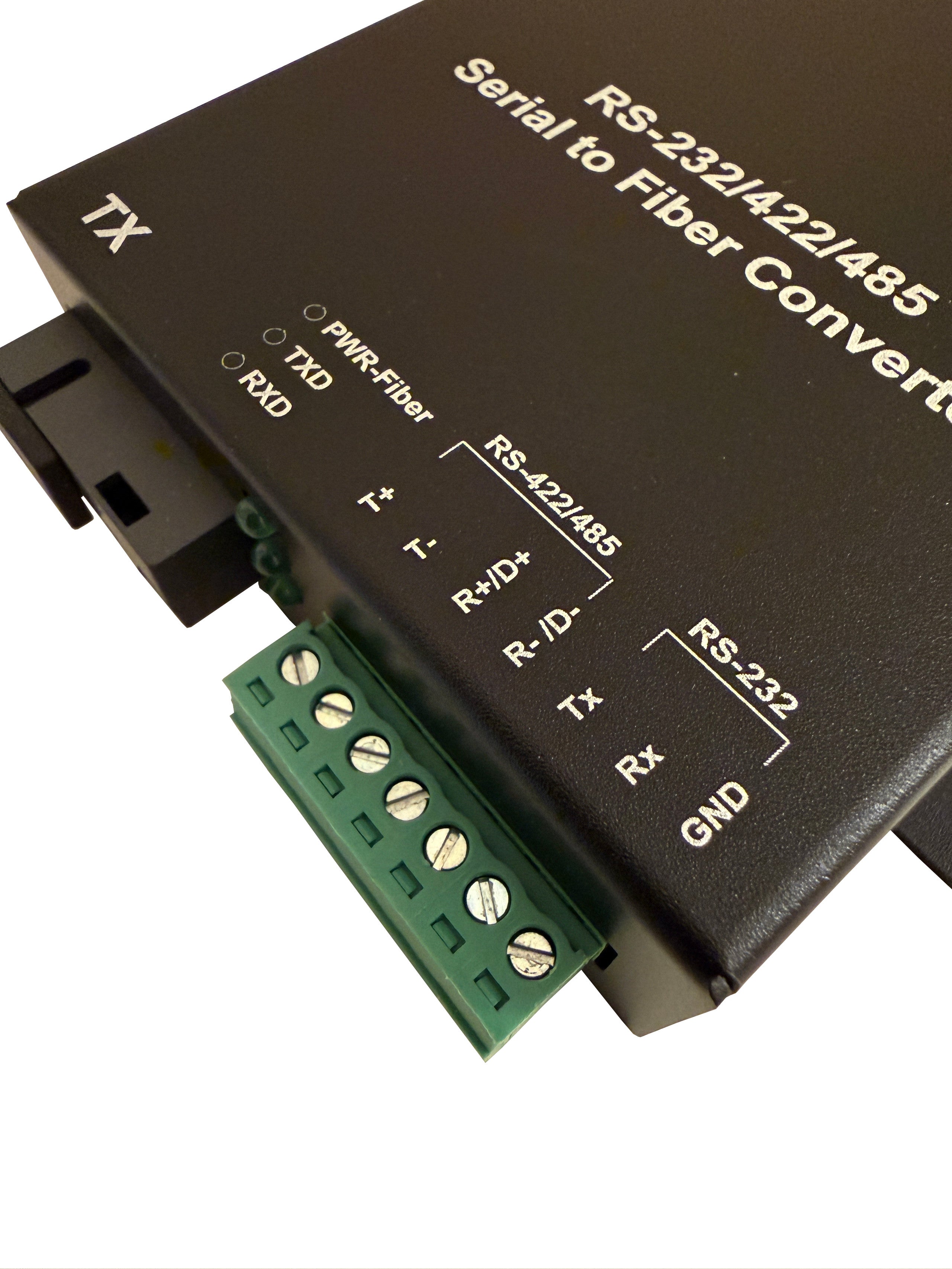

| Data Interface | 7-Pin industrial screw block |
| Baud Rate | 50 bps to 256 Kbps |
| Housing Material | Aluminum alloy |
| Dimensions | 118 x 88 x 33mm |
| Operating Temperature | -20°C to 70°C |

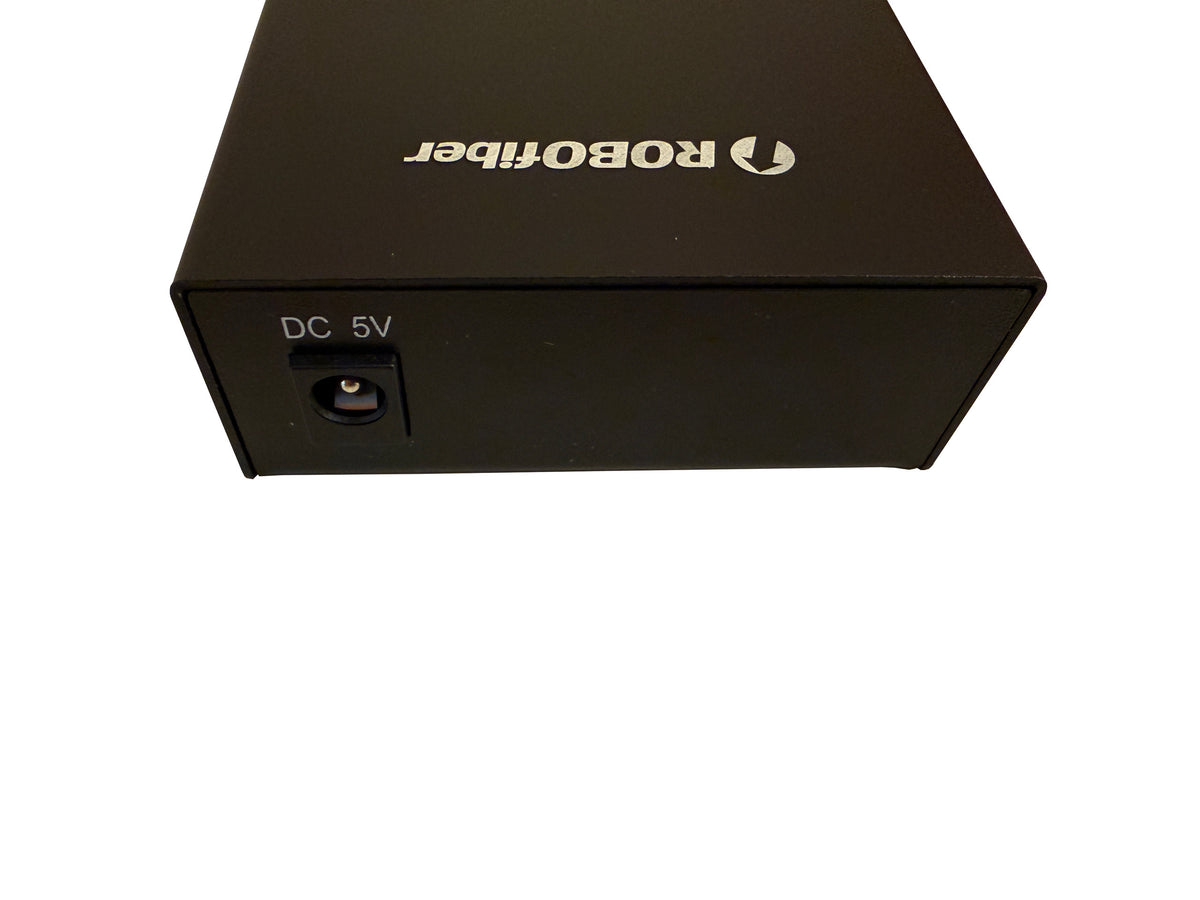

| Power Input | 5V DC (Adapters included) |
| MTBF | >100,000 hours |
Frequently Asked Questions
Does this unit support simultaneous RS-232 and RS-485?
Yes, the RB-SERIAL is designed to transport both interfaces simultaneously over the same fiber link.
How many fiber strands are required?
This system operates over a single strand of fiber optic cable (BiDi).
What is the maximum distance for multi-mode fiber?
The maximum distance supported over multi-mode fiber is 1km (3,000 feet).
Are the power supplies included?
Yes, the set includes two AC to 5V DC wall adapters.
Can these units be mounted to a wall?
Yes, the units feature integrated mounting wings for convenient wall installation.
