Overview

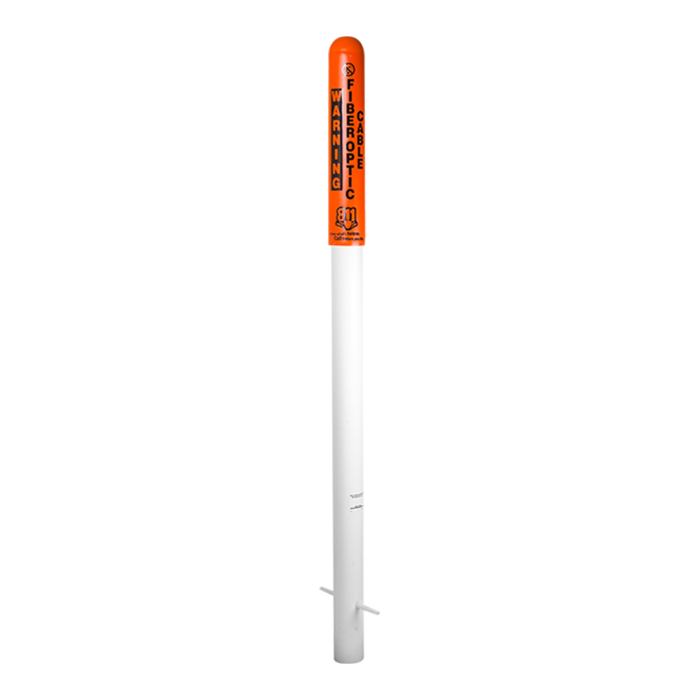

The RhinoDome 66-inch marker post is a high-visibility utility marker designed to protect critical underground fiber optic infrastructure. By providing clear, long-lasting identification, it alerts contractors and the public to the presence of buried assets, significantly reducing the risk of accidental line strikes.
Constructed from RhinoPoly, a proprietary blend of durable thermoplastics, this marker is engineered for long-term outdoor deployment. The round design offers 360-degree visibility, ensuring the warning message is easily seen from any approach in diverse field environments.
Key Features
-
RhinoPoly Construction
Manufactured from a proprietary thermoplastic blend that resists impact and environmental degradation for 10+ years. -
High-Visibility Graphics
Hot-stamped warning messages are embedded directly into the post, preventing fading or rubbing off over time. -
Round Design
Features a circular profile for consistent visibility from all angles in the field. -
Burial Depth Indicator
Includes an 18-inch bury-depth decal to ensure consistent and correct installation height. -
Wide Temperature Range
Designed to maintain structural integrity in extreme weather conditions ranging from -40°F to +150°F. -
Integrated Anchor System
Equipped with a 10-inch anchor tube to provide secure locking into the ground.
Applications
- Buried fiber optic cable identification
- Utility right-of-way marking
- Underground asset protection
- Telecommunication infrastructure sites
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Rhino |
| Part Number | RDR66WOFIBER811 |
| Total Length | 66 inches |
| Outside Diameter | 5 inches |
| Dome Topper Size | 21 inches |
| Anchor Tube Length | 10 inches |
| Operating Temperature | -40°F to +150°F |
| Material | RhinoPoly Thermoplastic |
| Warranty | 10 Years |
Frequently Asked Questions
Is the message permanent?
Yes, the graphics are hot-stamped directly into the material to ensure the warning remains visible throughout the product lifespan.
Can the topper be replaced?
Yes, the dome topper is designed to be retrofitted onto existing posts.
Does it include an anchor?
Yes, each unit features a 10-inch anchor tube specifically for locking the post into the ground.
What is the burial depth?
The marker includes an 18-inch bury-depth decal to assist with proper installation.
Can this handle extreme cold?
Yes, the material is rated for performance down to -40°F.
