Overview

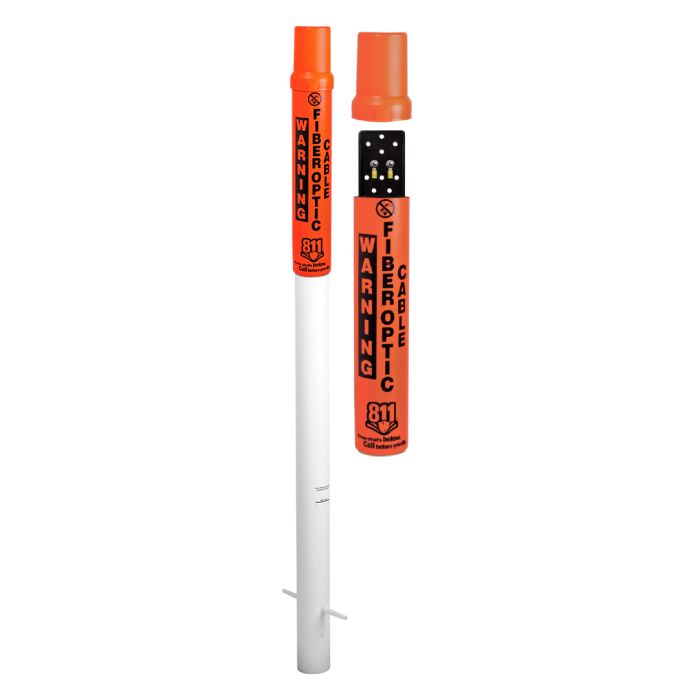

The RhinoDome™ 78-inch Test Station is a high-visibility marker post engineered for durable identification of underground infrastructure. Designed to withstand harsh environmental conditions, it utilizes a proprietary RhinoPoly® thermoplastic blend that resists fading, cracking, and degradation from intense UV exposure for over 10 years.
This unit features a round dome profile for 360-degree visibility and comes equipped with an industry-standard 11-hole terminal board, facilitating efficient cable management and testing. It is constructed for long-term outdoor deployment with a secure 10-inch anchor tube system to ensure stability in the ground.
Key Features
-
RhinoPoly® Construction
Proprietary thermoplastic blend designed to resist environmental degradation and ensure structural integrity. -
High-Visibility Round Dome
The round design offers superior 360-degree visibility for quick location identification in the field. -
Temperature Resilience
Rated for operational performance in environments ranging from -40 to +150°F. -
Long-Term Durability
Engineered for a 10+ year service life with resistance to sunlight-induced fading and cracking. -
Terminal Board
Includes an industry-standard 11-hole terminal board to support organized connection and testing requirements. -
Secure Ground Anchoring
Features a 10-inch anchor tube to maintain post stability and prevent unauthorized extraction.
Applications
- Buried fiber optic cable identification
- Underground utility marking
- Telecommunications infrastructure sites
- Pipeline and conduit monitoring
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Rhino Markers |
| Model | Rhinodome |
| Post Height | 78 inches |
| Outside Diameter | 3.5 inches |
| Material | RhinoPoly® Thermoplastic |
| Operating Temperature | -40 to +150°F |
| Terminal Board | 11-hole |
| Anchor Tube Length | 10 inches |
Frequently Asked Questions
What is the expected lifespan of the Rhinodome?
The marker is designed for 10+ years of outdoor service life.
Can the marker withstand extreme temperatures?
Yes, it is rated for performance in temperatures ranging from -40°F to +150°F.
Is the graphic permanent?
Yes, the graphic is hot-stamped directly into the post for maximum visibility and wear resistance.
Does it come with an anchor system?
Yes, it includes a 10-inch anchor tube for ground stability.
How many terminals does the board have?
It includes an industry-standard 11-hole terminal board.
