Overview

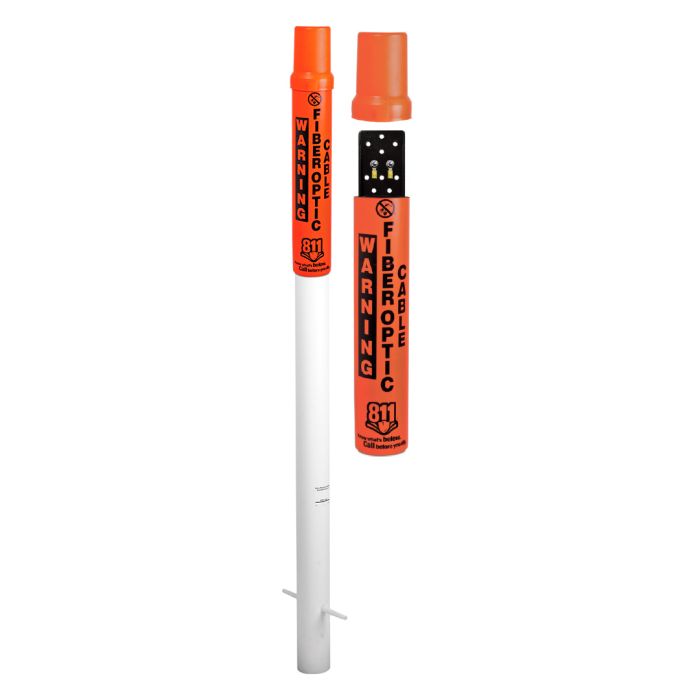

The Rhinodome 84” Test Station is a professional-grade marker post designed for the reliable identification and protection of underground fiber optic infrastructure. Its round profile ensures high visibility from all angles, serving as a clear warning to prevent accidental damage during excavation and maintenance activities.
Constructed from RhinoPoly®, a proprietary blend of high-performance thermoplastics, the Rhinodome is engineered to withstand harsh outdoor conditions. It is UV-stabilized to prevent fading and cracking under direct sunlight and is rated for operation across a wide temperature range of -40 to +150°F, ensuring long-term utility in diverse climates.
The unit features a 21” dome topper with a removable cap for easy access and includes a 10” anchor tube to secure the post firmly in the ground. This test station is equipped with an industry-standard 11-hole terminal board, making it an essential component for utility marking and testing applications.
Key Features
-
RhinoPoly® Construction
Made from a proprietary blend of thermoplastics for high durability and resistance to environmental stress. -
High-Visibility Round Design
The round dome profile provides excellent visibility from all directions to maximize safety awareness. -
Integrated Warning Graphics
Caution messages are hot-stamped directly into the post to ensure they remain legible throughout the product lifecycle. -
Wide Temperature Rating
Designed to perform effectively in environments ranging from -40 to +150°F. -
Extended Service Life
UV-stabilized material prevents cracking and fading for 10+ years of outdoor use. -
11-Hole Terminal Board
Features an industry-standard terminal configuration for versatile connectivity. -
Secure Anchor System
Includes a 10” anchor tube that locks the post securely into the soil.
Applications
- Underground fiber optic cable marking
- Utility right-of-way identification
- Test station access points
Technical Specifications
| Specification | Value |
|---|---|
| Model | Rhinodome 84" |
| Total Height | 84 inches |
| Outside Diameter | 3.5 inches |
| Material | RhinoPoly® Thermoplastic |
| Terminal Board | 11-hole industry standard |
| Operating Temperature | -40 to +150°F |
| Warranty | 10-year |
Frequently Asked Questions
Is the graphic permanent?
Yes, the caution message is hot-stamped into the post for long-lasting visibility.
How is the unit anchored?
It includes a 10-inch anchor tube designed to lock the post into the ground.
Can it withstand harsh winters?
Yes, the material is rated for temperatures as low as -40°F.
What is the terminal board capacity?
It features an 11-hole terminal board compliant with industry standards.
What is the life expectancy?
The product is designed for 10+ years of outdoor use.
Downloads
