Overview
The RhinoDome Test Station is a high-visibility marker post engineered for durable outdoor utility and fiber optic infrastructure identification. Its rounded design provides superior visibility from all angles, ensuring clear identification of buried assets. The post is constructed from RhinoPoly, a proprietary blend of thermoplastics specifically formulated to resist environmental stressors, including direct sunlight, cracking, and fading over an extended operational life.

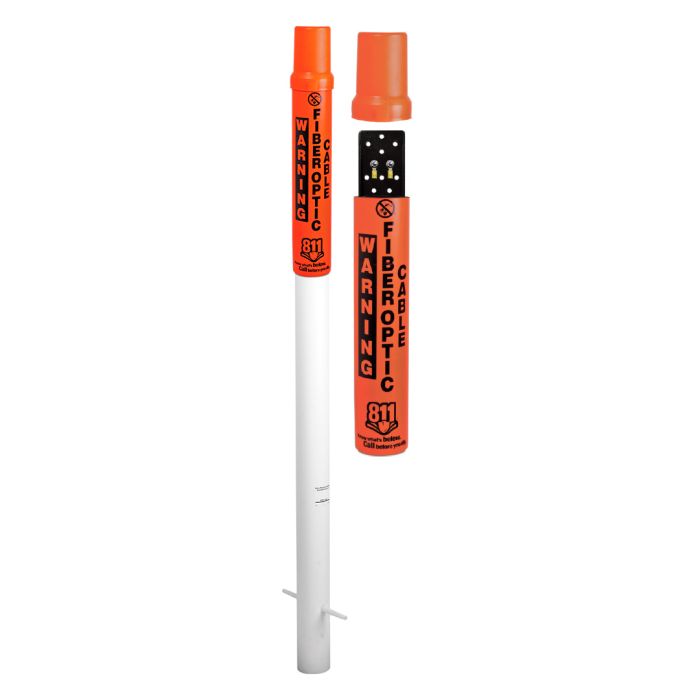

Designed for long-term field use, this test station includes a 96-inch post, a 21-inch dome topper with a removable cap, and a 10-inch anchor tube for secure ground installation. The unit is equipped with an industry-standard 11-hole terminal board and features hot-stamped graphic warnings that are integrated directly into the material for permanent legibility in harsh environments.
Key Features
-
RhinoPoly Construction
Proprietary thermoplastic blend designed to withstand prolonged UV exposure and extreme weather. -
Hot-Stamped Graphics
Warning messages are permanently stamped into the post to prevent fading or removal over time. -
High-Visibility Design
Round dome profile ensures clear visual identification of buried fiber lines from any direction. -
11-Hole Terminal Board
Industry-standard configuration supports efficient connection and testing of buried fiber conductors. -
Wide Operating Temperature
Capable of performance in extreme conditions ranging from -40 to +150°F. -
Secure Anchor System
Included 10-inch anchor tube provides a stable, locking connection to the ground.
Applications
- Buried fiber optic cable marking
- Utility asset identification
- Telecom infrastructure protection
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Rhino |
| Model | Rhinodome |
| Height | 96 Inches |
| Outside Diameter | 3.5 Inches |
| Material | RhinoPoly Thermoplastic |
| Terminal Board | 11-hole |
| Operating Temperature | -40°F to +150°F |
| Design Life | 10+ Years |
Frequently Asked Questions
What is the purpose of the 11-hole terminal board?
The terminal board provides a standardized interface for connecting, testing, and managing the buried fiber conductors at the marker location.
How long are the graphics expected to last?
The hot-stamped graphics are designed to resist fading and cracking for a minimum of 10 years in direct sunlight.
What materials is the post made of?
It is constructed from RhinoPoly, a proprietary blend of thermoplastics developed for high impact and weather resistance.
Is the post suitable for cold climates?
Yes, the marker is rated for performance in temperatures as low as -40°F.
How is the unit installed in the ground?
The marker includes a 10-inch anchor tube which is used to lock the post securely into the soil.
