Overview

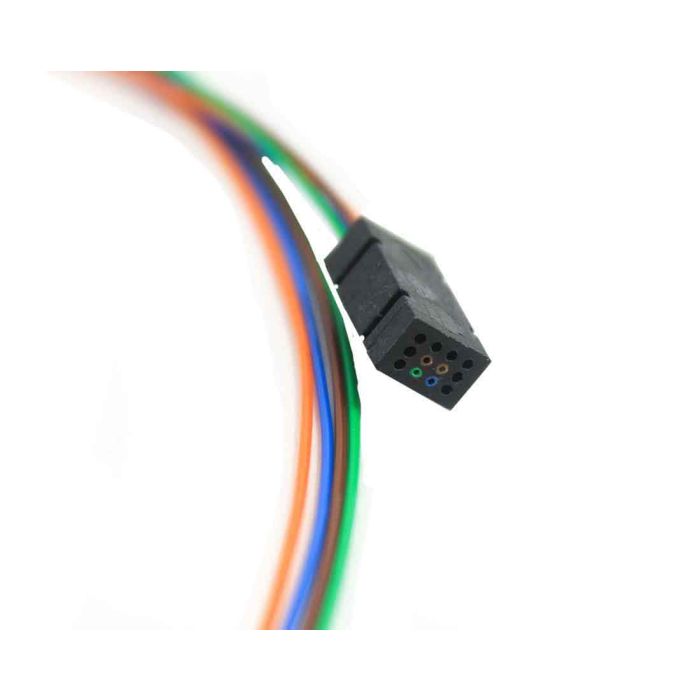

The 4-fiber ribbon and buffer tube fan-out kit is designed to provide a simplified and efficient transition from standard buffer tubes or ribbon cables to 900µm buffered fibers. By organizing and protecting exposed fibers, this kit facilitates easier termination and connectivity in professional fiber optic installations.
This kit features a robust snap-together housing that allows for quick assembly and easy reentry if future maintenance or reconfiguration is required. Engineered for versatility, the kit includes specialized adapters to accommodate various round cable configurations, including both loose buffer tubes and ribbon cables, making it a comprehensive solution for diverse cabling environments.
Key Features
-
Versatile Cable Compatibility

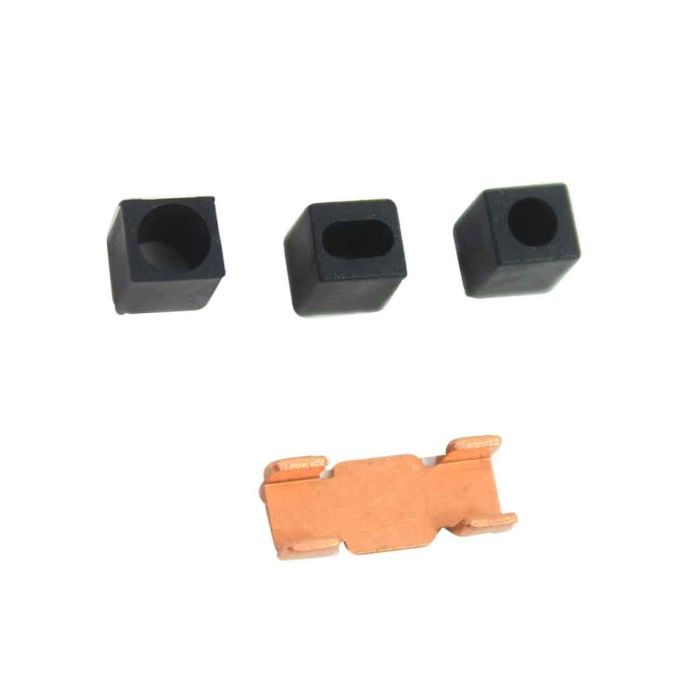

Adapters are included to support both buffer tubes and ribbon cable configurations, ensuring broad application support. -
Snap-Together Housing
The intuitive design enables rapid assembly and supports easy reentry for field maintenance or re-terminations. -
Industry Standard Color Coding
The 900µm Hytrel tubing follows industry-standard color codes for quick and accurate fiber identification. -
4-Fiber Configuration
Pre-configured specifically for 4-fiber applications to minimize installation time and complexity. -
Protective Hytrel Tubing
Utilizes durable 36-inch lengths of 900µm tubing to provide mechanical protection for 250µm fibers. -
Simple Breakout
Streamlines the process of transitioning from backbone cables to individual connectorized fibers.
Applications
- Central office and data center fiber distribution
- Fiber optic patch panel management
- Transitioning ribbon or loose tube cables for termination
- Building entry and riser fiber management
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F1BF0436M |
| Fiber Count | 4 |
| Tubing Length | 36 inches |
| Tubing Outer Diameter | 900µm |
| Compatible Fiber Size | 250µm |
| Housing Design | Snap-together (Re-enterable) |
| Material | Hytrel (Tubing) |
Frequently Asked Questions
Is this kit re-enterable?
Yes, the housing features a snap-together design that allows the user to unsnap the unit for reentry or maintenance.
What fiber sizes does this kit accept?
This kit is designed to accept 250µm fibers for fan-out.
Does this kit support ribbon cables?
Yes, the kit includes adapters to accommodate both round buffer tubes and ribbon cables.
What is the length of the tubing?
This specific kit includes 36-inch lengths of 900µm tubing.
Are the tubes color-coded?
Yes, the tubing follows industry-standard color coding to simplify fiber identification during installation.
