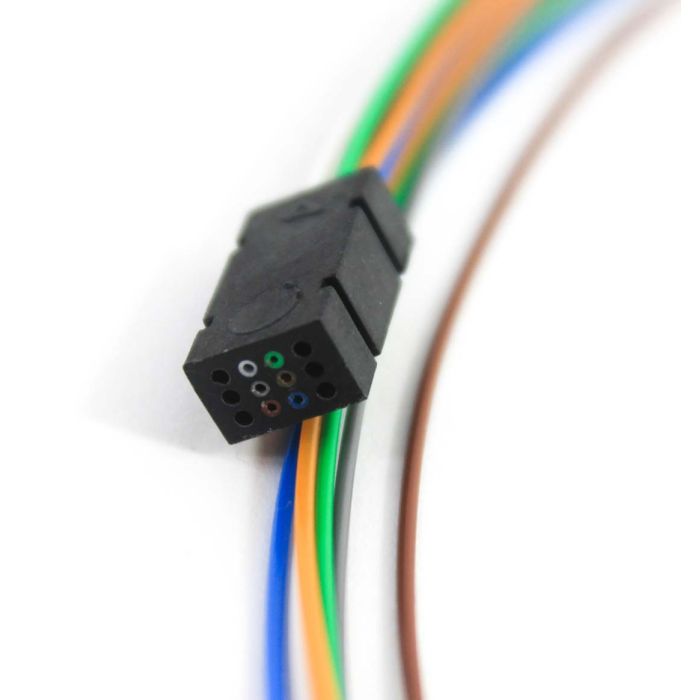

Ribbon/Buffer Tube Fan-Out Kit 6 Fiber Color Coded 36" Tubing Length Accepts 250um

Overview

The Ribbon/Buffer Tube Fan-Out Kit is engineered to provide a simple, secure method for breaking out standard buffer tubes or ribbon cables into individual 900µm buffered fibers. This kit is essential for transitioning high-density cable structures to connectorized interfaces in data center, telecommunications, and enterprise networking environments.

Constructed with a snap-together design, the kit allows for easy installation and provides the flexibility for reentry and maintenance without damaging the fiber. Each unit includes adapters compatible with various round cable configurations, such as buffer tubes and ribbon cables, and is pre-configured for 6-fiber applications to ensure efficient and organized fiber management.

Key Features

• Snap-Together Design
  Features a modular housing that snaps together for quick assembly and enables easy reentry if adjustments or maintenance are required.
• Universal Cable Compatibility
  Includes specialized adapters to accommodate both round buffer tubes and ribbon cable configurations, reducing the need for multiple inventory styles.
• Hytrel Tubing
  Utilizes 36-inch lengths of 900µm Hytrel tubing, providing a robust protective layer for fragile bare fibers.
• Color-Coded Identification
  The tubing follows industry-standard color codes, which simplifies fiber identification and minimizes the risk of incorrect connections during termination.
• 250µm Fiber Support
  Specifically designed to accept and protect 250µm fibers, ensuring a secure transition during the fan-out process.
• Pre-Configured Application
  Engineered specifically for 6-fiber applications to allow for rapid, predictable deployment in the field.

Applications

• Data Center fiber management
• Enterprise LAN/WAN installations
• Central office/Headend termination
• Transitioning ribbon cable to patch panels

Technical Specifications

Frequently Asked Questions

Is this kit reusable?
Yes, the kit features a snap-together design that allows for reentry and reuse if necessary.

What fiber sizes does this support?
This kit is designed for 250µm fibers.

Does this include tubing?
Yes, the kit comes pre-configured with 36 inches of color-coded 900µm Hytrel tubing.

Can this be used with both ribbon and buffer tube cables?
Yes, the kit includes adapters that accommodate both round buffer tubes and ribbon cable configurations.

How many fibers can this kit handle?
This specific model is configured for a 6-fiber application.

Downloads

• Product PDF
