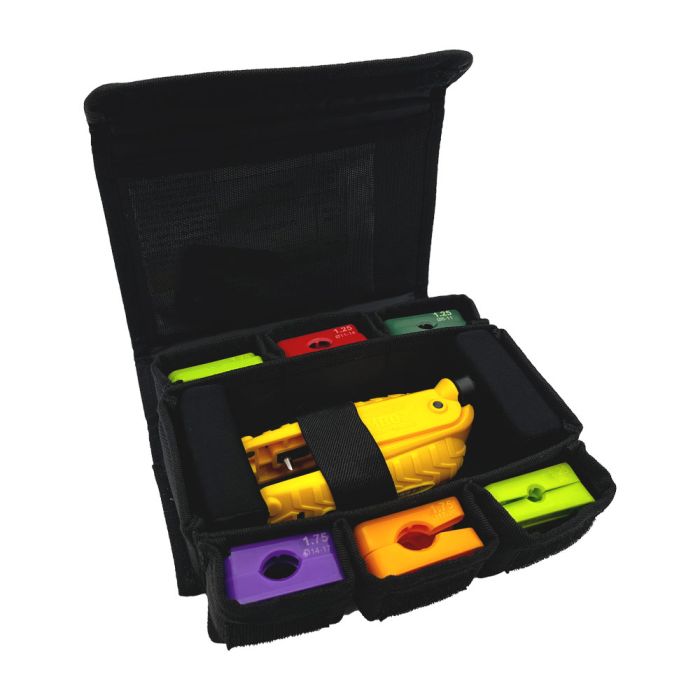

Ripley Central Tube Access Kit (6 Trays and Tool)

Overview

The Ripley Central Tube Access Kit is a comprehensive solution designed for fiber technicians requiring precise, repeatable access to central tube fiber optic cables. This kit eliminates the guesswork associated with selecting the correct blade depth and tray size, ensuring consistent performance for various cable diameters.

At the core of the kit is the MB02 ergonomic, multi-purpose cable slitter, which is engineered to perform accurate ring and longitudinal cuts on dielectric cables up to 0.79 inches in diameter. The inclusion of six specific tray inserts ensures the tool is properly configured for the specific cable jacket, facilitating clean entry without damaging the internal fibers.

Key Features

• Multi-Purpose Tooling
  Features the MB02 all-purpose cable slitter capable of both ring and longitudinal cuts on dielectric cables.
• Application Specific Trays
  Includes six distinct tray inserts matched to specific cable diameters to ensure depth accuracy.
• Ergonomic Design
  Tool architecture is built for comfortable, prolonged use in the field.
• Versatile Capacity
  Supports dielectric cables up to 0.79 inches (20 mm) in diameter.
• Organized Storage
  Ships with a 6-pocket nylon pouch to keep all components secured and accessible.
• Reduced Risk of Damage
  Correct tray selection prevents blade over-penetration into the buffer tube.

Applications

• Central tube fiber optic cable preparation
• Mid-span access
• End-of-cable stripping
• Dielectric cable jacket removal

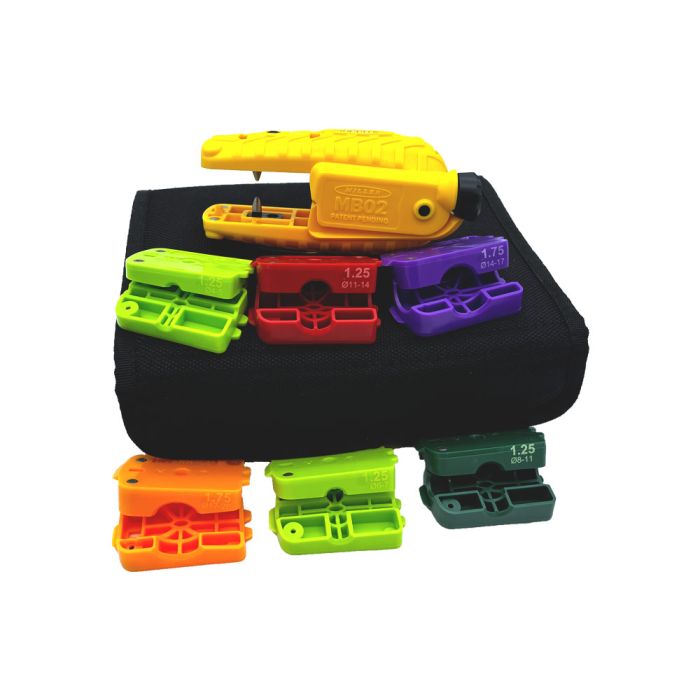

Package Contents

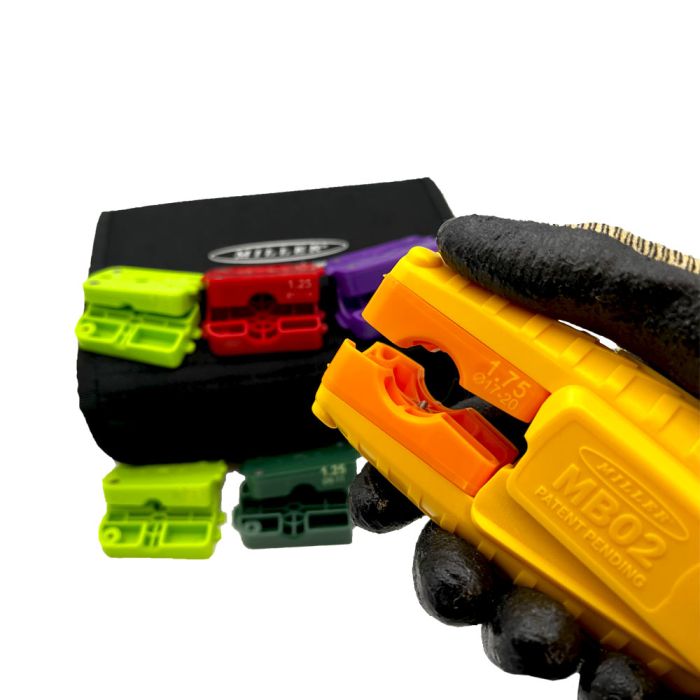

• MB02 All Purpose Cable Slitter Tool
• Tray Insert Set Lime Green (04-05mm, 1.25mm depth)
• Tray Insert Set Lime Green (06-07mm, 1.25mm depth)
• Tray Insert Set Green (08-11mm, 1.25mm depth)
• Tray Insert Set Red (11-14mm, 1.25mm depth)
• Tray Insert Set Purple (14-17mm, 1.75mm depth)
• Tray Insert Set Orange (17-20mm, 1.75mm depth)
• 6-Pocket Nylon Pouch

Technical Specifications

Frequently Asked Questions

What types of cable is this kit designed for?
It is specifically designed for general fiber optic cable with central tube construction.

Does the tool perform both ring and longitudinal cuts?
Yes, the MB02 slitter is capable of both types of cuts for versatile cable access.

Why are there six different tray sets included?
The trays are matched to specific cable diameters to ensure the blade depth is correct for each application, preventing internal fiber damage.

What is the maximum cable diameter this kit supports?
The kit supports dielectric cables up to 0.79 inches (20 mm).

Is a carrying case included?
Yes, the kit includes a 6-pocket nylon pouch for storage and transport.
