Overview

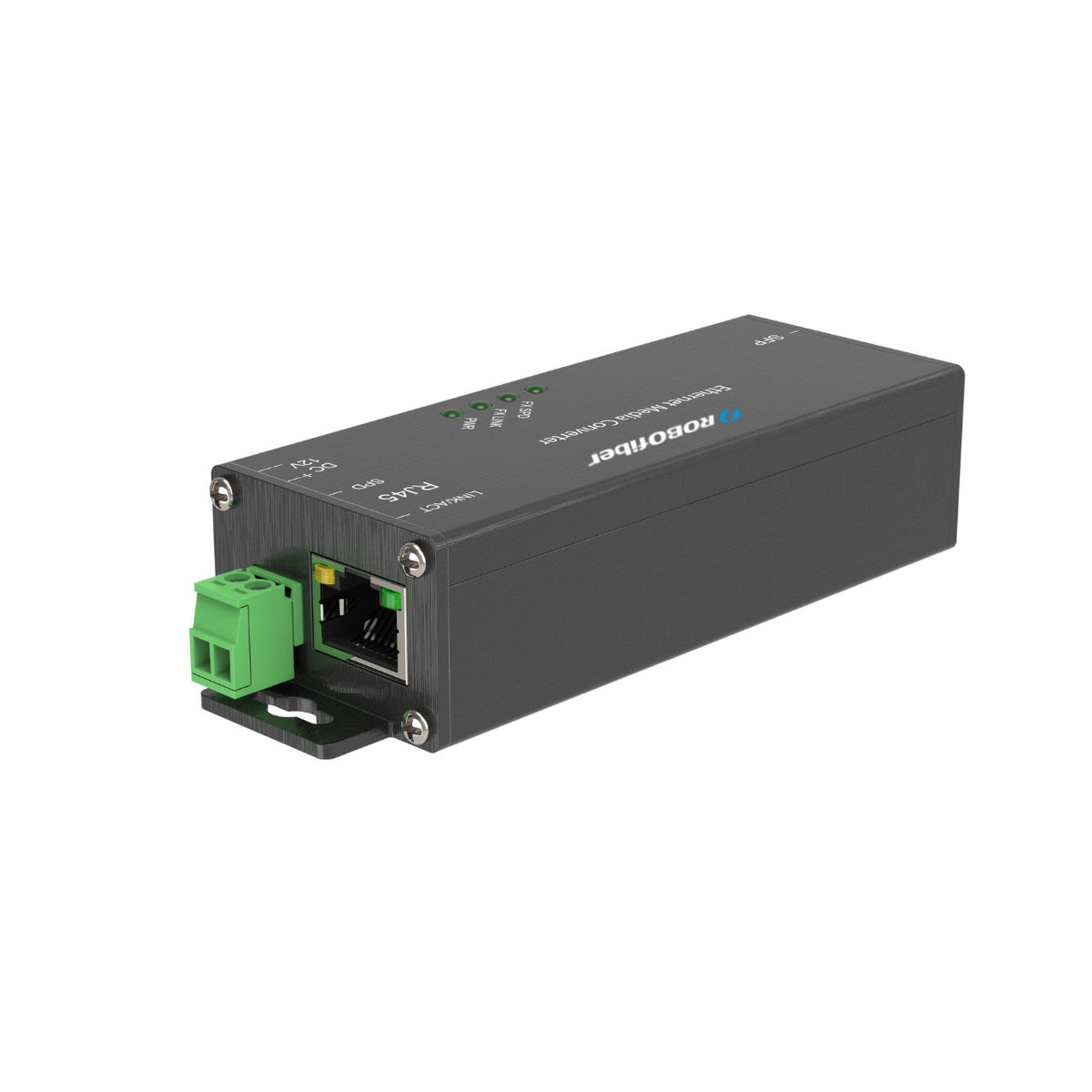

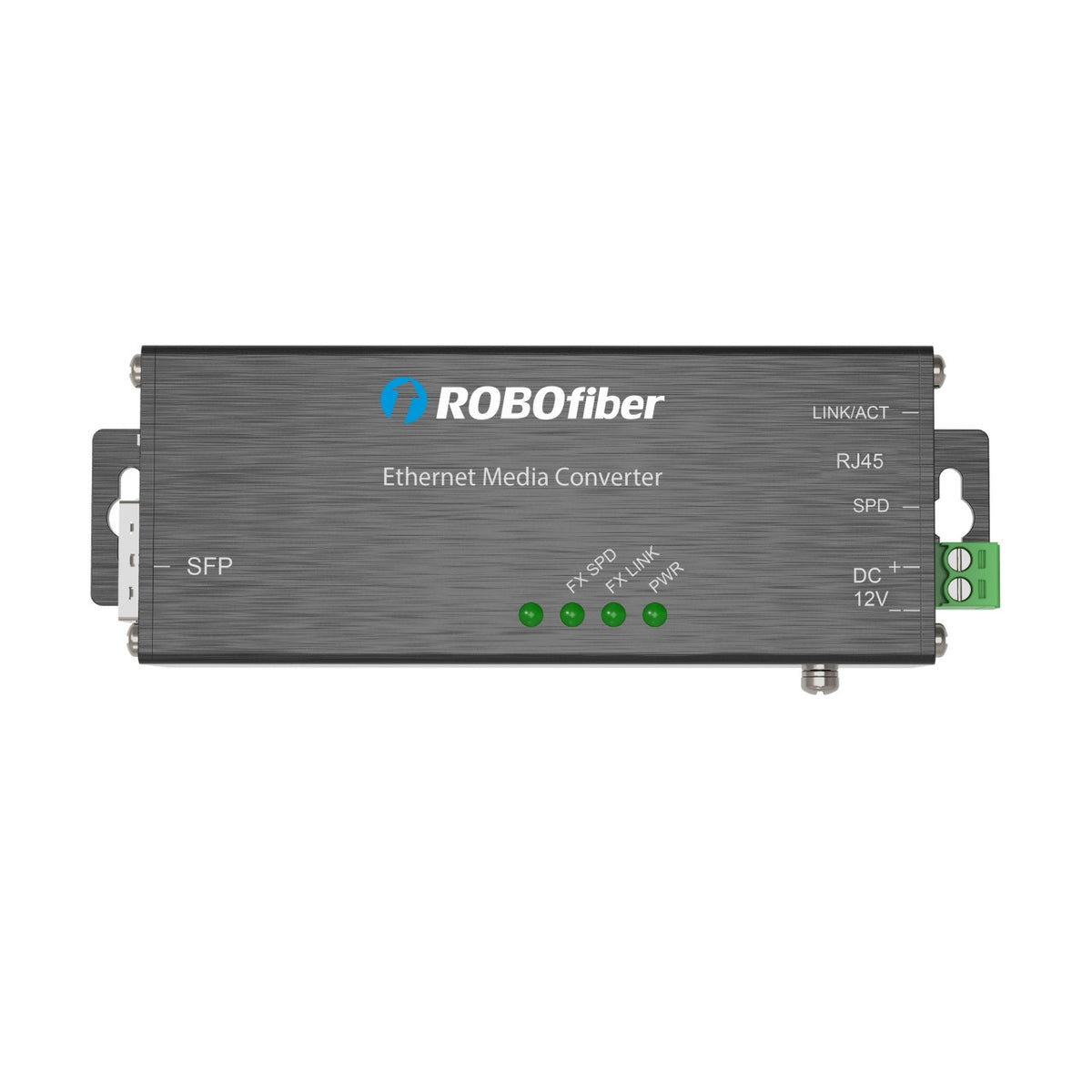

The ROBOfiber HCM-1001-SFP is a micro-sized industrial fiber media converter designed for seamless conversion between Gigabit Ethernet copper and fiber optic networks. Engineered for durability, this device supports 10/100/1000Base-T(X) to 100/1000Base-X conversion, making it a flexible solution for high-speed industrial data transmission.
Built with an IP40-rated aluminum housing, the unit is hardened to perform in extreme temperatures ranging from -30°C to +75°C. Its compact footprint makes it highly suitable for installation in space-constrained environments such as roadside cabinets, camera poles, and industrial manufacturing facilities.
Downloads
Key Features
-
Universal SFP Slot
Supports a wide range of third-party 100Mb/Gigabit SFP modules, including single-mode, multi-mode, and BiDi optics for flexible reach up to 120km. -
Hardened Industrial Design
Features an IP40-rated aluminum metal enclosure, protecting against dust and debris in harsh industrial settings. -
Extreme Temperature Tolerance
Designed to operate reliably in environments from -30°C to +75°C, ensuring stability in outdoor or non-climate-controlled locations. -
Link Fault Pass Through (LFP)

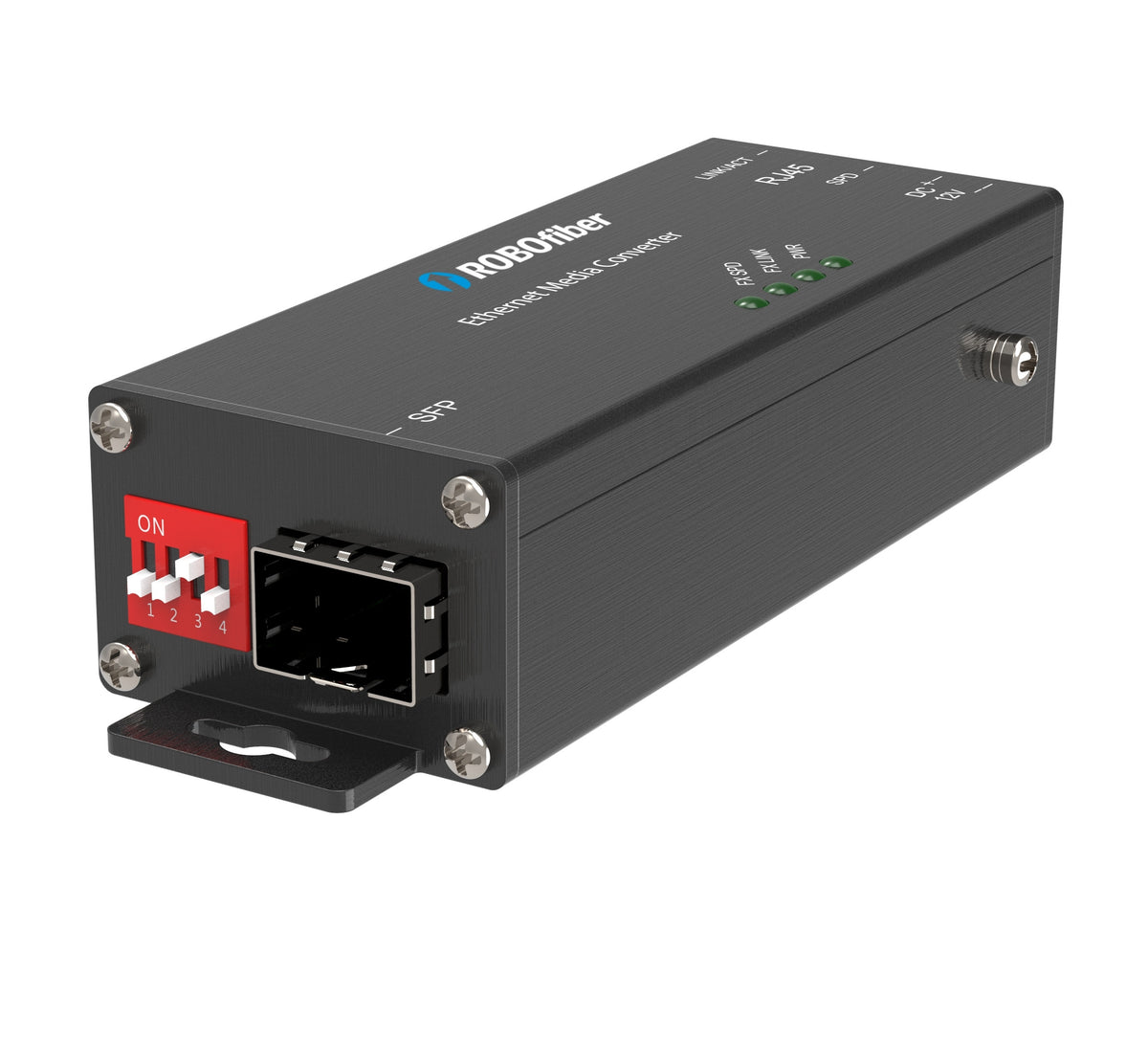

Includes DIP-switch configurable LFP and Automatic Laser Shutdown (ALS) functions to facilitate rapid network troubleshooting. -
Ultra-Compact Footprint
Measures only 36.2mm x 117mm x 24.5mm, perfect for mounting in restricted areas like roadside cabinets or internal paneling. -
Flexible Mounting Options
Equipped with fixed wall-mount wings and suitable for desktop placement to ensure secure installation on any drillable surface.
Applications
- Factory automation and control systems
- Transportation and traffic management hubs
- Outdoor surveillance camera installations
- Roadside cabinet network connectivity
- General industrial high-speed data transmission
Package Contents
- 1x Industrial Media Converter
- 1x AC to DC 12V Power Adapter
- 1x Protective Cap (for SFP slot)
- 2x Integrated Wall-Mount Wings
- 1x Quick Installation Guide
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | ROBOfiber |
| Model | HCM-1001-SFP |
| RJ45 Port | 1x 10/100/1000Base-TX |
| SFP Port | 1x 100/1000Base-X |

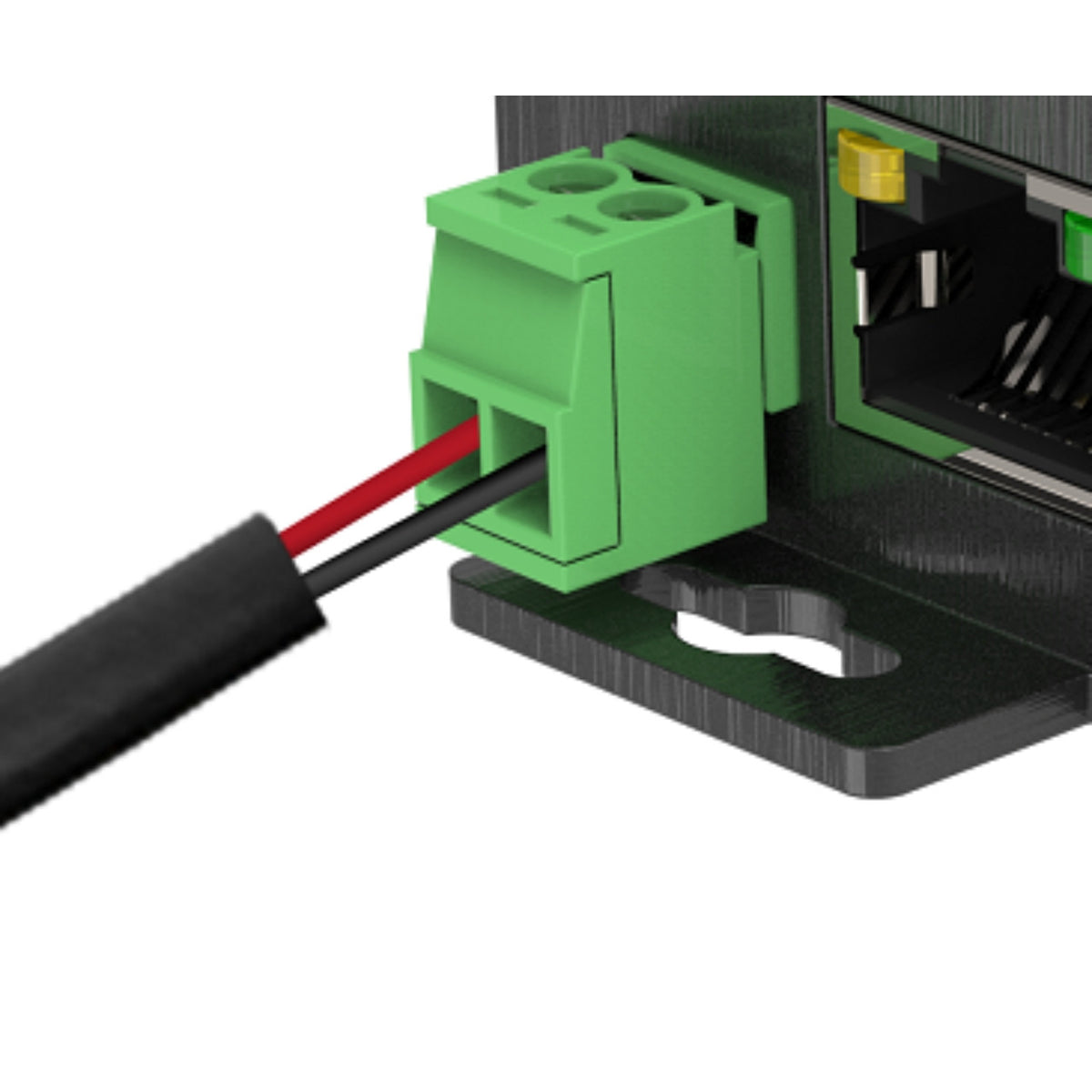

| Power Input | DC 9-56V |
| Power Consumption | 2.4W Max |
| Dimensions | 36.2mm x 117mm x 24.5mm |
| Operating Temperature | -30°C to +75°C |
| IP Rating | IP40 |
| Housing Material | Aluminum |
| Weight | 100g |
| Warranty | 3 Years |
Frequently Asked Questions
Does this unit require configuration?
No, the HCM-1001-SFP is a plug-and-play device. Configuration is only required via DIP switches for specific features like Link Fault Pass Through (LFP).
Can I use any SFP module?
The SFP slot is designed for universal deployment and supports standard third-party 100Mb/Gigabit SFP modules, including single-mode, multi-mode, and BiDi types.
What is the maximum distance supported?
The transmission distance depends on the SFP optical module installed, with support for up to 120km.
Is this device wall-mountable?
Yes, it features integrated metal wall-mount wings for easy installation on any drillable surface.
Is an external power adapter included?
Yes, the package includes an AC to DC 12V power adapter.
